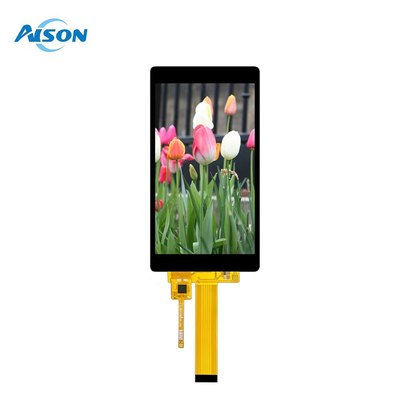

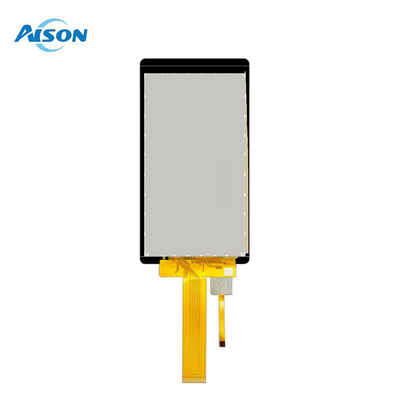

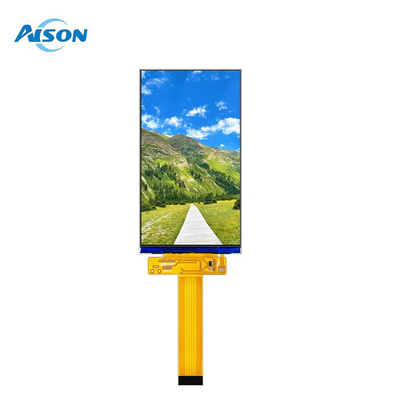

5 Inch 720x1280 HDPortrait IPS TFT LCD Display MIPI Interface

5 Inch 720x1280 HDPortrait IPS TFT LCD Display MIPI Interface
5 Inch 720x1280 HDPortrait IPS TFT LCD Display MIPI Interface 5 Inch 720x1280 HDPortrait IPS TFT LCD Display MIPI Interface 5 Inch 720x1280 HDPortrait IPS TFT LCD Display MIPI Interface 5 Inch 720x1280 HDPortrait IPS TFT LCD Display MIPI Interface 5 Inch 720x1280 HDPortrait IPS TFT LCD Display MIPI Interface

Large Image :  5 Inch 720x1280 HDPortrait IPS TFT LCD Display MIPI Interface

Product Details:
Place of Origin: Guangdong,China
Brand Name: AISON
Certification: ISO9001 / ISO14000/ROHS
Model Number: ZHD50004C30
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 10~20usd/pc
Packaging Details: Blister Package/Carton
Delivery Time: 7 working days
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 200k/month
Contact Now

5 Inch 720x1280 HDPortrait IPS TFT LCD Display MIPI Interface

Description
LCM Name: 5 Inch 720x1280 Portrait Display Number Of Dots: 720x1280
LCM Outline Size: 64.6 X117.43 X1.56mm Active Area: 61.78 (H) X 109.82 (V)mm
Interface: MIPI Brightness: 450cd/m2
Display Mode: TFT, Normally Black, Transmissive Viewing Direction: ALL/IPS
Operating Temperatures: -20 To 70 ℃ Storage Temperatures: -30 To 80 ℃
Driver IC: ILI9881C

5 Inch 720x1280 Portrait IPS TFT LCD Display MIPI Interface



Display General Description

  • Diagonal Dimension : 5.0 inch
  • Resolution : 720x1280 pixel
  • View Direction : All
  • Module Dimension : 64.6 x117.43 x1.56mm
  • Viewing Area : 61.78 (H) x 109.82 (V)mm
  • Supply Voltage : 3.3 V
  • Interface : MIPI
  • Luminance : 450 cd/m2
  • Drive IC : ILI9881C
  • Operation Temperature : -20℃~30℃
  • Storage Temperature : -30℃~80℃

The 5.0-inch IPS LCD display provides a resolution of 720×1280 pixels and is equipped with an ILI9881C driver IC that supports MIPI interface.


The 5.0-inch 720×1280 display is designed to withstand a wide range of environmental conditions and operates flawlessly in a wide temperature range from -20°C to 70°C. It also has a storage temperature range of -30°C to 80°C, ensuring durability and reliability in different environments. Our products are RoHS (Restriction of Hazardous Substances) compliant, demonstrating our commitment to environmental sustainability and safety.



General Data



Model Name 5 Inch HD TFT LCD Display
Resolution 720X1280
Model Size (W*H*T)
64.6 x117.43 x1.56mm
Display Area (W*H)
61.78 (H) x 109.82 (V)mm
Interface MIPI
Display Mode Normally Black,Transmissive
Viewing Angels 80/80/80/80
Brightness 450 cd/m2
Pin number 30
Contrast Ratio
 1000:1
BACKLIGHT TYPE 12 WHITE LED
Operating temperatures -20 to 70 ℃
Storage temperatures -30 to 80 ℃





Drawing
5 Inch 720x1280 HDPortrait IPS TFT LCD Display MIPI Interface 0





Product Details



5 Inch 720x1280 HDPortrait IPS TFT LCD Display MIPI Interface 15 Inch 720x1280 HDPortrait IPS TFT LCD Display MIPI Interface 2





TFT Applications



The 5 inch IPS LVDSTFT Displays are widely used for Industrial, Smart home,Medical, Automotive ,Intelligent and other applications.

5 Inch 720x1280 HDPortrait IPS TFT LCD Display MIPI Interface 3
