Product Details:
|
| Name: | 5.6 Inch TFT Display | Resolution: | 640x480 |
|---|---|---|---|
| Module Size: | 126.5(H) X 100(V) X 5.7(T)mm | Active Area: | 112.896(H) X84.672(V)mm |
| Interface Type: | 24 Bit RGB | Brightness: | 250cd/m2 |
| Display Mode: | Transmissive / Normally White | Aspect Ratio: | 4:3 |
| Operating Temp: | -20 ~ 70 °C | Storage Temp: | -30 ~ 80 °C |
| Contrast Ratio: | 1000:1 | ||
| Highlight: | 640x480 Industrial LCD Module Display,5.6 inch Industrial LCD Module Display,Normally White Industrial LCD Module Display |
||

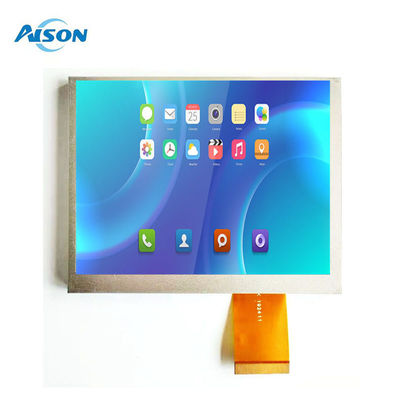

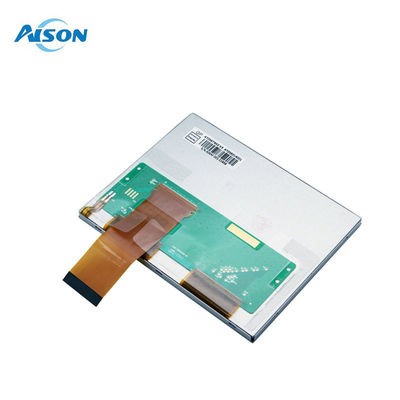

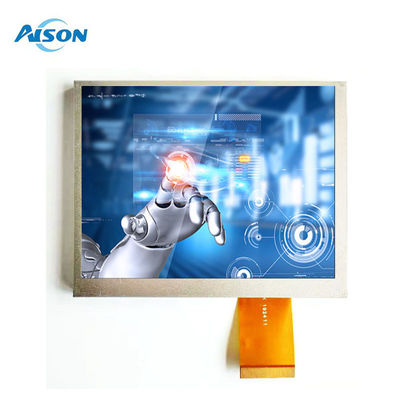

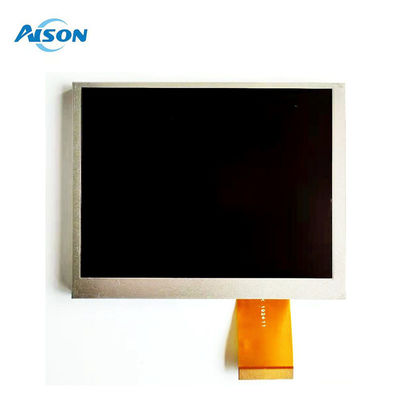

5.6 inch 640x480 Replacement for Innolux AT056TN52V.3 Industrial LCD Module Display
Display General Description
P056I640480TE-W01 is a 5.6-inch diagonal 640X480 standard TFT LCD display module. The view direction is 12 o'clock, grayscale inversion is at 6 o'clock, and the aspect ratio is 4:3.
Measuring 126.5×100 mm, with an active area of 112.896×84.672 mm,the TFT display module integrates ILI6192A-01 and ILI5481A driver ICs, supporting a 24-bit RGB Interface. Its 5.6-inch TFT LCD panel boasts a brightness of 250 cd/m2 and a contrast ratio (typical value) of 1000:1. Thanks to its anti-glare display surface, reflections are minimized, ensuring superior image quality.
This 5.6 inch lcd module features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C .It is recommend that this model be applied to Industrial, Digital Photo Frame, Video Door Phone, VOIP Phone etc.
General Data
| Model Name | 5.6 inch TFT LCD Display |
| Resolution | 640x480 |
| Model Size (W*H*T) | 126.5(H) x 100(V) x 5.7(T)mm |
| Display Area (W*H) | 112.896(H) x84.672(V)mm |
| Interface | 24 bit RGB |
| Display Mode | Normally White TN,Transmissive |
| Viewing | 12:00 o'clock |
| Brightness | 250 cd/m2 |
| Pin number | 50 |
| Drive IC | ILI6192A-01+ILI5481A |
| BACKLIGHT TYPE | 15 WHITE LED |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications
This TFT LCD module is versatile and suitable for a wide range of applications:
Mixing Consoles
Medical Monitoring Equipment
Industrial Equipment Control Panels
