Product Details:
|
| Product Name: | 3.5 Inch TFT Display | Resolution: | 320x240 |
|---|---|---|---|
| LCM Dimension: | 76.90*63.9*3.26mm | Active Area: | 70.08 X 52.56mm |
| Interface Type: | 24 Bit RGB | Luminance: | 1000cd/m2 |
| Working Temperatures: | -20 To 70 Degree | Storage Temperatures: | -30 To 80 Degree |
| Highlight: | 3.5 Inch TFT Screen Display,TFT Screen Display 320x240,54 Pin Display 1000 Nits |
||

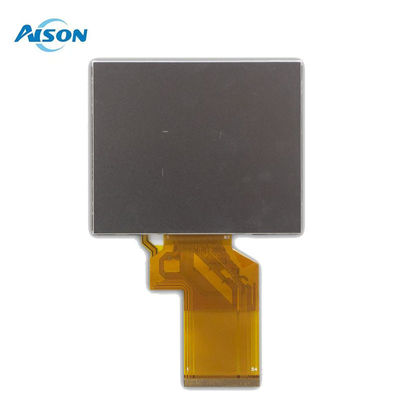

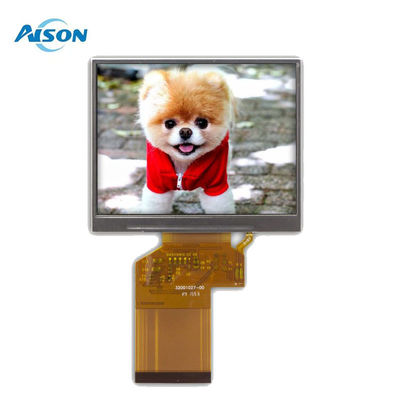

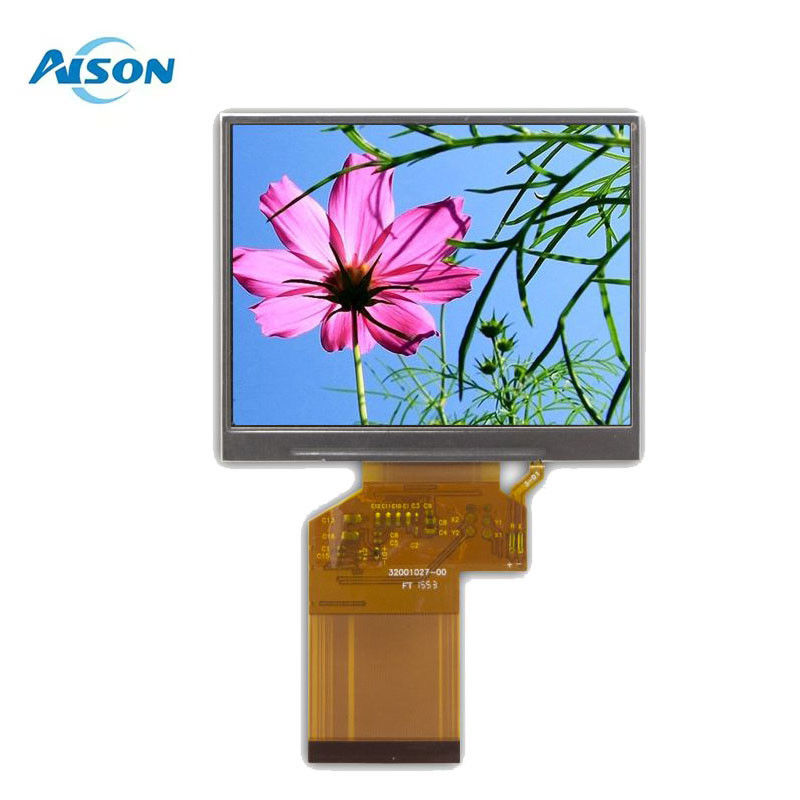

3.5 Inch TFT Display Module 320x240 54pin RGB Interface1000 Nits
The AISON TFT Z035NC111 is a versatile and high-performance color display module featuring a 3.5-inch TN TFT LCD screen with a resolution of 320x240 RGB pixels and a typical brightness of 350 cd/m². Equipped with the HX8238D driver IC, it supports a 24-bit RGB interface, ensuring compatibility with a wide range of MCUs, including 8051, PIC, AVR, ARDUINO, ARM, and Raspberry Pi.
Designed for seamless integration, the 3.5 inch TFT display Z035NC111 features a 54-pin Flexible Printed Circuit (FPC) and FPC-connector mode, enabling easy and reliable connections to your PCB's ZIF connector. This eliminates the need for complex wiring and saves valuable time during the integration process.
The 3.5 inch lcd module Z035NC111 is ideal for various applications, including embedded systems, industrial devices, security systems, medical equipment, consumer electronics, and handheld devices. Its adaptability and compatibility make it an excellent choice for a wide range of projects.
AISON Technology offers a diverse range of options tailored to your needs, including customized FPCs, integrated cover lenses, touch screens, and driver boards. Our goal is to provide you with an optimized display solution that perfectly matches your unique preferences. Additionally, we are committed to accommodating customer requests for customized demo kits, ensuring an exceptional experience with our products.
General Data of 3.5 inch LCD Module
| Product Name | 3.5 inch LCD Module |
| Number of Pixel | 320x240 |
| Interface | RGB |
| Luminance(cd/m2) | 350cd/m2 |
| Active area | 70.08 x 52.56mm |
| LCM (W x H x D) | 76.90*63.9*3.26mm |
| Viewing Direction(eye) | 12 O'clock |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing of 3.5 inch 320x240 TFT Display
Product Details of 3.5 inch LCD Module
TFT Applications of 3.5 inch TFT-LCD Module
The 3.5 inch model Z035Q08 is suitable for various applications, including embedded systems, industrial devices, security systems, medical equipment, consumer electronics, and handheld devices. Its adaptability and compatibility make it an excellent choice for a wide range of projects.
