Product Details:
|
| Name: | SPI TFT Module | Resolution: | 320x480 |
|---|---|---|---|
| Module PCB Size: | 61.74*108.04mm | Active Area: | 55.68x83.52mm |
| Interface: | SPI 4-line | Viewing Angle: | 55/65/65/65 |
| Display Mode: | TFT,Normally White | Operating Temperatures: | -20 To 70 Degree |
| Storage Temperatures: | -30 To 80 Degree | ||
| Highlight: | 320x480 SPI TFT Module,SPI TFT Module 4.0 Inch,LCD Display With Touch Screen |
||

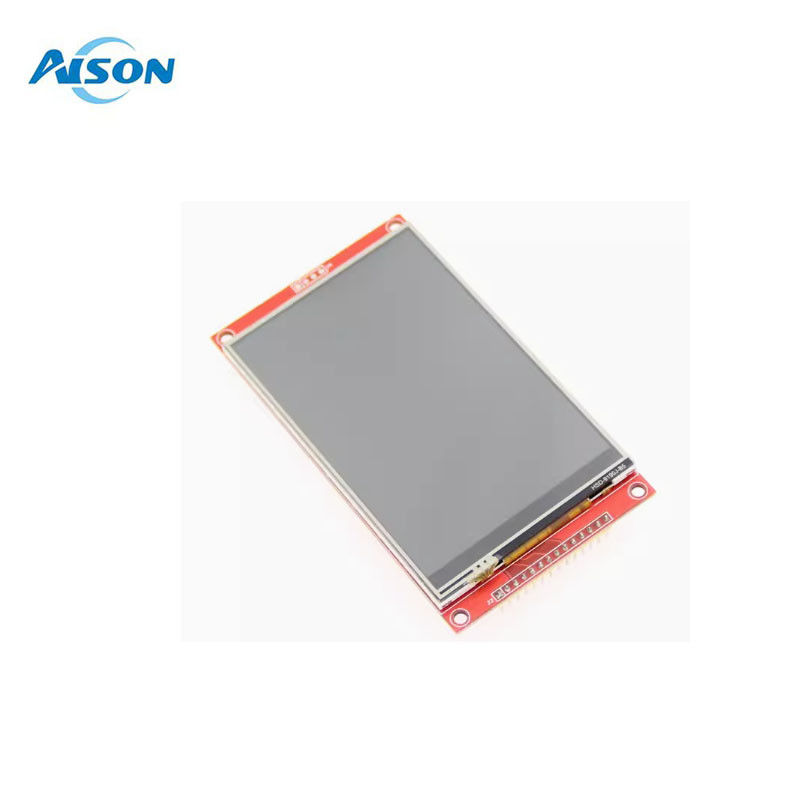

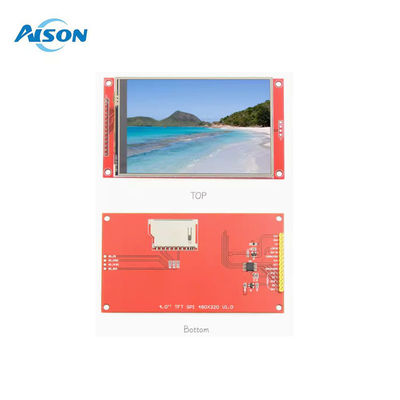

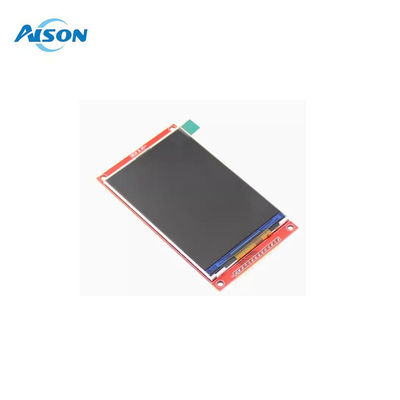

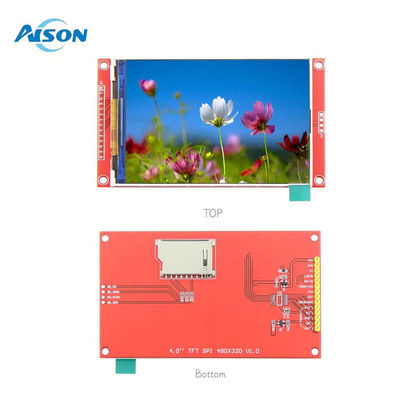

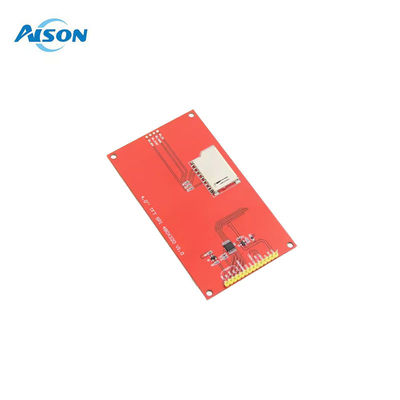

4.0 inch SPI TFT Serial LCD module 320x480 LCD display with touch ST7796S
Display General Description
* 4.0-inch color screen,support 65K color display,display rich colors
* 480X320 resolution, optional touch function
* Using the SPI serial bus, it only takes a few IOs to illuminate the display
* Easy to expand the experiment with SD card slot
* Provide a rich sample program
* Military-grade process standards, long-term stable work
* Provide underlying driver technical support
General Data
| Model Name | 4 inch SPI TFT Display |
| Resolution | 320x480 |
| Module PCB Size |
61.74*108.04mm
|
| Display Area |
55.68x83.52mm
|
| Interface | 4 Line SPI |
| Display Mode | Normally White,Transmissive |
|
Viewing angles
|
55/65/65/65 |
| Driver IC | ST7796 |
| Voltage | 3.3~5V |
|
Operating temperatures
|
-20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
| PCB Board | With |
| Touch Screen | With RTP |
