Product Details:
|
| Name: | 7 Inch TFT LCD Display | Resolution: | 1024X600 |
|---|---|---|---|
| Outline Dimension: | 164.9*100*3.5mm | Active Area: | 154.21 X 85.92mm |
| Interface: | RGB | Brightness: | 400 Cd/m2 |
| LCD Type: | TFT, Normally White, Transmissive | Contrast Ratio: | 800:1 |
| Operating Temperatures: | -20℃ To +70℃ | Storage Temperatures: | -30℃ To +80℃ |
| Highlight: | 7.0 Inch TFT LCD Display,TFT LCD Display 1024X600,TFT Touch Screen Module 50 Pin |
||

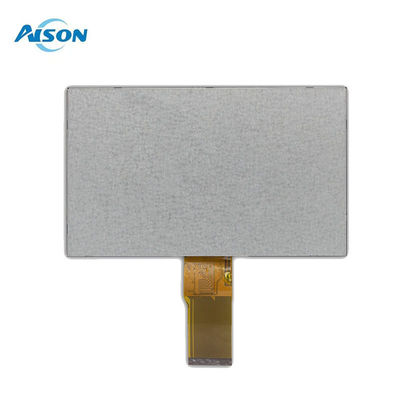

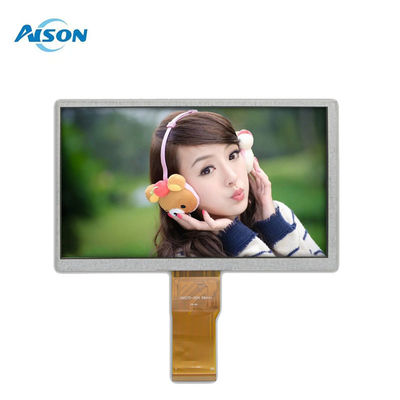

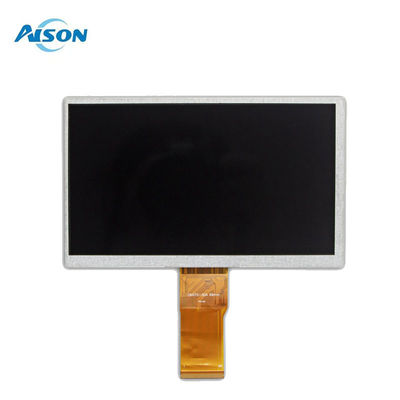

7.0 inch 1024X600 TFT LCD Module, TN Display RGB Interface 50 Pin
This 7.0-inch TFT LCD with a TN display, featuring a resolution of 1024x600 pixels and an RGB interface. This display offers reliable performance and clear visuals, making it suitable for a wide range of applications.
The display features an aspect ratio of 16:9. The power voltage (DVDD) ranges from 3.0V to 3.6V, with a typical value of 3.3V. It includes an anti-glare surface panel, with an viewing direction 75/70/75/75. The brightness ranges from 400 nits to 450 nits.
This 7 inch TFT Displays Operating temperatures range from -20°C to +70°C, with storage temperatures from -30°C to +80°C. This TFT display model is suitable for various industrial control product applications.
It is designed to be versatile and easy to integrate into various devices and systems. Its compact size and lightweight construction make it ideal for portable devices, automotive displays, home appliances, and more.
We also can offer the option of a custom solution with either a capacitive or resistive touchscreen.
General Data
| Model Name | 7 inch 1024x620 TFT Display |
| Resolution | 1024x600 mm |
| Model Size (W*H*T) | 164.9*100*3.5 mm |
| Display Area (W*H) | 154.21 x 85.92 |
| Interface | RGB |
| Display Mode | Normally White,Transmissive |
| Viewing | 12 o'clock |
| Brightness | 400 cd/m2 |
| Pin number | 50 pin |
| Contrast Ratio | 800:1 |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications:
This 7 inch TFT LCD module is well-suited for applications in industrial control equipment, testing devices, medical equipment, and smart home devices, among others. Due to its versatility, this TFT LCD module is suitable for a variety of application scenarios.
