Product Details:
|
| Name: | 5.6 Inch RGB TFT Display Module | Resolution: | 640x480 |
|---|---|---|---|
| Outline Dimension: | 126.5(H) X 100(V) X 5.7(T)mm | Active Area: | 112.896(H) X84.672(V)mm |
| Interface: | 24 Bit RGB | Brightness: | 250cd/m2 |
| Display Mode: | Transmissive / Normally White | Contrast Ratio: | 1000:1 |
| Operating Temperature: | -20 ~ 70 °C | Storage Temperature: | -30 ~ 80 °C |
| Highlight: | 250cd/m2 TFT LCD Display,5.6 Inch LCD Screen,LCD Screen 640x480 |
||

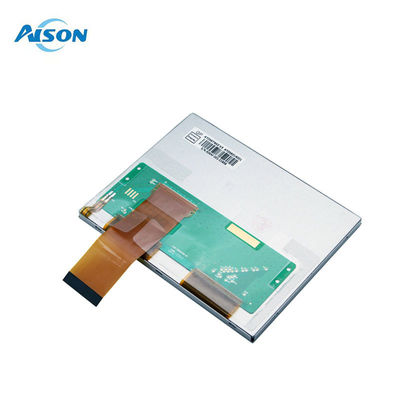

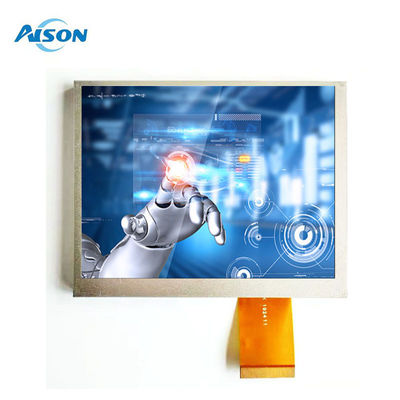

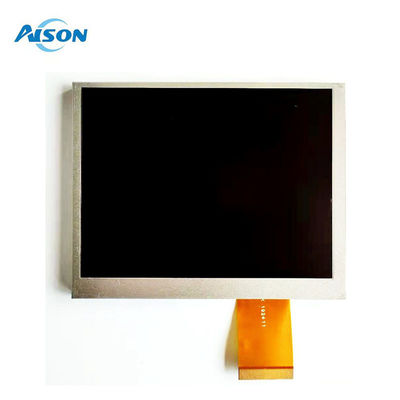

5.6 inch AT056TN52 Replacement 640x480 Industrial-grade TFT Display RGB 50 Pin 250cd/m2
Display General Description
P056I640480TE-W01 is 5.6 inch industrial-grade TFT LCD display, featuring a sharp resolution of 640x480 pixels. The view direction is 12 o'clock, grayscale inversion is at 6 o'clock, and the aspect ratio is 4:3.With an contrast ratio of 1000:1, it excels in rendering deep blacks and vibrant colors, ensuring a visually striking experience. It's completely same with AT056TN52V.3
Measuring 126.5×100 mm, with an active area of 112.896×84.672 mm,the TFT display module integrates ILI6192A-01 and ILI5481A driver ICs, supporting a 24-bit RGB Interface.Operating within a temperature range of -20 to +70℃, and with a storage temperature spanning from -30 to +80℃, this module is built to withstand diverse environmental conditions.
General Data
| Model Name | 5.6 inch TFT LCD Display |
| Resolution | 640x480 |
| Model Size (W*H*T) | 126.5(H) x 100(V) x 5.7(T)mm |
| Display Area (W*H) | 112.896(H) x84.672(V)mm |
| Interface | 24 bit RGB |
| Display Mode | Normally White TN,Transmissive |
| Viewing | 12:00 o'clock |
| Brightness | 250 cd/m2 |
| Pin number | 50 |
| Drive IC | ILI6192A-01+ILI5481A |
| BACKLIGHT TYPE | 15 WHITE LED |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications
This TFT LCD module is versatile and suitable for a wide range of applications:
Mixing Consoles
Medical Monitoring Equipment
Industrial Equipment Control Panels
