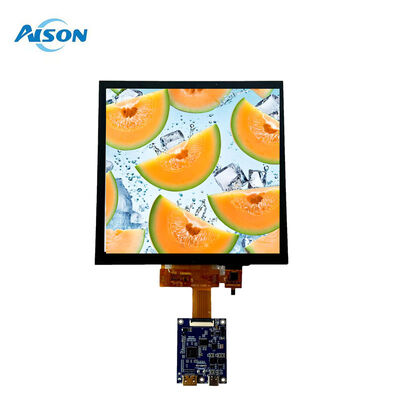

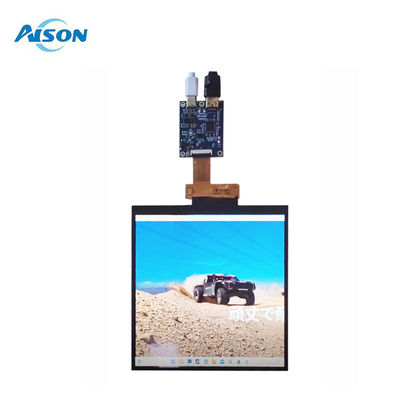

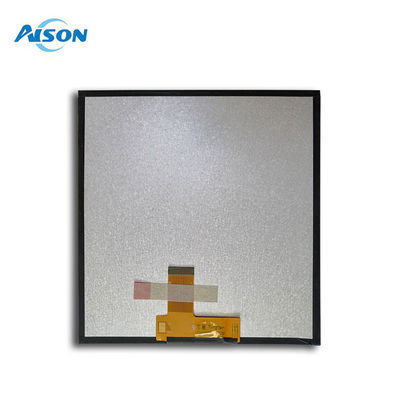

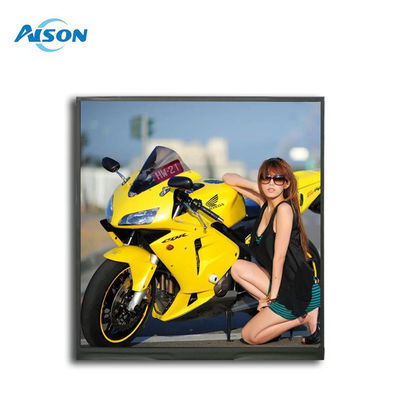

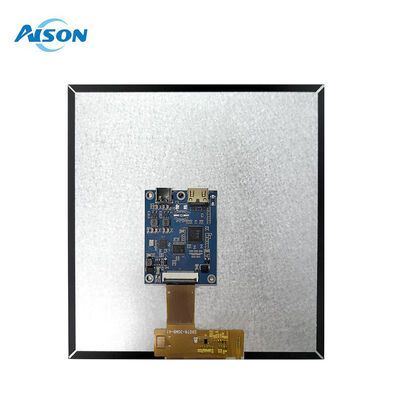

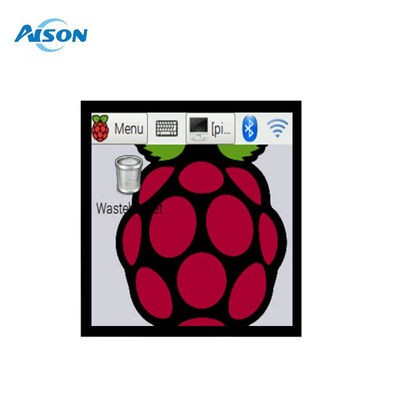

7.6Inch 800*800 Square TFT LCD Display Screen With Capacitive Touch Screen for Raspberry Pi 5

Large Image : 7.6Inch 800*800 Square TFT LCD Display Screen With Capacitive Touch Screen for Raspberry Pi 5

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	AISON
Certification:	ISO9001 / ISO14000/ROHS
Model Number:	Z076-30MB-B1

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Blister Package/Carton
Delivery Time:	7 working days
Payment Terms:	T/T
Supply Ability:	100k/month

Contact Now

7.6Inch 800*800 Square TFT LCD Display Screen With Capacitive Touch Screen for Raspberry Pi 5

Description

Name:	7.6 Inch Square TFT LCD Display	Resolution:	1200X1200
Outline Dimension:	142.56 (H)148.24 (V)5.1(D)	Active Area:	135.36 (H)* 135.36 (V)
Interface:	MIPI	Viewing Angle:	80/80/80/80
Brightness:	1000cd/m2	Display Mode:	Normally Black
Driver IC:	ILI9881C	Operating Temperatures:	-20℃~ +70℃
Storage Temperatures:	-30℃~ +80℃	HDMI Board:	Available
Touch:	Captouch Available
Highlight:	7.6 inch square TFT LCD display , 800x800 capacitive touch screen , Raspberry Pi 5 compatible display

7.6Inch 800*800 Square TFT LCD Display With Capacitive Touch Screen for Raspberry Pi 5

Display General Description

This 7.6 inch square lcd module is equipped with the ILI9881C driver IC and supports MIPI interface.

It has a high 1200x1200 RGB pixel resolution on a black background, delivering an exceptional visual experience.
The module's high brightness 1000cd/m2 ensures clear visibility in various lighting conditions, providing optimal viewing comfort.

It can be operating at temperatures from -20℃ to +70℃ and storage temperatures from -30℃ to +80℃.

General Data

Item	Specifications
Type	IPS
Module Size	7.6 Inch
Dimensional outline	142.56(H)148.24(V)5.1(D)
Active area	135.36 (H)*135.36(V)
Resolution	800*800
Interface	MIPI
Pixel pitch	36.5(H) x 109.5(V)
Pixel Arrangement	RGB Vertical Stripe
Driver IC	ILI9881C
Brightness	1000cd/m2
Display Color	16.7M
Viewing direction	Free
Operating Temperature	-20°C ~ 70°C
Storage Temperature	-30°C ~ 75°C
Supplier Type	Manufacturer

Drawing

7.6Inch 800*800 Square TFT LCD Display Screen With Capacitive Touch Screen for Raspberry Pi 5 0

Product Details

7.6Inch 800*800 Square TFT LCD Display Screen With Capacitive Touch Screen for Raspberry Pi 5 2

TFT Applications

This square TFT LCD panel is particularly well-suited for industrial control systems, portable measurement instruments, outdoor display systems, and home automation panels.The 7.6 inch square form factor makes it a versatile display solution for a variety of compact and portable devices.
