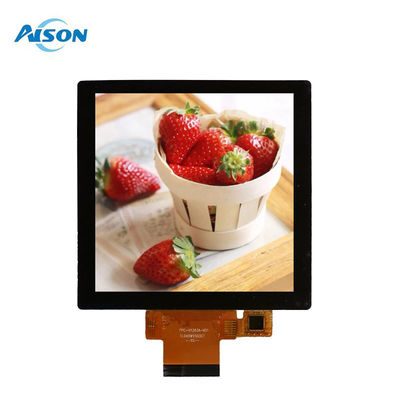

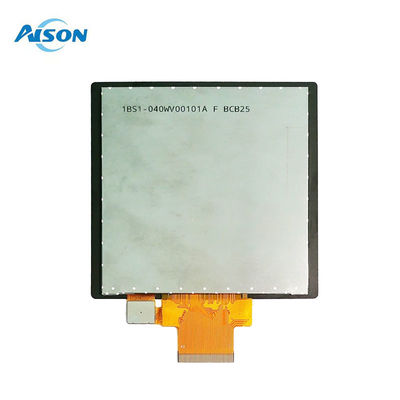

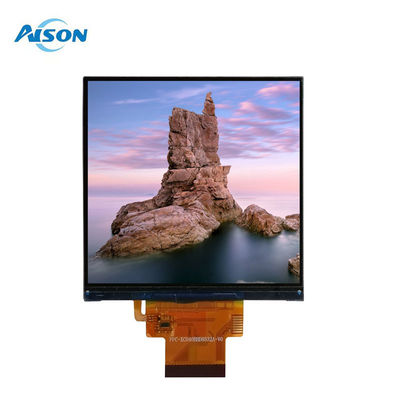

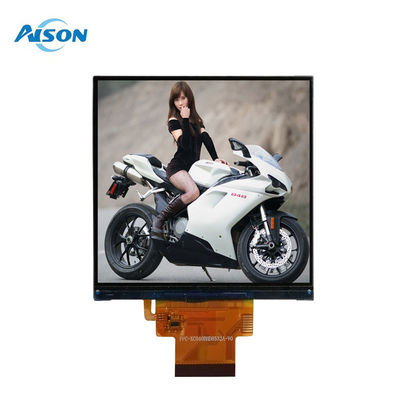

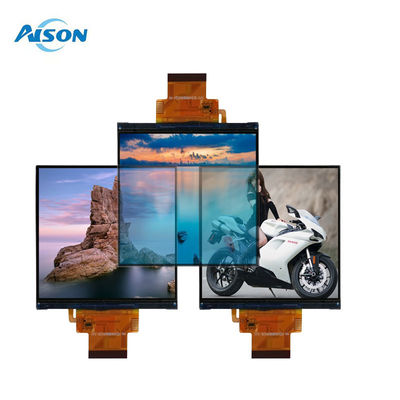

4 Inch Square TFT LCD Display 480x480 Square TFT Touch Display 300 cd/m2 3SPI+RGB Interface

4 Inch Square TFT LCD Display 480x480 Square TFT Touch Display 300 cd/m2 3SPI+RGB Interface
4 Inch Square TFT LCD Display 480x480 Square TFT Touch Display 300 cd/m2 3SPI+RGB Interface 4 Inch Square TFT LCD Display 480x480 Square TFT Touch Display 300 cd/m2 3SPI+RGB Interface 4 Inch Square TFT LCD Display 480x480 Square TFT Touch Display 300 cd/m2 3SPI+RGB Interface 4 Inch Square TFT LCD Display 480x480 Square TFT Touch Display 300 cd/m2 3SPI+RGB Interface 4 Inch Square TFT LCD Display 480x480 Square TFT Touch Display 300 cd/m2 3SPI+RGB Interface

Large Image :  4 Inch Square TFT LCD Display 480x480 Square TFT Touch Display 300 cd/m2 3SPI+RGB Interface

Product Details:
Place of Origin: Guangdong,China
Brand Name: AISON
Certification: ISO9001 / ISO14000/ROHS
Model Number: Z040-40RH-A1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Blister Package/Carton
Delivery Time: 7 working days
Payment Terms: T/T
Supply Ability: 100k/month
Contact Now

4 Inch Square TFT LCD Display 480x480 Square TFT Touch Display 300 cd/m2 3SPI+RGB Interface

Description
LCM: 4 Inch Square TFT Display Resolution: 480x480
Outline Dimension: 84*84*3.05mm Active Area: 71.86*70.18 Mm
Display Interface: 3SPI+RGB Touch Interface: I2C
Luminance: 420 Cd/m2 Display Type: Normally Black
Display Driver Controller: ST7701S Working Temperatures: -20℃~ +70℃
Storage Temperatures: -30℃~ +80℃
Highlight:

4 Inch Square TFT LCD Display

,

480x480 Square TFT LCD Display

,

3SPI+RGB TFT LCD Display

4 Inch Square TFT LCD Display 480x480 Square TFT Touch Display 300 cd/m2 3SPI+RGB Interface



Display General Description

This 4 inch square lcd module is equipped with the ST7701 driver IC and supports 3SPI+RGB interface.


It has a 480x480 RGB pixel resolution on a black background, delivering an exceptional visual experience.
The module's brightness of 400cd/m2 with captouch screen ensures clear visibility in various lighting conditions, providing optimal viewing comfort.

It can be operating at temperatures from -20℃ to +70℃ and storage temperatures from -30℃ to +80℃.



General Data

Model Name 4 Inch Square TFT LCD Display
Resolution 480X480
Model Size (W*H*T)mm 84*84*3.05mm
Display Area (W*H)mm 71.86 (H) X 70.18 (V)
Interface RGB
Display Mode Normally Black,Transmissive
Viewing All/IPS
Brightness 300 cd/m2
Pin number 40
Drive IC ST7701S
Touch Capacitive Touch Panel
Operating temperatures -20 to 70 degree
Storage temperatures -30 to 80 degree



Drawing

4 Inch Square TFT LCD Display 480x480 Square TFT Touch Display 300 cd/m2 3SPI+RGB Interface 0





Product Details

4 Inch Square TFT LCD Display 480x480 Square TFT Touch Display 300 cd/m2 3SPI+RGB Interface 14 Inch Square TFT LCD Display 480x480 Square TFT Touch Display 300 cd/m2 3SPI+RGB Interface 24 Inch Square TFT LCD Display 480x480 Square TFT Touch Display 300 cd/m2 3SPI+RGB Interface 3





TFT Applications



This 4 inch square TFT LCD panel is particularly well-suited for industrial control systems, portable measurement instruments, outdoor display systems, and home automation panels.The 4 inch square form factor makes it a versatile display solution for a variety of compact and portable devices.
