Product Details:
|
| Name: | 3.95 Inch Square TFT Display | Resolution: | 480x480 |
|---|---|---|---|
| Outline Dimension: | 84.76(H) X 84.76(V) X 3.68(T)mm | Active Area: | 71.86 (H) X 70.18 (V) |
| Interface: | RGB | Viewing Angles: | 80/80/80/80 |
| Luminance: | 300 Cd/m2 | Display Type: | Normally Black |
| Driver Controller: | ST7701S | Working Temperatures: | -30℃~ +80℃ |
| Storage Temperatures: | -30℃~ +80℃ | ||
| Highlight: | 3.95 Inch Square TFT Display,Square TFT Display 480x480,Square Touch Display 300 cd/m2 |
||

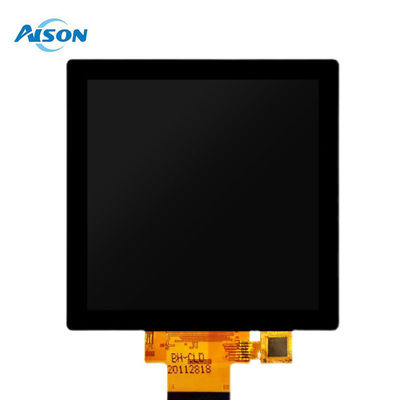

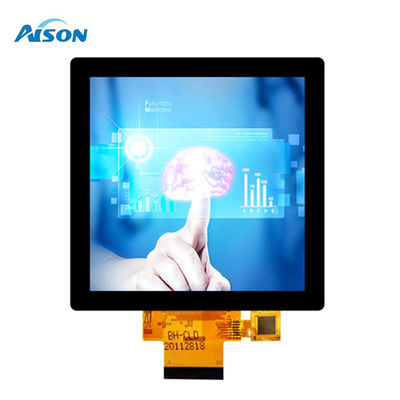

3.95 Inch Square TFT LCD Display with RGB Interface LCM Type and Capacitive Touch Panel for Smart Home
This 3.95 inch square lcd module is equipped with the ST7701 driver IC and supports MIPI interface.
It has a 480x480 RGB pixel resolution on a black background, delivering an exceptional visual experience.
The module's brightness of 300cd/m2 with captouch screen ensures clear visibility in various lighting conditions, providing optimal viewing comfort.
It can be operating at temperatures from -30℃ to +80℃ and storage temperatures from -30℃ to +80℃.
General Data
| Model Name | 3.95 Inch Square TFT LCD Display |
| Resolution | 480X480 |
| Model Size (W*H*T)mm | 84.76(H) X 84.76(V) X 3.68(T) |
| Display Area (W*H)mm | 71.86 (H) X 70.18 (V) |
| Interface | RGB |
| Display Mode | Normally Black,Transmissive |
| Viewing | All/IPS |
| Brightness | 300 cd/m2 |
| Pin number | 40 |
| Drive IC | ST7701S |
| Touch | Capacitive Touch Panel |
| Operating temperatures | -30 to 80 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications
This square TFT LCD panel is particularly well-suited for industrial control systems, portable measurement instruments, outdoor display systems, and home automation panels.The 3.95 inch square form factor makes it a versatile display solution for a variety of compact and portable devices.
