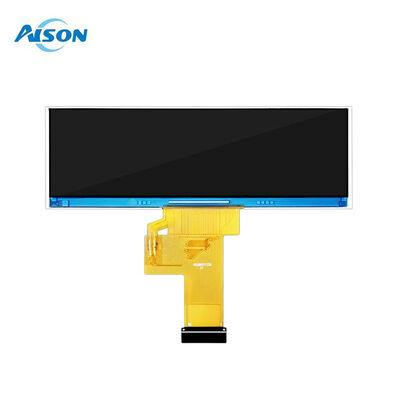

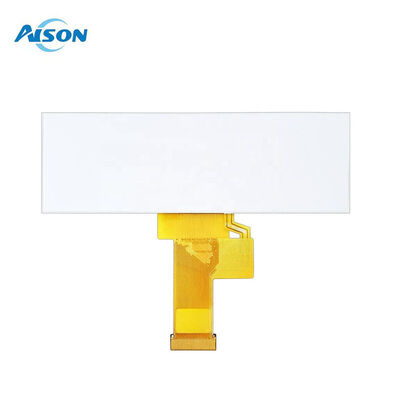

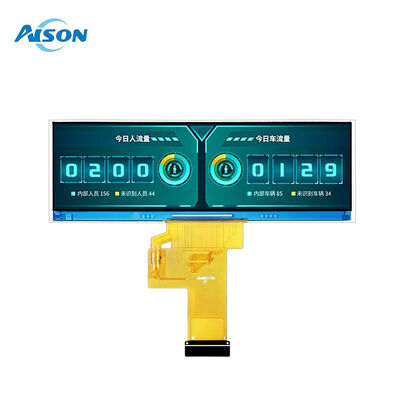

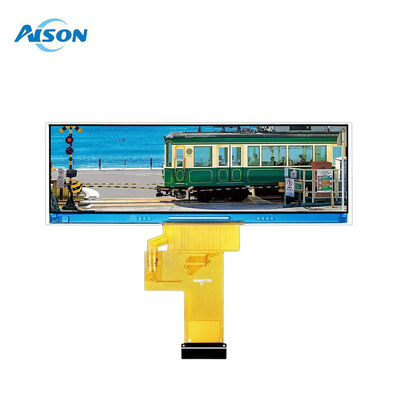

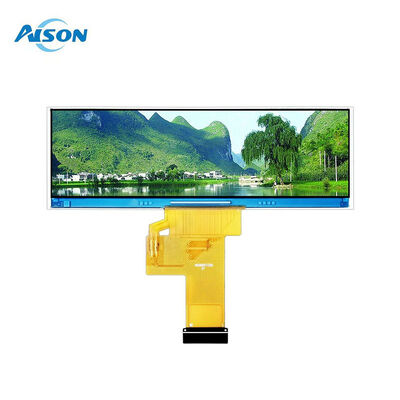

3.9 Inch Bar Type 480X128 TFT LCD Module Display With SPI MCU Interface NV3041A Driver IC

3.9 Inch Bar Type 480X128 TFT LCD Module Display With SPI MCU Interface NV3041A Driver IC
3.9 Inch Bar Type 480X128 TFT LCD Module Display With SPI MCU Interface NV3041A Driver IC 3.9 Inch Bar Type 480X128 TFT LCD Module Display With SPI MCU Interface NV3041A Driver IC 3.9 Inch Bar Type 480X128 TFT LCD Module Display With SPI MCU Interface NV3041A Driver IC 3.9 Inch Bar Type 480X128 TFT LCD Module Display With SPI MCU Interface NV3041A Driver IC 3.9 Inch Bar Type 480X128 TFT LCD Module Display With SPI MCU Interface NV3041A Driver IC

Large Image :  3.9 Inch Bar Type 480X128 TFT LCD Module Display With SPI MCU Interface NV3041A Driver IC

Product Details:
Place of Origin: Guangdong,China
Brand Name: AISON
Certification: ISO9001 / ISO14000/ROHS
Model Number: ZHD39001C30-V1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Blister Package/Carton
Delivery Time: 7 working days
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 100k/month
Contact Now

3.9 Inch Bar Type 480X128 TFT LCD Module Display With SPI MCU Interface NV3041A Driver IC

Description
Display Name: 3.9 Inch Bar Type TFT Display Resolution: 480x128
Outline Dimension: 103.20 (H) X34.85 (V)x2.4(T) Mm Active Area: 95.04 (H) X 25.34(V)
Interface: SPI/MCU Display Mode: TFT,Normally Black
Luminance: 900 D/m2 Viewing Direction: ALL/IPS
Operating Temperatures: -20 To 70 Degree Storage Temperatures: -30 To 80 Degree
Driver IC: NV3041A
Highlight:

3.9 inch bar type LCD display

,

480x128 TFT LCD module

,

SPI MCU interface LCD display

3.9 Inch Bar Type 480X128 TFT LCD Module Display With SPI MCU Interface NV3041A Driver IC



General Description

This is a new 3.9 inch Bar type color landscape IPSTFT LCD display with resolution 480x128 pixels. This 3.9" bar display offers high quality and colorful image; it is especially suitable for server system, audio system and advertising display, auto/aviation/marine equipment, POP, security equipment, Industrial equipment, outdoor intercom systems and control panels, medical equipment, drone controls.



ZHD39001C30-V1 is a transmissive type color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT-LCD module (TFT-LCD panel, driver IC and FPC), a back-light unit and. The resolution of 3.9" contains 480 RGB X128 pixels and can display up to 16.7m colors.



This 3.9 inch bar TFT is built in with Driver IC NV3041A it supports SPI/MCU interface.This 3.9'' inch TFT LCD module boasts an impressive 900 nits luminance, ensuring crisp and clear visuals in various lighting conditions. Perfect for applications where visibility is crucial.It can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.





General Data

Model Name 3.9 inch Bar LCD Module
Resolution 480x128
Model Size (W*H*T)mm 103.20 x34.85 x2.4mm
Display Area (W*H)mm
95.04 (H) x 25.34(V)
Interface SPI/MCU
Display Mode Normally Black,Transmissive
Viewing IPS
Brightness 900 cd/m2
Pin number 30 pin
Contrast Ratio
 1200:1
Operating temperatures -20 to 70 degree
Storage temperatures -30 to 80 degree





Drawing



3.9 Inch Bar Type 480X128 TFT LCD Module Display With SPI MCU Interface NV3041A Driver IC 0





Product Details

3.9 Inch Bar Type 480X128 TFT LCD Module Display With SPI MCU Interface NV3041A Driver IC 13.9 Inch Bar Type 480X128 TFT LCD Module Display With SPI MCU Interface NV3041A Driver IC 2







TFT Applications:

This 3.9" bar display offers high quality and colorful image; it is especially suitable for server system, audio system and advertising display, auto/aviation/marine equipment, POP, security equipment, Industrial equipment, outdoor intercom systems and control panels, medical equipment, drone controls.



3.9 Inch Bar Type 480X128 TFT LCD Module Display With SPI MCU Interface NV3041A Driver IC 3





Tag:

LCD Bar Screen,

Stretched Bar LCD Display,

Stretched Display Screen
