3.9 Inch 480x128 40 Bar TFT Display Medical TFT Display RGB Interface

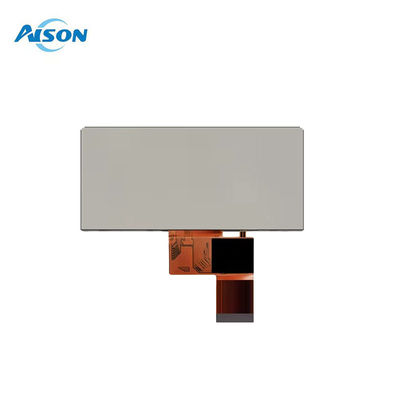

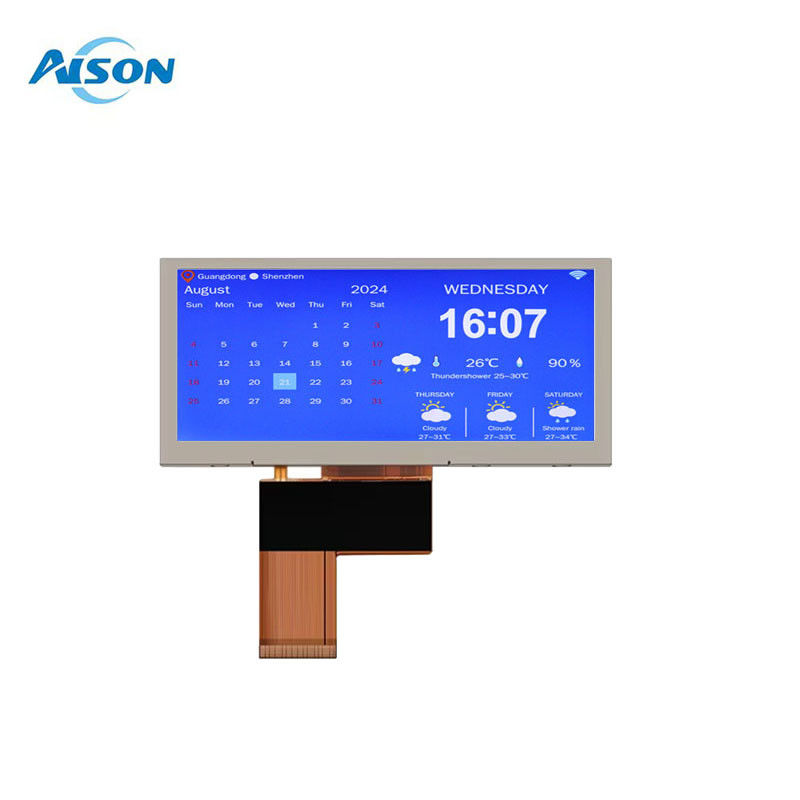

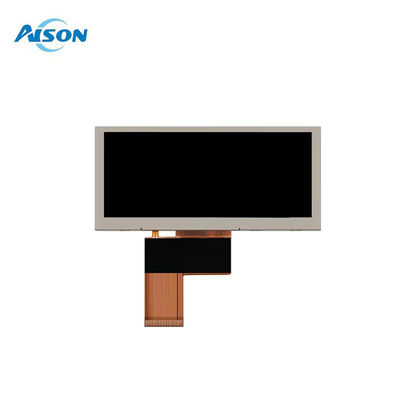

Large Image : 3.9 Inch 480x128 40 Bar TFT Display Medical TFT Display RGB Interface

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	AISON
Certification:	ISO9001 / ISO14000/ROHS
Model Number:	Z039WQ03

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Blister Package/Carton
Delivery Time:	7 working days
Payment Terms:	T/T, Western Union, MoneyGram,Paypal
Supply Ability:	100k/month

Contact Now

3.9 Inch 480x128 40 Bar TFT Display Medical TFT Display RGB Interface

Description

Name:	3.9 Inch 480x128 40 Bar TFT Display	Resolution:	480x128
Outline Dimension:	105.540.612.9mm	Active Area:	95.04 X 25.344 Mm
Interface:	RGB	Display Mode:	TFT,Normally Black
Brightness:	500 Cd/m2	Viewing Direction:	ALL/IPS
Operating Temperatures:	-20 To 70 Degree	Storage Temperatures:	-30 To 80 Degree
Highlight:	40 Pin LCD Bar Display , LCD Bar Display 3.9 Inch , Medical TFT Display 480x128

3.9 inch Bar TFT LCD Screen 480*128 IPS RGB 40Pin Interface

General Description

High Brightness and Clarity: This 3.9'' inch TFT LCD module boasts an impressive 500 nits luminance, ensuring crisp and clear visuals in various lighting conditions.
Wide Viewing Angle: The IPS display technology provides an excellent viewing experience, allowing users to enjoy the content from almost any angle without compromising on color accuracy or brightness.
Customizable and Versatile: With a 480x128 RGB interface, this module can be easily integrated into various systems and applications, making it an ideal choice for developers and engineers.
Long-Term Reliability: Our manufacturer guarantees a continuous supply of this product, ensuring that customers can rely on a steady source of high-quality LCD modules for their projects.
Compact and Space-Efficient Design: The 3.9 inch display size makes it an excellent choice for applications where space is limited, such as in industrial control panels, medical devices, or other compact systems.
Wide temperatures:It can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

General Data

Model Name	3.9 inch Bar TFT
Resolution	480x128
Model Size (WHT)mm	105.540.612.9mm
Display Area (W*H)mm	95.04 x 25.344 mm
Interface	RGB
Display Mode	Normally Black,Transmissive
Viewing	IPS
Brightness	500 cd/m2
Pin number	40 pin
Contrast Ratio	600:1
Operating temperatures	-20 to 70 degree
Storage temperatures	-30 to 80 degree

Drawing

3.9 Inch 480x128 40 Bar TFT Display Medical TFT Display RGB Interface 0

Product Details

3.9 Inch 480x128 40 Bar TFT Display Medical TFT Display RGB Interface 2

TFT Applications:

Product Application:

Industrial device
Measurement tool
Car Monitor
White Goods
Home Appliance
Smart home controller
Intelligent vehicle display terminals
Rear-view mirror

3.9 Inch 480x128 40 Bar TFT Display Medical TFT Display RGB Interface 4
