Product Details:
|
| Name: | 3.9 Inch Landscape Bar Type LCD Display | Resolution: | 480x128 |
|---|---|---|---|
| Outline Dimension: | 105.5*40.61*2.9mm | Active Area: | 95.04 X 25.344 Mm |
| Interface: | SPI /8080-MCU | Display Mode: | TFT,Normally Black |
| Brightness: | 500 Cd/m2 | Operating Temperatures: | -20 To 70 Degree |
| Storage Temperatures: | -30 To 80 Degree | ||
| Highlight: | 3.9 Inch Bar Type LCD Display,Bar Type LCD Display 480x128,Medical LCD Display High Brightness |
||

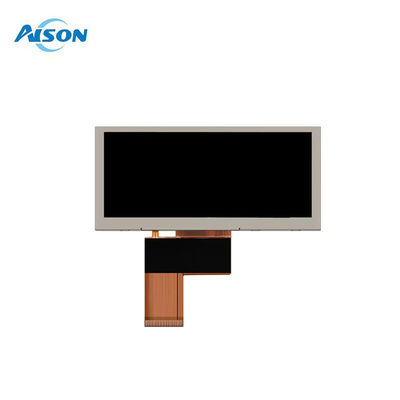

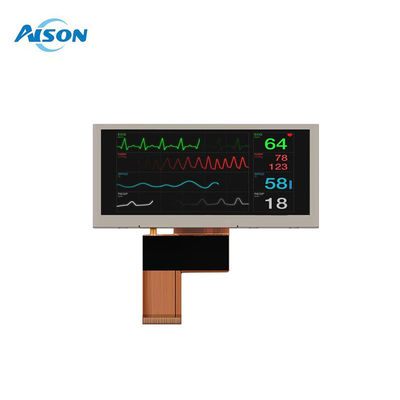

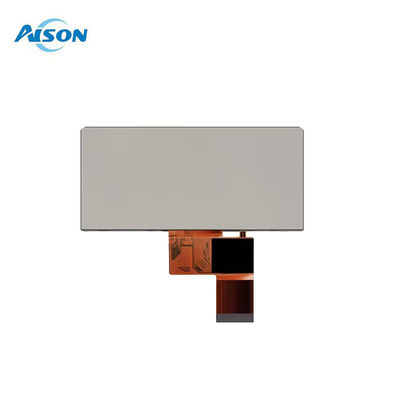

High Brightness 3.9 inch Stretch Bar Display 480x128 SPI interface
General Description
General Data
| Model Name | 3.9 inch Bar Type LCD Display |
| Resolution | 480x128 |
| Model Size (W*H*T)mm | 105.5*40.61*2.9mm |
| Display Area (W*H)mm |
95.04 x 25.344 mm
|
| Interface | SPI /8080-MCU |
| Display Mode | Normally Black,Transmissive |
| Viewing | IPS |
| Brightness | 500 cd/m2 |
| Pin number | 40 pin |
|
Contrast Ratio
|
600:1 |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications:
The module operates in temperatures ranging from -20℃ to +70℃, and can be stored in temperatures from -30℃ to +80℃. With the demand for custom projects going up every day, the bar type TFT market is growing correspondingly. The 3.9 inch display size makes it an excellent choice for applications where space is limited, such as in industrial control panels, medical devices, or other compact systems.
