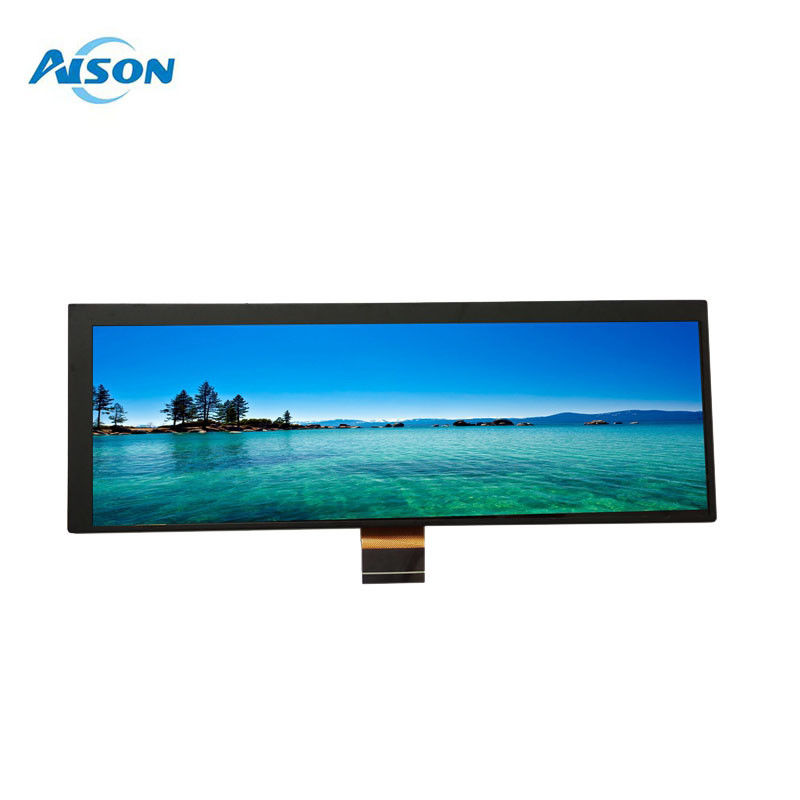

8 Inch 1600x480 Ultra Wide LCD Display Stretched Bar LCD Player 40 pin

Large Image : 8 Inch 1600x480 Ultra Wide LCD Display Stretched Bar LCD Player 40 pin

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	AISON
Certification:	ISO9001 / ISO14000/ROHS
Model Number:	Z800-5.4BL0215-24A

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Blister Package/Carton
Delivery Time:	7 working days
Payment Terms:	T/T, Western Union, MoneyGram,Paypal
Supply Ability:	100k/month

Contact Now

8 Inch 1600x480 Ultra Wide LCD Display Stretched Bar LCD Player 40 pin

Description

Name:	8 Inch Ultra Wide LCD Display	Resolution:	1600x480
Outline Dimension:	204.5(H) * 70(V) * 1.0(D) Mm	Active Area:	194.4(H) * 58.32(V)mm
Interface:	LVDS	Brightness:	500cd/m2
Viewing Direction:	IPS	Operating Temperatures:	-20 To 70 Degree
Storage Temperatures:	-30 To 80 Degree
Highlight:	1600x480 Ultra Wide LCD Display , Ultra Wide LCD Display 8 Inch , Stretched Bar LCD Player 40 pin

8 Inch 1600x480 Ultra Wide LCD Display Stretched Bar LCD Player 40 pin

General Description

1.1 Introduction

8 inch Smart Rearview Mirror is a color active matrix TFT LCD module using amorphousilicon TFT's (Thin Film Transistors) as an active switching devices. This module has a 8inch diagonally measured active area with resolutions 1600 horizontal by 480 vertical pixel array.Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display 16.7M colors.

1.2 Features

1, 1 Channel LVDS Interface with 1 pixel / clock

2, DE Only mode (for LVDS Interface)

3, 8-bit color depth, display 16.7M colors

4, Low driving voltage and low power consumption

5, RoHS Compliant

General Data

Model Name	8 inch Stretched LCD TFT Display
Resolution	1600x480
Model Size (WHT)	204.5(H) * 70(V) * 1.0(D) mm
Display Area (W*H)	194.4(H) * 58.32(V)mm
Interface	LVDS
Display Mode	Normally Black,Transmissive
Driver IC	HX8249+HX8678
Brightness	500 cd/m2
Pin number	40 pin
Contrast Ratio	900:1
Operating temperatures	-20 to 70 degree
Storage temperatures	-30 to 80 degree

Drawing

8 Inch 1600x480 Ultra Wide LCD Display Stretched Bar LCD Player 40 pin 0

Product Details

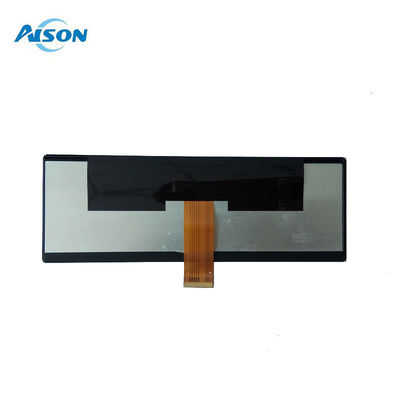

8 Inch 1600x480 Ultra Wide LCD Display Stretched Bar LCD Player 40 pin 2

TFT Applications:

The module operates in temperatures ranging from -20℃ to +70℃, and can be stored in temperatures from -30℃ to +80℃. This 8 inch bar type TFT module is ideal for use in Vehicle Device.
