Product Details:
|
| Name: | LCD Display | Resolution: | 480x854 |
|---|---|---|---|
| Size: | 3.0 Inch | Brightness: | 250 Cd/M2 |
| Contrast Ratio: | 1200:1 | Interface: | RGB |
| Highlight: | 3 Inch LCD Display,LCD Display 480x854,Color LCD Display 250 Cd/M2 |
||

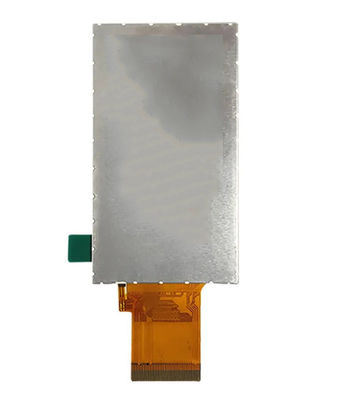

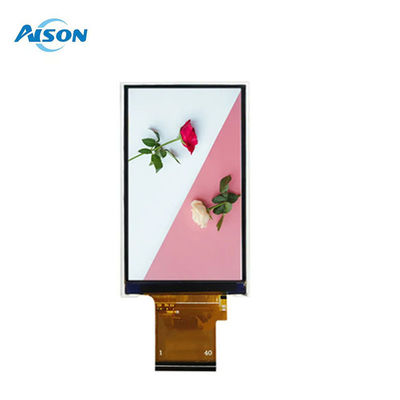

Ultra wide 3.0 inch bar LCD display 480*854 for Home appliance
1. General Specifications
Z030WV40 is a diagonal 3.0" color active LCD module with LED backlight with RGB interface. This module is a transmissive type display operating in the normally white mode. It supports 480*854 resolutions and can display up to 16.7M colors (8-bit). Each pixel is divided into Red, Green and Blue sub-pixels which are arranged in vertical stripe.
|
Item |
Contents |
|
PN |
Z030WV40 |
|
Size |
3.0 inch |
|
Outline Size |
40.04*73.67*2.2 mm |
|
Active Area |
36.72*65.27976 mm |
|
Resolution |
480*854 Pixels |
|
Aspect Ratio |
3:5 |
|
Viewing direction |
IPS, All |
|
Brightness |
250 cd/m² |
|
Contrast ratio |
1200:1 |
|
Interface |
RGB |
|
Operation temperature |
-20 to 70°C |
|
Storage temperature |
-30 to 80°C |
2. Optical Specifications
3. Drawing picture
4. Application
Consumer electronics/automotive/telecoms and data transfer/medical instruments/security management/signs and display/point of sale, EPOS/energy controls/amusement machines/white goods
