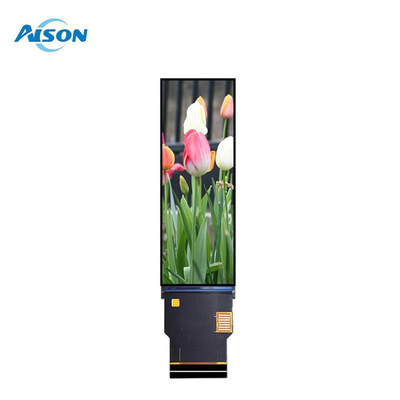

2.99 3 Inch 268x800 Stretched Bar LCD Display TFT LCD Module Drive IC ST7701S

Large Image : 2.99 3 Inch 268x800 Stretched Bar LCD Display TFT LCD Module Drive IC ST7701S

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	AISON
Certification:	ISO9001 / ISO14000/ROHS
Model Number:	Z0299WV01

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Blister Package/Carton
Delivery Time:	7 working days
Payment Terms:	T/T, Western Union, MoneyGram,Paypal
Supply Ability:	100k/month

Contact Now

2.99 3 Inch 268x800 Stretched Bar LCD Display TFT LCD Module Drive IC ST7701S

Description

Name:	2.99 Inch Stretch Bar Display	Resolution:	268x800
Outline Dimension:	26.9680.081.72mm	Active Area:	24.12*72mm
Interface:	RGB 18bit+SPI3W	Viewing Angle:	85/85/85/85
Brightness:	800 Cd/m2	Viewing Direction:	ALL/IPS
Operating Temperatures:	-20 To 70 Degree	Storage Temperatures:	-30 To 80 Degree
Highlight:	3 inch bar LCD display , ST7701S TFT LCD module , 268x800 stretched LCD screen

2.99 3 Inch 268x800 Stretched Bar LCD Display TFT LCD Module Drive IC ST7701S

General Description

Z0299WV01is a transmissive type color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT-LCD module (TFT-LCD panel, driver IC and FPC), a back-light unit and. The resolution of 2.99" contains 268 RGB X800 pixels and can display up to 16.7m colors.

Reliability and Durability:
Our BAR LCD Display undergoes rigorous environmental and reliability testing, including high and low-temperature operations, thermal shock, and electrostatic discharge tests, ensuring long-lasting performance.

Mechanical Drawings and Packaging:
Detailed mechanical drawings are provided for precise installation, and our packaging methods are designed to protect the module during transit.

Usage Precautions:
- Handle with care to avoid mechanical shock and damage.
- Store in conditions avoiding direct sunlight and harmful gases.
- Ensure proper grounding to prevent static damage during handling and assembly.

General Data

Model Name	2.99 inch Bar Type LCD Display
Resolution	268x800
Model Size (WHT)mm	26.9680.081.72mm
Display Area (W*H)mm	24.12*72mm
Interface	RGB 18bit+SPI3W
Display Mode	Normally Black,Transmissive
Viewing	IPS
Brightness	800 cd/m2
Pin number	40 pin
Contrast Ratio	1200:1
Operating temperatures	-20 to 70 degree
Storage temperatures	-30 to 80 degree

Drawing

2.99 3 Inch 268x800 Stretched Bar LCD Display TFT LCD Module Drive IC ST7701S 0

Product Details

2.99 3 Inch 268x800 Stretched Bar LCD Display TFT LCD Module Drive IC ST7701S 1

TFT Applications:

This bar type lcd module operates in temperatures ranging from -20℃ to +70℃, and can be stored in temperatures from -30℃ to +80℃. With the demand for custom projects going up every day, the bar type TFT market is growing correspondingly. And our bar type TFT solution can be perfectly used in many applications like industrial, automotive, medical, home appliance and maritime, etc. This bar type TFT module is ideal for use in electronic door locks, massage chair control panels, and other devices that require a stretched display screen.

2.99 3 Inch 268x800 Stretched Bar LCD Display TFT LCD Module Drive IC ST7701S 3
