Product Details:
|
| Name: | 2.2 Inch SPI LCD Module | Resolution: | 320x240 |
|---|---|---|---|
| Module PCB Size: | 40.10x67.20(mm) | Active Area: | 33.84x45.12(mm) |
| Interface: | SPI 4-line | Viewing Angle: | 55/65/65/65 |
| Display Mode: | TFT,Normally White | Operating Temperatures: | -20 To 70 Degree |
| Storage Temperatures: | -30 To 80 Degree |

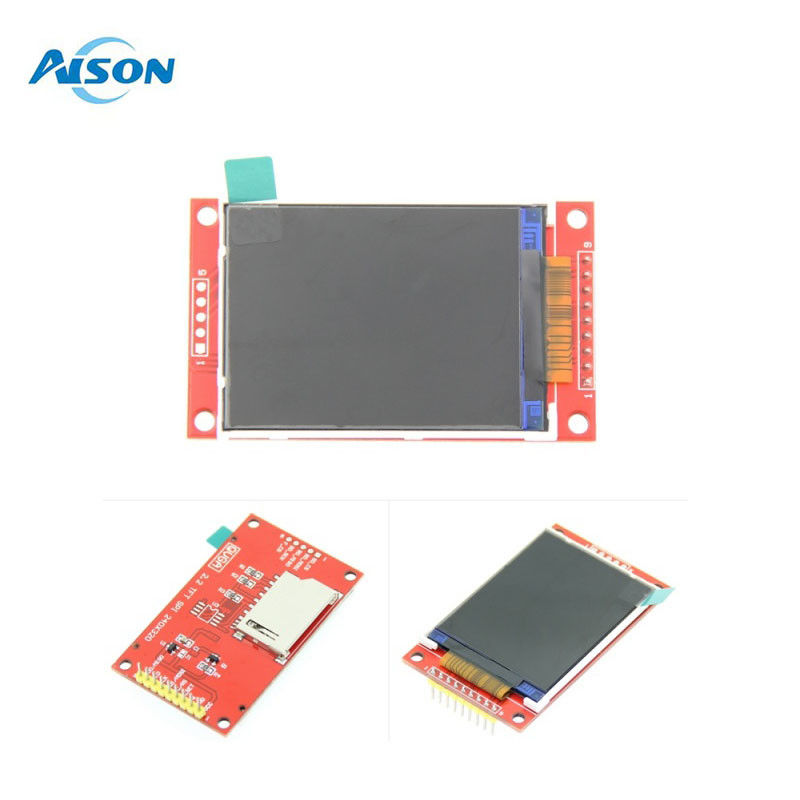

2.2 inch /2.4 inch /2.8 inch /3.2 inch /3.5 inch /4.0 inch SPI TFT LCD Module with PCB Board
Options:
2.2 inch SPI LCD Module without touch;2.2 inch SPI Module display with RTP
2.4 inch SPI LCD Module without touch;2.4 inch SPI Module display with RTP
2.8 inch SPI LCD Module without touch;2.8 inch SPI Module display with RTP
3.2 inch SPI LCD Module without touch;3.2 inch SPI Module display with RTP
3.5 inch SPI LCD Module without touch;3.5 inch SPI Module display with RTP
4.0 inch SPI LCD Module without touch;4.0 inch SPI Module display with RTP
General Description
MSP2202 is a transmissive type a-Si TFT-LCD (amorphous silicon thin film transistorliquid crystal display) module, which is composed of a TFT-LCD panel, a driver circuit abacklight unit, The panel size is 2.2inch and thresolution is 240x320. High image quality a-Si TFT LCD module. Partial-screen display function is available. Sleep and Stand-by modes are available for power saving.
| Name | Parameter |
| Display Color | RGB 65K color |
| SKU | MSP2202 |
| Screen Size | 2.2(inch) |
| Type | TFT |
| Driver IC | ILI9341 |
| Resolution | 320*240 (Pixel) |
| Module Interface | 4-wire SPI interface |
| Active Area (AA area) | 33.84x45.12(mm) |
| Module PCB Size | 40.10x67.20(mm) |
| Operating Temperature | -20℃~60℃ |
| Storage Temperature | -30℃~70℃ |
| VCC power voltage | 3.3V~5V |
| Logic IO port voltage | 3.3V(TTL) |
| Power Consumption | TBD |
| Rough Weight(Package containing) | 22(g) |

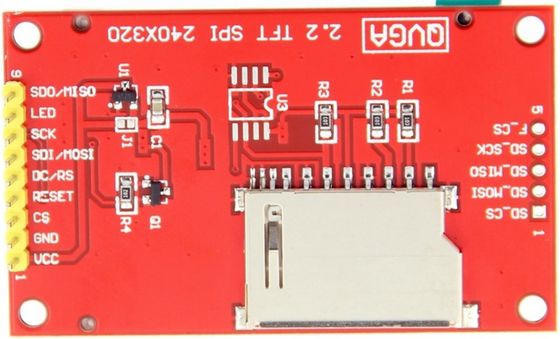

| Number | Pin Label | Description |
| 1 | VCC | 5V/3.3V power input |
| 2 | GND | Ground |
| 3 | CS | LCD chip select signal, low level enable |
| 4 | RESET | LCD reset signal, low level reset |
| 5 | DC/RS | high level: register, low level: data |
| 6 | SDI/MOSI | SPI bus write data signal |
| 7 | SCK | SPI bus clock signal |
| 8 | LED | if not controlled, connect 3.3V always bright |
| 9 | SDO/MISO | SPI bus read data signal, if you do not need to the read function, you can not connect it |
