Product Details:
|
| LCD Size: | 4.58''/4.6'' | Resolution: | 320x960 |
|---|---|---|---|
| Active Area: | 36.768 X 110.304 Mm | Interface: | 3SPI+16Bits RGB |
| Brightness: | 300 Cd/m2 | Display Mode: | Normally Black |
| Operating Temperatures: | -20 To 70 Degree | Touch: | PCAP Touch |
| Driver IC: | ST7701S | Contrast Ratio: | 1200:1 |

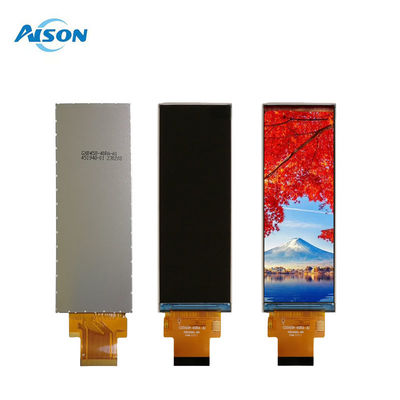

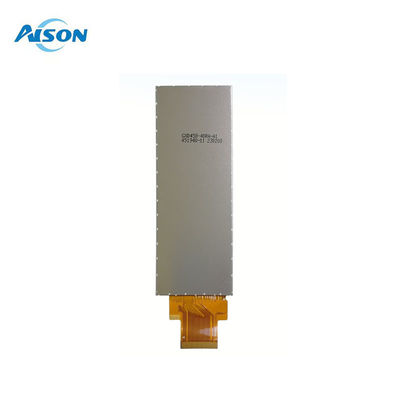

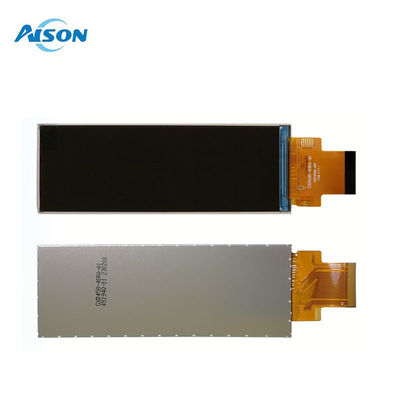

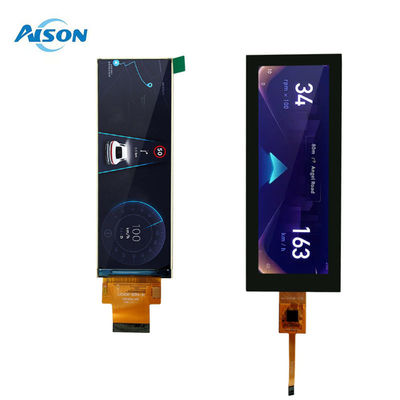

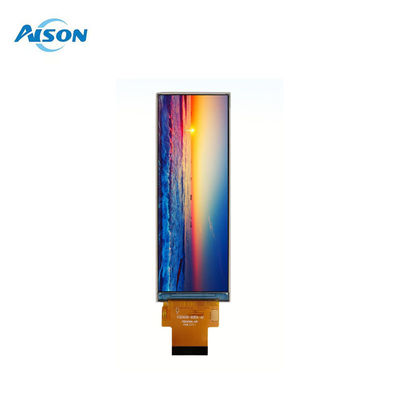

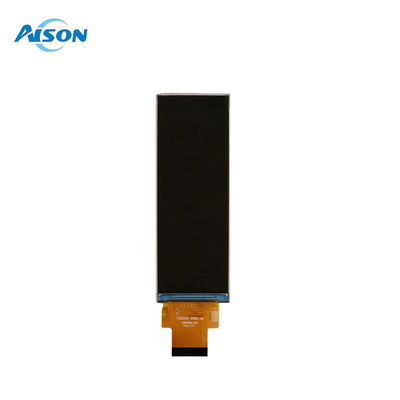

4.6 Inch 320X960 Stretched Bar Portrait LCD Module with 40 Pin RGB Interface
General Description
General Data
| Model Name | 4.6 inch Stretched Bar LCD Display |
| Resolution | 320x960 |
| Model Size (W*H*T)mm | 41.57*118.8*2.5 mm |
| Display Area (W*H)mm | 36.768 x 110.304 mm |
| Interface | 3SPI+18 Bit RGB |
| Display Mode | Normally Black,Transmissive |
| Viewing | IPS |
| Brightness | 300 cd/m2 |
| Pin number | 40 pin |
|
Contrast Ratio
|
1200:1 |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications:
The module operates in temperatures ranging from -20℃ to +70℃, and can be stored in temperatures from -30℃ to +80℃. With the demand for custom projects going up every day, the bar type TFT market is growing correspondingly. And our bar type TFT solution can be perfectly used in many applications like industrial, automotive, medical, home appliance and maritime, etc. This bar type TFT module is ideal for use in electronic door locks, massage chair control panels, and other devices that require a stretched display screen.
