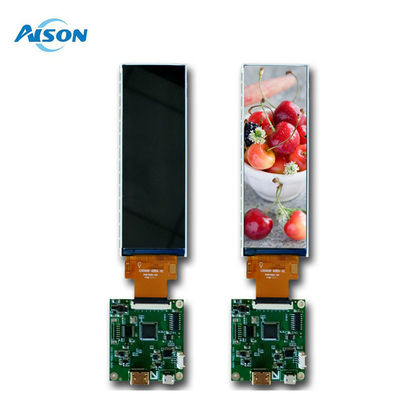

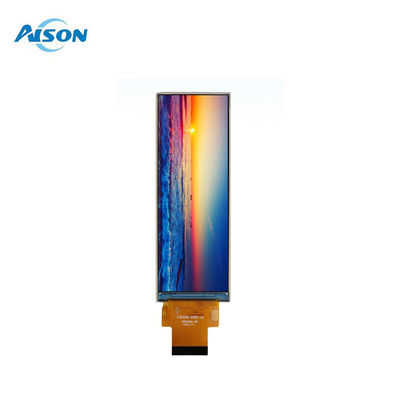

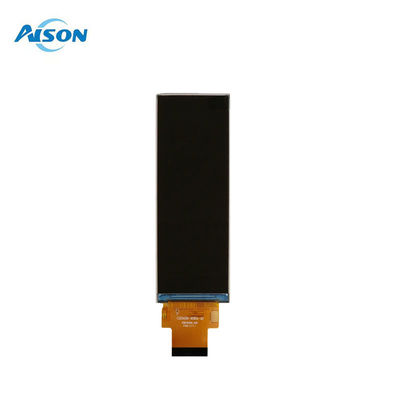

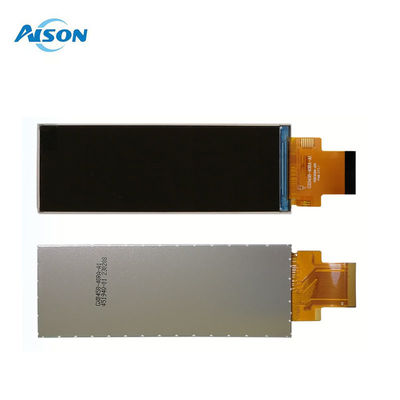

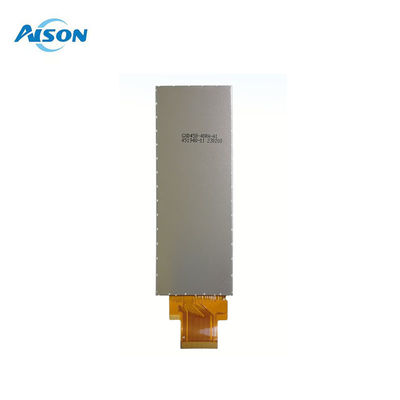

4.6" Bar Type LCD Display RGB 40Pin Stretched Display With Brightness 300 Cd/m2 And Operating Temperatures -20 To 70 Degree

4.6" Bar Type LCD Display RGB 40Pin Stretched Display With Brightness 300 Cd/m2 And Operating Temperatures -20 To 70 Degree
4.6" Bar Type LCD Display RGB 40Pin Stretched Display With Brightness 300 Cd/m2 And Operating Temperatures -20 To 70 Degree 4.6" Bar Type LCD Display RGB 40Pin Stretched Display With Brightness 300 Cd/m2 And Operating Temperatures -20 To 70 Degree 4.6" Bar Type LCD Display RGB 40Pin Stretched Display With Brightness 300 Cd/m2 And Operating Temperatures -20 To 70 Degree 4.6" Bar Type LCD Display RGB 40Pin Stretched Display With Brightness 300 Cd/m2 And Operating Temperatures -20 To 70 Degree 4.6" Bar Type LCD Display RGB 40Pin Stretched Display With Brightness 300 Cd/m2 And Operating Temperatures -20 To 70 Degree 4.6" Bar Type LCD Display RGB 40Pin Stretched Display With Brightness 300 Cd/m2 And Operating Temperatures -20 To 70 Degree 4.6" Bar Type LCD Display RGB 40Pin Stretched Display With Brightness 300 Cd/m2 And Operating Temperatures -20 To 70 Degree

Large Image :  4.6" Bar Type LCD Display RGB 40Pin Stretched Display With Brightness 300 Cd/m2 And Operating Temperatures -20 To 70 Degree

Product Details:
Place of Origin: Guangdong,China
Brand Name: AISON
Certification: ISO9001 / ISO14000/ROHS
Model Number: Z046HD02
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Blister Package/Carton
Delivery Time: 7 working days
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 100k/month
Contact Now

4.6" Bar Type LCD Display RGB 40Pin Stretched Display With Brightness 300 Cd/m2 And Operating Temperatures -20 To 70 Degree

Description
Name: 4.6 Inch Bar Type LCD Display Resolution: 320x960
Outline Dimension: 41.57*118.8*2.5 Mm Active Area: 36.768 X 110.304 Mm
Interface: 3SPI+16Bits RGB Viewing Angle: 80/80/80/80
Brightness: 300 Cd/m2 Display Mode: Normally Black
Viewing Direction: ALL/IPS Operating Temperatures: -20 To 70 Degree
Storage Temperatures: -30 To 80 Degree
Highlight:

4.6” Bar Type LCD Display

,

40Pin Bar Type LCD Display

4.58'' Stretched Display 320x960 4.6 inch Bar Type LCD Display RGB 40Pin





General Description

Z046HD02 is a stretched bar-type 4.58 inch IPS TFT display, featuring a sharp resolution of 320x960 pixels. With an impressive contrast ratio of 1200:1, it excels in rendering deep blacks and vibrant colors, ensuring a visually striking experience. The IPS technology allows full viewing angle.

Z046HD02 is built-in ST7701S controller,3-wire SPI and the 18-bit RGB parallel interface are used in a sequence to communicate data to the display. The SPI interface is first used to initialize the display parameters through command registers. Once initialized, the display can receive data over the RGB parallel interface at a higher speed.

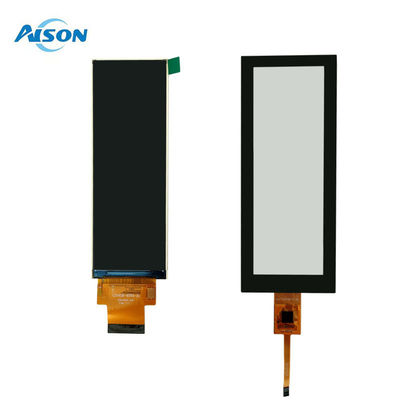

Z046HD02 comes with optional capacitive touch screen allowing users to interface with the display through touch and multi-touch input with bare fingers and with optional FPC connector.

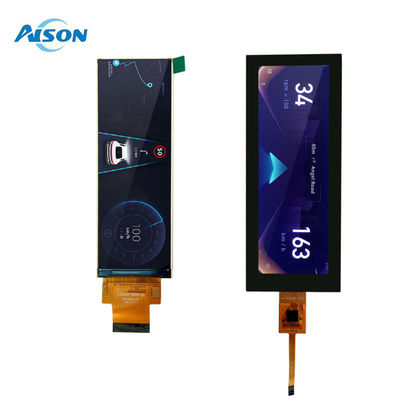

This 4.6 inch Bar Type TFT-LCD displays operates in temperatures ranging from -20℃ to +70℃, and can be stored in temperatures from -30℃ to +80℃. This bar TFT is perfect for electric vehicle dashboards and coffee machines, where a high-definition display is essential for clear navigation and monitoring.



General Data

Model Name 4.6 inch Stretched Bar LCD Display
Resolution 320x960
Model Size (W*H*T)mm 41.57*118.8*2.5 mm
Display Area (W*H)mm 36.768 x 110.304 mm
Interface 3SPI+18 Bit RGB
Display Mode Normally Black,Transmissive
Viewing IPS
Brightness 300 cd/m2
Pin number 40 pin
Contrast Ratio
 1200:1
Operating temperatures -20 to 70 degree
Storage temperatures -30 to 80 degree





Drawing



4.6" Bar Type LCD Display RGB 40Pin Stretched Display With Brightness 300 Cd/m2 And Operating Temperatures -20 To 70 Degree 0





Product Details

4.6" Bar Type LCD Display RGB 40Pin Stretched Display With Brightness 300 Cd/m2 And Operating Temperatures -20 To 70 Degree 14.6" Bar Type LCD Display RGB 40Pin Stretched Display With Brightness 300 Cd/m2 And Operating Temperatures -20 To 70 Degree 24.6" Bar Type LCD Display RGB 40Pin Stretched Display With Brightness 300 Cd/m2 And Operating Temperatures -20 To 70 Degree 3







TFT Applications:

The module operates in temperatures ranging from -20℃ to +70℃, and can be stored in temperatures from -30℃ to +80℃. With the demand for custom projects going up every day, the bar type TFT market is growing correspondingly. And our bar type TFT solution can be perfectly used in many applications like industrial, automotive, medical, home appliance and maritime, etc. This bar type TFT module is ideal for use in electronic door locks, massage chair control panels, and other devices that require a stretched display screen.

4.6" Bar Type LCD Display RGB 40Pin Stretched Display With Brightness 300 Cd/m2 And Operating Temperatures -20 To 70 Degree 4
