Product Details:
|
| Display Name: | 3.97 Inch TFT Display | Resolution: | 480x800 |
|---|---|---|---|
| Outline Dimension: | 57.14*96.85*2.15 Mm | AA Size: | 51.84x 86.40mm |
| Interface: | RGB | Luminance: | 250cd/m2 |
| Display Mode: | TFT,Normally Black | Working Temperatures: | -20 To 70 Degree |
| Storage Temperatures: | -30 To 80 Degree | ||
| Highlight: | RGB Interface TFT LCD Display,3.97 inch TFT LCD Display,32 Pin TFT LCD Display |
||

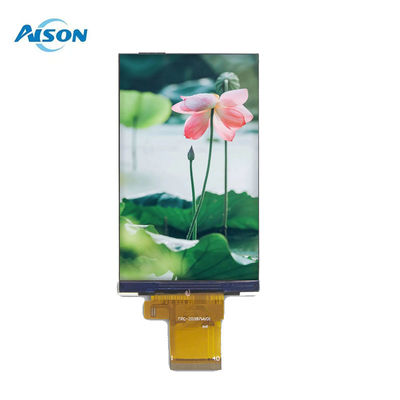

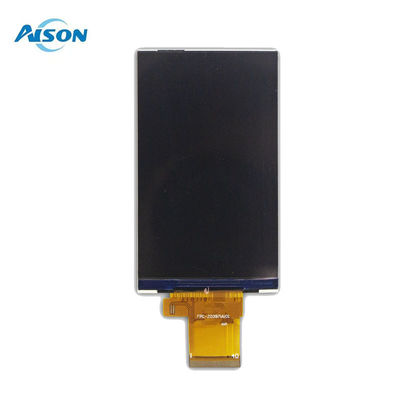

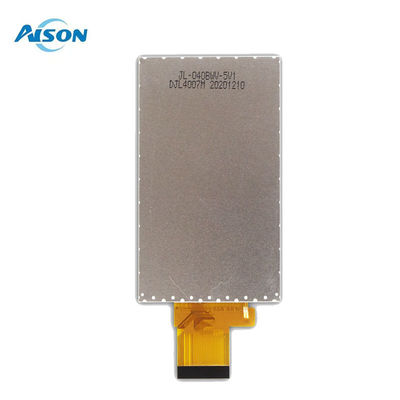

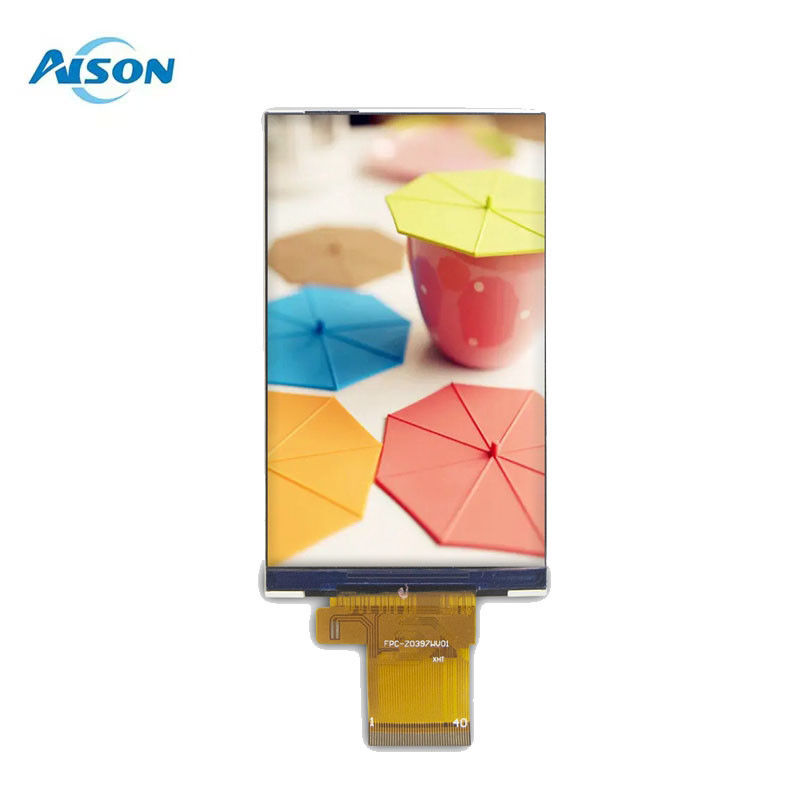

3.97 inch 480X800 IPS TFT LCD Display 32 Pin With RGB Interface
General Description
Z0397WV02 is 480x800 dots 4"(3.97") color tft lcd module display with GC9305V controller,superior display quality,super wide viewing angle.It can be used in any embedded systems,industrial device,security and hand-held equipment which requires display in high quality and colorful image.It supports 8080 8-bit,16-bit,18-bit,24-bit parallel interface and 3-wire SPI+RGB interface . FPC with zif connector is easily to assemble or remove.Lanscape mode is also available.
General Data
| Model Name | 3.97 inch(4 inch ) IPS LCD Display |
| Resolution | 480X800 |
| Model Size (W*H*T)mm | 57.14*96.85*2.15 mm |
| Display Area (W*H)mm | 51.84x 86.40mm |
| Interface | RGB |
| Display Mode | Normally Black,Transmissive |
| Driver IC |
GC9305V
|
| Brightness | 250 cd/m2 |
| Pin number | 32 pin |
|
Contrast Ratio
|
900:1 |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications:
The module operates in temperatures ranging from -20℃ to +70℃, and can be stored in temperatures from -30℃ to +80℃. With the demand for custom projects going up every day, the portrait TFT market is growing correspondingly. And our bar type TFT solution can be perfectly used in many applications like industrial, automotive, medical, home appliance and maritime, etc. This bar type TFT module is ideal for use in electronic door locks, massage chair control panels, and other devices that require a stretched display screen.
