4.3 TFT LCD Display 480x272 Custom LCD Module With SPI/QSPI /808-MCU

Large Image : 4.3 TFT LCD Display 480x272 Custom LCD Module With SPI/QSPI /808-MCU

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	AISON
Certification:	ISO9001 / ISO14000/ROHS
Model Number:	Z043WQ35

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Carton/Blister
Delivery Time:	7 working days
Payment Terms:	T/T, Western Union, MoneyGram,Paypal
Supply Ability:	200k/month

Contact Now

4.3 TFT LCD Display 480x272 Custom LCD Module With SPI/QSPI /808-MCU

Description

Item:	4.3 Inch QSPI TFT LCD Display	Dot Matrix:	480x272
Module Size:	105.467.152.9mm	Active Area:	95.04 X 53.856 Mm
Interface:	SPI /QSPI /808-MCU	View Direction:	ALL
Working Temperatures:	-20 To 70 Degree	Display Mode:	TFT,Normally Black
LED Life Time:	50,000 Hour	Aspect Ratio:	16:9
Highlight:	4.3 Inch TFT LCD Display , TFT LCD Display 480x272 , Custom LCD Module Sunlight Readable

4.3 TFT LCD Display 480x272 Custom LCD Module With SPI/QSPI /808-MCU

Display General Description

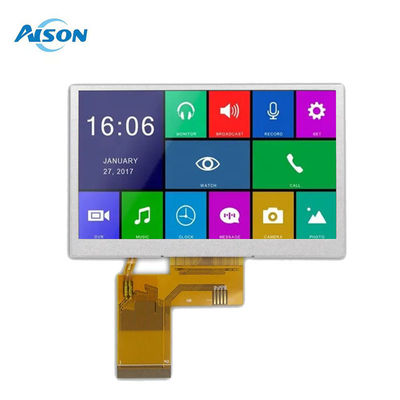

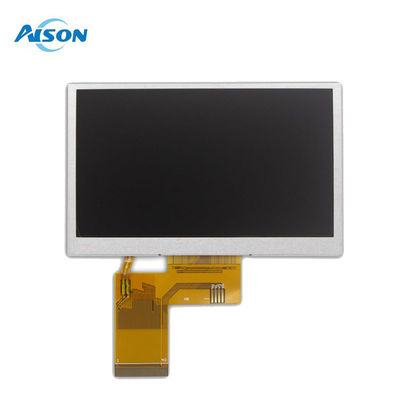

Z043WQ35 is a 4.3-inch IPS TFT-LCD display with a resolution 480x272 pixels. This module is built-in with NV3041 controller IC, and it supports SPI/QSPI and MCU interfaces. The QSPI interface can achieve four times data rate compared with the current SPI interface and make a smoother display accordingly.

The 4.3 inch TFT Display Z043WQ35 is adopted IPS panel which is having the advantage of wider view angle of Left:85 / Right:85 / Up:85 / Down:85 degree (typical), contrast ratio 600:1 (typical value), brightness 350 nits (typical value), anti-glare surface panel, aspect ratio 16:9.

The 4.3 inch lcd module display Z043WQ35 can be operating at temperatures from -20℃ to+ 70℃ and storage temperatures from -30℃ to +80℃.

General Data

Product Name	4.3 inch SPI TFT LCD Module
Number of Pixel	480x272
Interface	SPI /808-MCU
Luminance(cd/m2)	350 cd/m2
Active area	95.04 x 53.856 mm
LCM (W x H x D)	105.467.152.9 mm
Viewing Direction(eye)	IPS
Operating temperatures	-20 to 70 degree
Storage temperatures	-30 to 80 degree

Drawing
4.3 TFT LCD Display 480x272 Custom LCD Module With SPI/QSPI /808-MCU 0

Product Details

4.3 TFT LCD Display 480x272 Custom LCD Module With SPI/QSPI /808-MCU 1

TFT Applications

AISON TFT LCD Displays are suitable for various applications, including embedded systems, industrial devices, security systems, medical equipment, consumer electronics, and handheld devices. Its adaptability and compatibility make it an excellent choice for a wide range of projects.

4.3 TFT LCD Display 480x272 Custom LCD Module With SPI/QSPI /808-MCU 2
