Product Details:
|
| Product Name: | 8 Inch Bar Type LCD Display | Resolution: | 1600x480 |
|---|---|---|---|
| Module Size: | 204.5(H) * 70(V) * 1.0(D) Mm | AA Size: | 194.4(H) * 58.32(V)mm |
| Interface Type: | LVDS | Brightness: | 500cd/m2 |
| Display Mode: | Normally Black | Working Temperatures: | -20 To 70 Degree |
| Storage Temperatures: | -30 To 80 Degree | ||
| Highlight: | 8 Inch Bar Type LCD Display,Bar Type LCD Display 1600x480,Stretch Monitor Display 500 Cd/M2 |
||

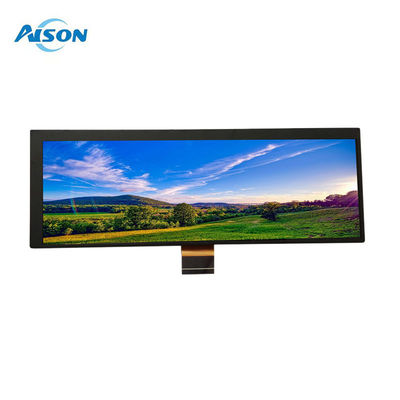

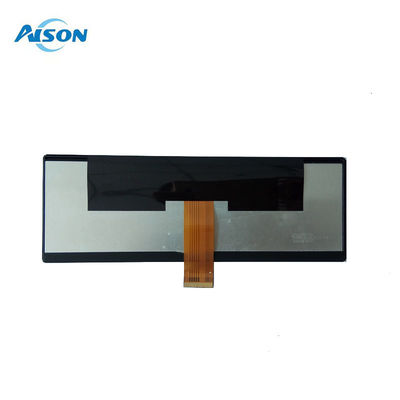

8 Inch Bar Type LCD Display 1600x480 Stretch TFT Display 500 cd/m2
General Description
1.1 Introduction
The 8-inch Smart Rearview Mirror features a high-quality color active matrix TFT LCD module utilizing amorphous silicon TFTs (Thin Film Transistors) as active switching devices. The module boasts an 8-inch diagonally measured active display area with a resolution of 1600 x 480 pixels. Each pixel is divided into RED, GREEN, and BLUE sub-pixels arranged in a vertical stripe pattern, enabling vibrant color reproduction and the ability to display up to 16.7 million colors.
1.2 Features
This advanced design ensures high performance, energy efficiency, and compliance with environmental standards.
General Data
| Model Name | 8 inch bar type TFT display |
| Resolution | 1600x480 |
| Model Size (W*H*T) | 204.5(H) * 70(V) * 1.0(D) mm |
| Display Area (W*H) | 194.4(H) * 58.32(V)mm |
| Interface | LVDS |
| Display Mode | Normally Black,Transmissive |
| Driver IC |
HX8249+HX8678
|
| Brightness | 500 cd/m2 |
| Pin number | 40 pin |
|
Contrast Ratio
|
900:1 |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications:
The module operates in temperatures ranging from -20℃ to +70℃, and can be stored in temperatures from -30℃ to +80℃. This 8 inch bar type TFT module is ideal for use in Vehicle Device.
