Product Details:
|
| Name: | 2.8 Inch 240x320 LCD TFT Module | Resolution: | 240x320 |
|---|---|---|---|
| Module Dimension: | 47.6*64.86*2.1 Mm | Active Area: | 43.2*57.6 Mm |
| Interface: | SPI/ MCU/RGB | Brightness: | 350cd/m2 |
| Display Mode: | TFT, Normally Black, Transmissive | Driver Controller: | ST7789V |
| Operating Temperatures: | -20 To 70 Degree | ||
| Highlight: | 240x320 LCD TFT Module,LCD TFT Module 2.8 Inch,LCD Screen Module 350cd/m2 |
||

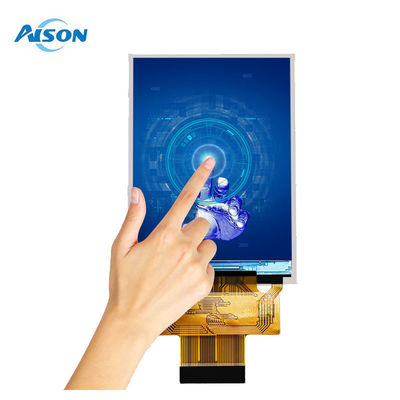

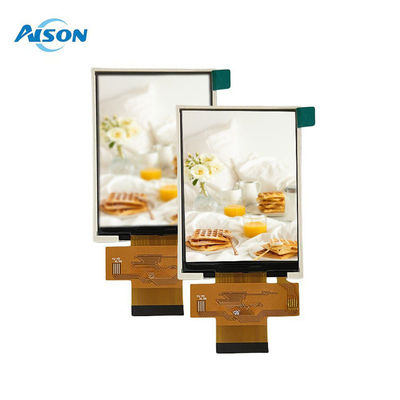

2.8 Inch IPS TFT Module 240x320 SPI/ MCU/RGB Interface
The Z028Q20 is a 2.8-inch IPS TFT-LCD display module with a resolution of 240 x 320 pixels. Equipped with the ST7789V controller IC, this module supports both MCU8080 and SPI interfaces. The IPS panel offers advantages such as a wide viewing angle (80 degrees typical in all directions: left, right, up, and down), a contrast ratio of 500 (typical value), and a brightness of 350 nits (typical value).
This 2.8-inch TFT-LCD display operates in portrait mode and integrates the ST7789V controller IC directly on the module. The analog supply voltage (VCI) ranges from 2.5V to 3.3V. Designed for reliable performance, the TFT module can operate within a temperature range of -20°C to +70°C, with storage temperatures ranging from -30°C to +80°C.
General Data
| Model Name | 2.8 inch IPS LCD Module |
| Resolution | 240x320 |
| Model Size (W*H*T) |
47.6*64.86*2.1mm
|
| Display Area (W*H) |
43.2*57.6 mm
|
| Interface | SPI/MCU/RGB |
| Display Mode | Normally Black,Transmissive |
| Viewing Angles | 80/80/80/80 |
| Brightness | 350 cd/m2 |
| Pin number | 45 |
| Drive IC | ST7789V |
| BACKLIGHT TYPE | 4 WHITE LED |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing

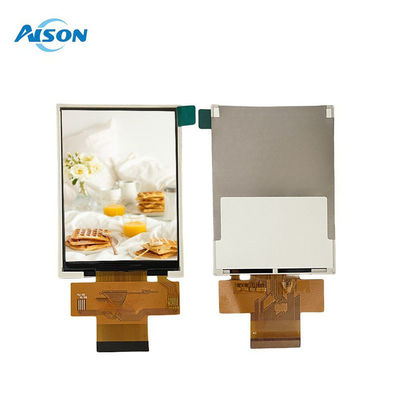

Product Details
TFT Applications
The versatility of this 2.8 inch IPS TFT-LCD displays makes them suitable for various applications, including consumer electronics, medical displays, and industrial control panels.
