Product Details:
|
| Name: | Bar Type LCD Display | Interface: | RGB |
|---|---|---|---|
| Active Area: | 39.18*94.032 Mm | Resolution: | 400*960 Pixels |
| Highlight: | 350 cd/m² Bar Type LCD Display,Bar Type LCD Display 3.99 Inch,Ultra Wide LCD Panel 400x960 |
||

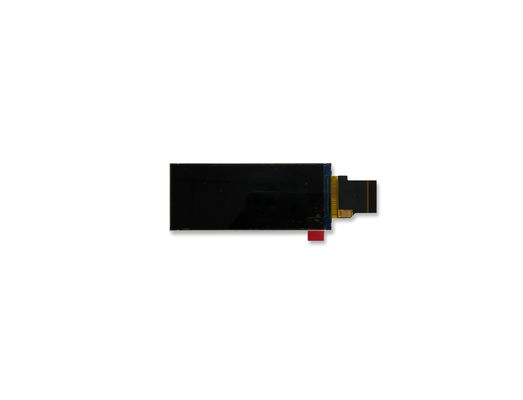

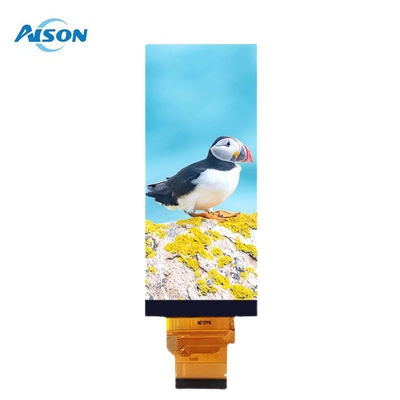

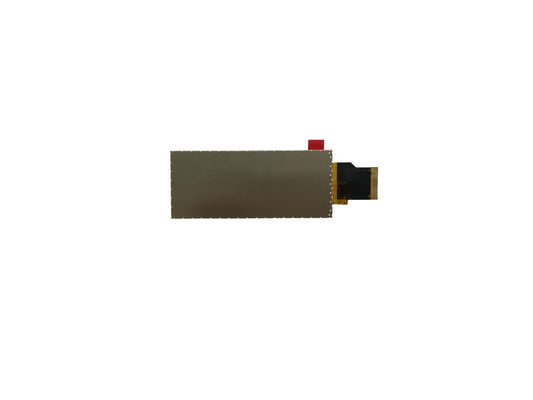

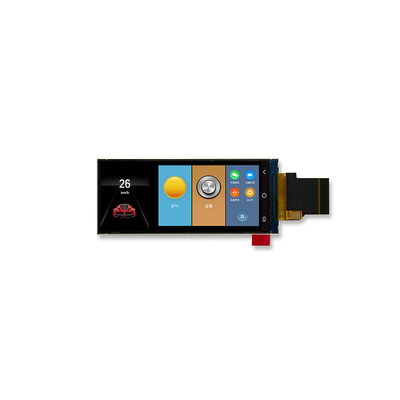

Ultra wide 3.99 inch bar LCD display 400*960 for smart home, IoT
1. General Specifications
Z0399HD01 is a diagonal 3.99" color active LCD module with LED backlight with RGB interface. This module is a transmissive type display operating in the normally white mode. It supports 400*960 resolutions and can display up to 16.7M colors (8-bit). Each pixel is divided into Red, Green and Blue sub-pixels which are arranged in vertical stripe.
|
Item |
Contents |
|
PN |
Z0399HD01 |
|
Size |
3.99 inch |
|
Outline Size |
42.9*102.08*2.25 mm |
|
Active Area |
39.18*94.032 mm |
|
Resolution |
400*960 Pixels |
|
Aspect Ratio |
5:12 |
|
Viewing direction |
IPS, All |
|
Brightness |
350 cd/m² |
|
Contrast ratio |
1500:1 |
|
Interface |
3SPI+18BIT RGB |
|
Operation temperature |
-20 to 70°C |
|
Storage temperature |
-30 to 80°C |
2. Optical Specifications
3. Drawing picture
4. Application
Consumer electronics/automotive/telecoms and data transfer/medical instruments/security management/signs and display/point of sale, EPOS/energy controls/amusement machines/white goods/ Home appliance
