Product Details:
|
| Name: | 3.9 Inch Bar Type LCD Display | Resolution: | 480x128 |
|---|---|---|---|
| Outline Dimension: | 105.5*40.61*2.9mm | Active Area: | 95.04 X 25.344 Mm |
| Interface: | SPI /8080-MCU | Viewing Angle: | 80/80/80/80 |
| Brightness: | 500 Cd/m2 | Viewing Direction: | ALL/IPS |
| Operating Temperatures: | -20 To 70 Degree | Storage Temperatures: | -30 To 80 Degree |
| Highlight: | Landscape Bar Type LCD Display,Bar Type LCD Display 500 Cd/M2,Stretched Bar LCD Monitor Customized |
||

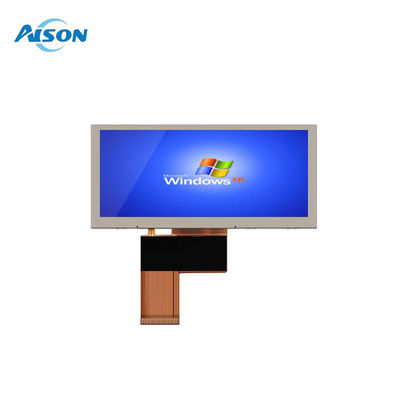

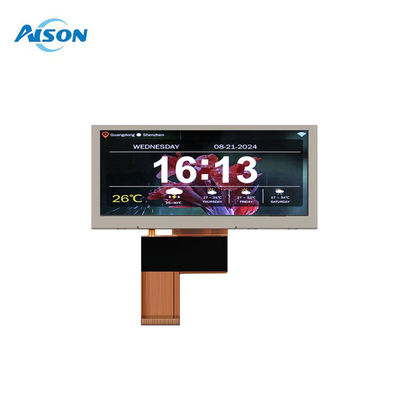

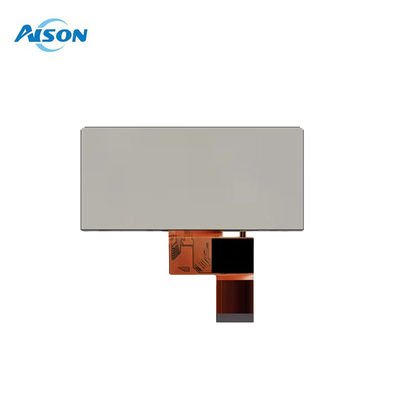

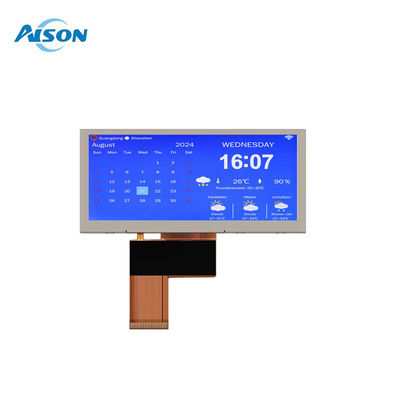

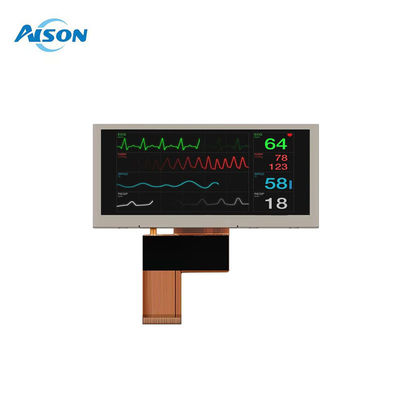

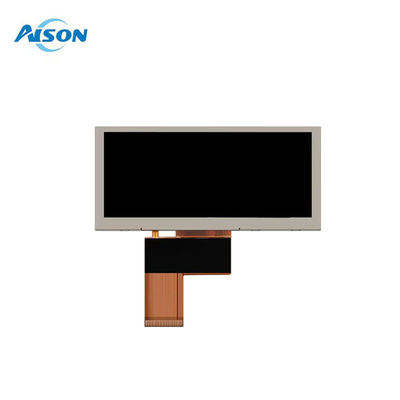

3.9 inch 480x128 Landscape Bar Type TFT Display MCU SPI Interface
General Description
General Data
| Model Name | 3.9 inch Bar Type LCD Display |
| Resolution | 480x128 |
| Model Size (W*H*T)mm | 105.5*40.61*2.9mm |
| Display Area (W*H)mm |
95.04 x 25.344 mm
|
| Interface | SPI /8080-MCU |
| Display Mode | Normally Black,Transmissive |
| Viewing | IPS |
| Brightness | 500 cd/m2 |
| Pin number | 40 pin |
|
Contrast Ratio
|
600:1 |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications:
The module operates in temperatures ranging from -20℃ to +70℃, and can be stored in temperatures from -30℃ to +80℃. With the demand for custom projects going up every day, the bar type TFT market is growing correspondingly. And our bar type TFT solution can be perfectly used in many applications like industrial, automotive, medical, home appliance and maritime, etc. This bar type TFT module is ideal for use in electronic door locks, massage chair control panels, and other devices that require a stretched display screen.
