Product Details:
|
| Name: | 4 Inch TFT Display | Resolution: | 480x800 |
|---|---|---|---|
| Outline Dimension: | 57.14*96.85*2.15 Mm | Active Area: | 51.84x 86.40mm |
| Interface: | RGB | Viewing Angle: | 85/85/85/85 |
| Brightness: | 250cd/m2 | Display Mode: | Normally Black |
| Viewing Direction: | ALL/IPS | Operating Temperatures: | -20 To 70 Degree |
| Storage Temperatures: | -30 To 80 Degree | ||
| Highlight: | 4 Inch TFT Display,TFT Display 480X800,IPS TFT Screen 32 Pin |
||

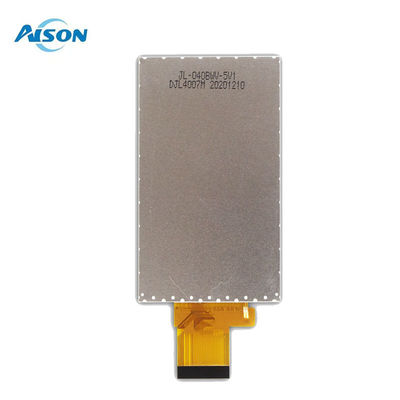

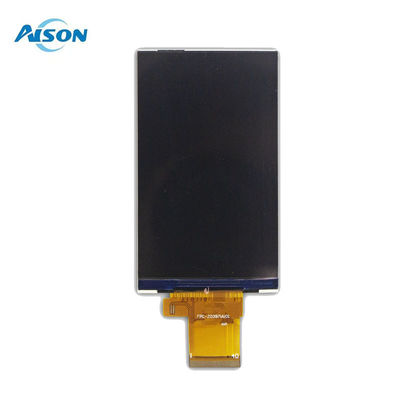

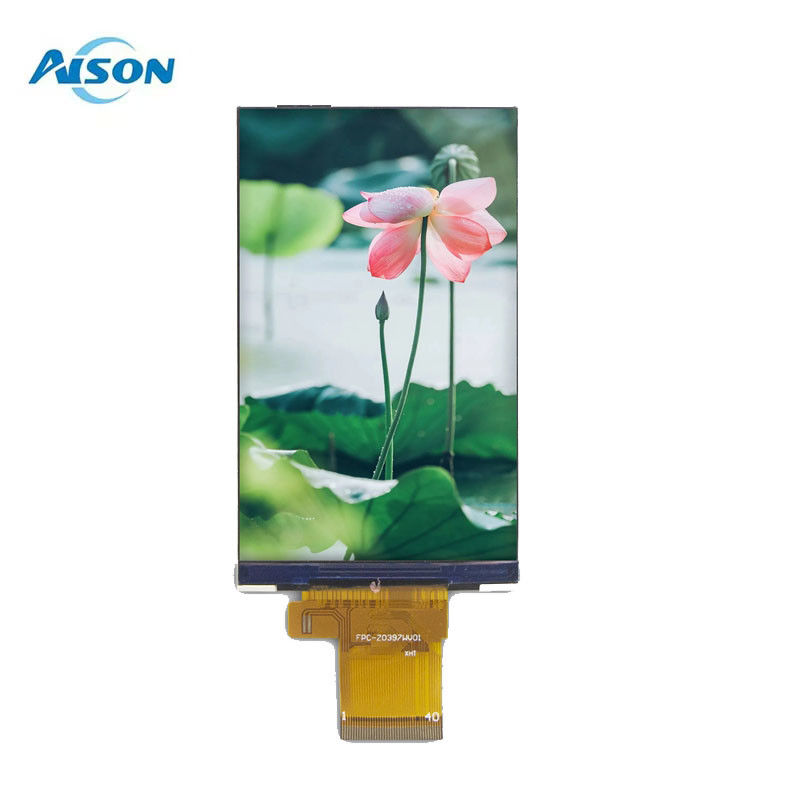

4" inch (3.97") IPS TFT LCD Display Module 480X800 RGB Interface
General Description
Introducing the Z0397WV02 - a high-performance 4.0-inch (3.97") TFT LCD module designed for exceptional display quality. With a resolution of 480x800 pixels, this module features a GC9305V controller and supports extra-wide viewing angles, delivering vibrant and crystal-clear visuals.
This versatile display module is ideal for a wide range of applications, including embedded systems, industrial devices, security equipment, and handheld devices. It excels in environments requiring high-quality, colorful imagery.
The Z0397WV02 offers flexible connectivity with support for:
Featuring a FPC with a ZIF connector, this module ensures easy assembly and removal. Additionally, it supports landscape mode for enhanced versatility.
Upgrade your device with the Z0397WV02 - where quality meets functionality.
General Data
| Model Name | 3.97 inch IPS TFT Display |
| Resolution | 480X800 |
| Model Size (W*H*T)mm | 57.14*96.85*2.15 mm |
| Display Area (W*H)mm | 51.84x 86.40mm |
| Interface | RGB |
| Display Mode | Normally Black,Transmissive |
| Driver IC |
GC9305V
|
| Brightness | 250 cd/m2 |
| Pin number | 32 pin |
|
Contrast Ratio
|
900:1 |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications:
The module operates in temperatures ranging from -20℃ to +70℃, and can be stored in temperatures from -30℃ to +80℃. With the demand for custom projects going up every day, the portrait TFT market is growing correspondingly. And our bar type TFT solution can be perfectly used in many applications like industrial, automotive, medical, home appliance and maritime, etc. This bar type TFT module is ideal for use in electronic door locks, massage chair control panels, and other devices that require a stretched display screen.
