Product Details:
|
| Name: | TFT 7 Inch Display | Resolution: | 280x1424 |
|---|---|---|---|
| Outline Dimension: | 38.20x181.47x3.5 Mm | Active Area: | 33.6x170.88 Mm |
| Interface: | MIPI | Viewing Angle: | 80/80/80/80 |
| Brightness: | 300 Cd/m2 | Operating Temperatures: | -20 To 70 Degree |
| Contrast Ratio: | 1000:1 | Storage Temperatures: | -30 To 80 Degree |
| Highlight: | TFT 7 Inch Display,7 Inch Display 300 Cd/M2,LCD Bar Screen 280*1424 |
||

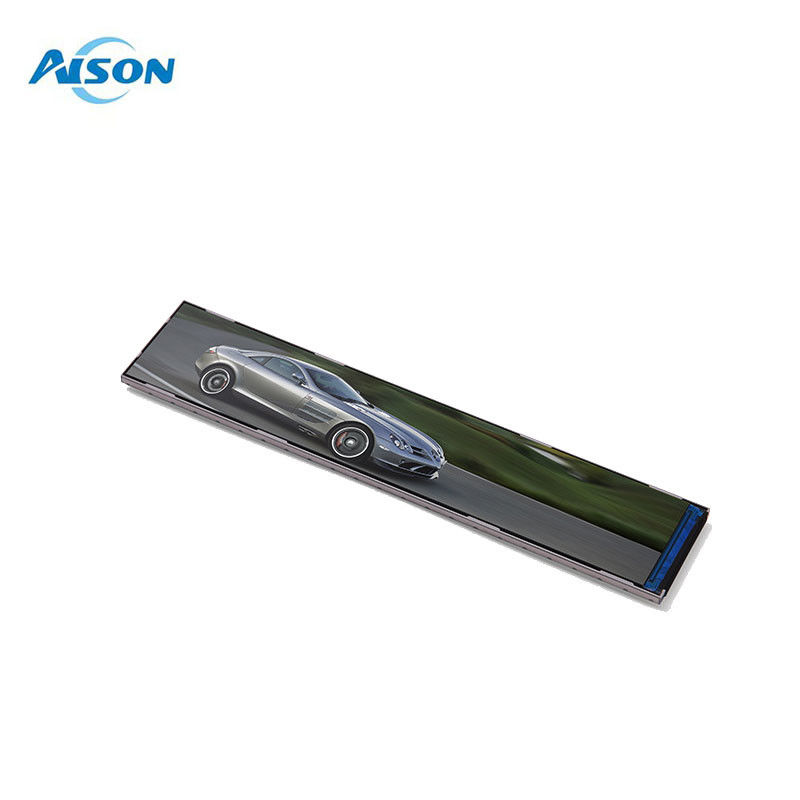

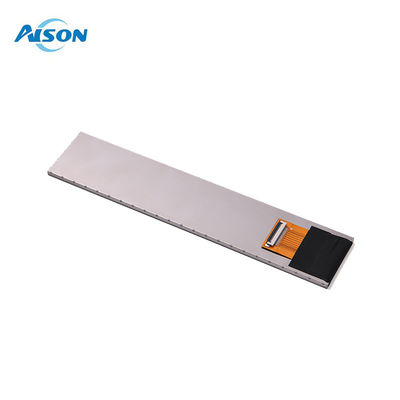

7-Inch Stretch Bar TFT Display with RGB Advert 6.85-Inch Ultra Wide Bar 280*1424 Resolution
General Description
This high-performance module is designed to meet the demands of modern applications with its robust features and reliable performance.
Key Features:
- Display Size: Experience a spacious 7.0" display that commands attention and provides ample viewing real estate.
- Resolution: With a resolution of 280 (horizontal) x 1424 (vertical), this BAR LCD Display delivers sharp images and text.
- Interface: MIPI interface ensures high-speed data transfer and seamless integration with modern devices.
- Color Depth: A color depth of 16.7M ensures a vibrant and lifelike display.
- Technology: Advanced a-Si technology with a pixel pitch of 0.12x0.12mm for crisp and clear visuals.
- Pixel Configuration: R.G.B. Vertical Stripe configuration for accurate color reproduction.
- Display Mode: Normally Black display mode for excellent contrast and readability.
- Mechanical Design: The module dimensions are 38.20*181.47*3.5 mm, with an active area of 33.6 x 170.88 mm, making it compact yet powerful.
- LED Backlight: Equipped with 8 LEDs for uniform brightness across the display.
Electrical Characteristics:
- Power Voltage: Operates on a voltage range of 3 to 3.6V, with a typical digital operation current of 8.6 mA.
- Gate On/Off Power: VGH of 15V and VGL of -10.0V ensure stable operation.
- Vcom: TBD, ensuring optimal display performance.
Optical Performance:
- Viewing Angles: Enjoy a wide viewing angle of up to 80 degrees, both horizontally and vertically.
- Contrast Ratio: A high contrast ratio of 800-1000:1 for deep blacks and bright whites.
- Response Time: Fast response times of 30-40ms at 25°C for smooth motion display.
- Color Gamut: Covers 60% of the NTSC color space, providing a broad spectrum of colors.
- Luminance: A brightness of 250-300 nits for visibility in various lighting conditions.
Reliability and Durability:
The Z070FH01 undergoes stringent environmental and reliability tests, including high and low-temperature operations, thermal shock, and electrostatic discharge tests, ensuring its longevity and dependability.
Mechanical Drawings and Packaging
Detailed mechanical drawings are provided for precise installation, and our packaging methods are designed to protect the module during transit.
General Data
| Model Name | 7 inch Stretched Bar LCD Display |
| Resolution | 280*1424 |
| Model Size (W*H*T)mm | 38.20x181.47x3.5 mm |
| Display Area (W*H)mm | 33.6x170.88 mm |
| Interface | MIPI |
| Display Mode | Normally Black,Transmissive |
| Viewing | IPS |
| Brightness | 300 cd/m2 |
| Pin number | 30 pin |
|
Contrast Ratio
|
1000:1 |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications:
The module operates in temperatures ranging from -20℃ to +70℃, and can be stored in temperatures from -30℃ to +80℃. With the demand for custom projects going up every day, the bar type TFT market is growing correspondingly. And our bar type TFT solution can be perfectly used in many applications like industrial, automotive, medical, home appliance and maritime, etc. This bar type TFT module is ideal for use in electronic door locks, massage chair control panels, and other devices that require a stretched display screen.
