Product Details:
|
| Name: | Stretch Bar Display | Resolution: | 320x960 |
|---|---|---|---|
| Outline Dimension: | 41.57*118.8*2.5 Mm | Active Area: | 36.768 X 110.304 Mm |
| Interface: | 3SPI+16Bits RGB | Viewing Angle: | 80/80/80/80 |
| Brightness: | 300 Cd/m2 | Viewing Direction: | ALL/IPS |
| Operating Temperatures: | -20 To 70 Degree | Storage Temperatures: | -30 To 80 Degree |
| Highlight: | 320x960 Stretch Bar Display,Stretch Bar Display 40 Pin,IPS Display Screen 4.6 Inch |
||

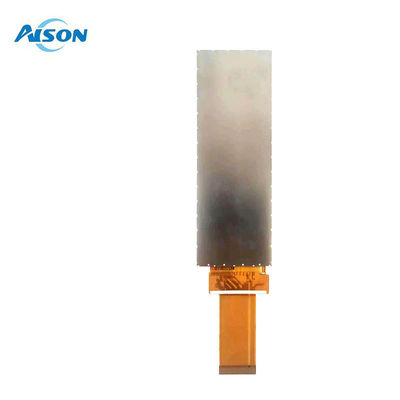

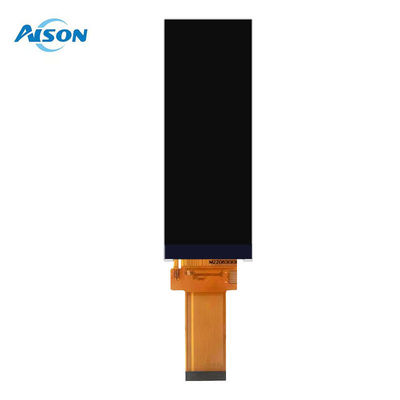

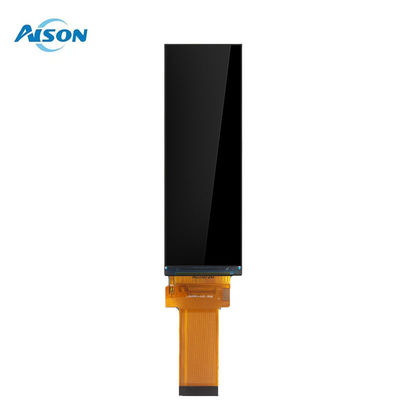

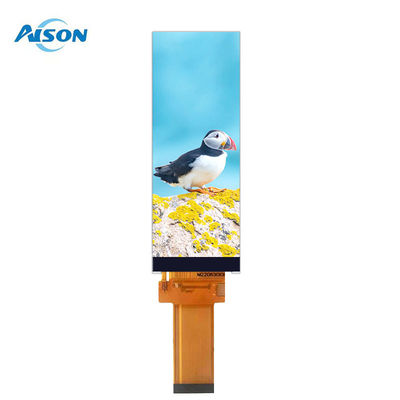

4.6 inch 320x960 RGB Interface Bar Type TFT LCD Module
General Description
Key Features:
- Display Dimensions: With a 4.58" screen size, our BAR LCD Display offers a compact yet impactful viewing experience.
- Resolution: Boasting a 320 (horizontal) * 960 (vertical) resolution, the Z046HD01ensures crisp and clear images.
- Interface: Equipped with a 3SPI+16Bits RGB interface and connector type connection, this module guarantees seamless integration and data transfer.
- Color Depth: Enjoy a vibrant display with 16.7M color depth, bringing your content to life with rich hues.
- Technology: Utilizing a-Si technology, our pixel pitch is 114.9x114.9 micrometers, ensuring a high-definition display.
- Pixel Configuration: The R.G.B. Vertical Stripe configuration enhances color accuracy and uniformity.
- Display Mode: The Normally Black display mode offers excellent contrast and visibility under various lighting conditions.
- Mechanical Design: The LCM dimensions are 41.57*118.8*2.5 mm, with an active area of 36.768 x 110.304 mm, designed for space efficiency.
- LED Backlight: Illuminated by 8 LEDs, this BAR LCD Display ensures consistent brightness across the screen.
Electrical Specifications:
- Power Voltage: Operates within a range of 3.0 to 3.6 volts, with a typical power supply of 2.8V.
- Input/Output Voltages: Carefully regulated to ensure reliable operation and signal integrity.
- Backlight Driving: With a LED current of 40mA and a LED voltage of 11.2-12.8V, the backlight is powerful and efficient.
Optical Performance:
- Viewing Angles: The Z046HD01 offers an impressive 80-degree viewing angle, ensuring clear visibility from all directions.
- Contrast Ratio: A high contrast ratio of 1000-1200:1 delivers deep blacks and bright whites for a realistic image.
- Response Time: With a quick response time of 25-35ms, this BAR LCD Display is ideal for dynamic content.
- Color Gamut: Covering 50% of the NTSC color space, experience a wide range of vivid colors.
- Luminance: A brightness of 260-300 nits ensures that the display is visible even in bright environments.
Reliability and Durability:
Our BAR LCD Display undergoes rigorous environmental and reliability testing, including high and low-temperature operations, thermal shock, and electrostatic discharge tests, ensuring long-lasting performance.
Mechanical Drawings and Packaging:
Detailed mechanical drawings are provided for precise installation, and our packaging methods are designed to protect the module during transit.
Usage Precautions:
- Handle with care to avoid mechanical shock and damage.
- Store in conditions avoiding direct sunlight and harmful gases.
- Ensure proper grounding to prevent static damage during handling and assembly.
General Data
| Model Name | 4.6 inch Bar Type LCD Display |
| Resolution | 320x960 |
| Model Size (W*H*T)mm | 41.57*118.8*2.5 mm |
| Display Area (W*H)mm | 36.768 x 110.304 mm |
| Interface | 3SPI+18 Bit RGB |
| Display Mode | Normally Black,Transmissive |
| Viewing | IPS |
| Brightness | 300 cd/m2 |
| Pin number | 40 pin |
|
Contrast Ratio
|
1200:1 |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications:
The module operates in temperatures ranging from -20℃ to +70℃, and can be stored in temperatures from -30℃ to +80℃. With the demand for custom projects going up every day, the bar type TFT market is growing correspondingly. And our bar type TFT solution can be perfectly used in many applications like industrial, automotive, medical, home appliance and maritime, etc. This bar type TFT module is ideal for use in electronic door locks, massage chair control panels, and other devices that require a stretched display screen.
