Product Details:
|
| Item: | 4.6 Inch Bar Type TFT Display | Resolution: | 320x960 |
|---|---|---|---|
| Module Size: | 41.57*118.8*2.5 Mm | Active Area: | 36.768 X 110.304 Mm |
| Interface Type: | 2 Lane MIPI | Luminance: | 300 Cd/m2 |
| Display Mode: | TFT,Normally Black | Working Temperatures: | -20 To 70 Degree |
| Storage Temperatures: | -30 To 80 Degree | ||
| Highlight: | 300 Cd/M2 Bar Type LCD Display,Bar Type LCD Display 4.6 Inch,Stretched Display Screen 320x960 |
||

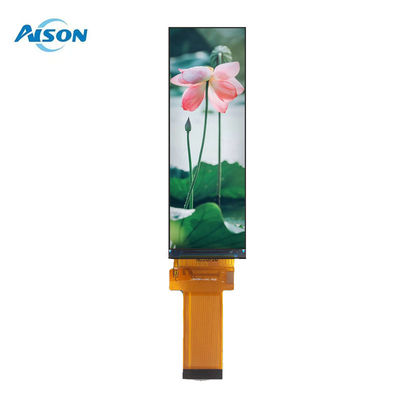

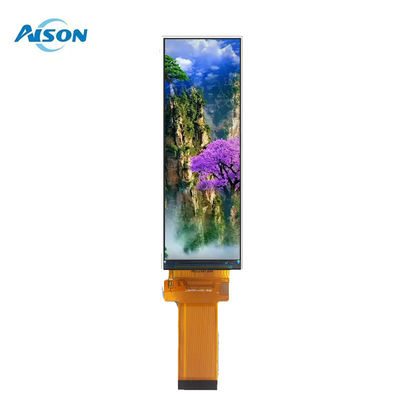

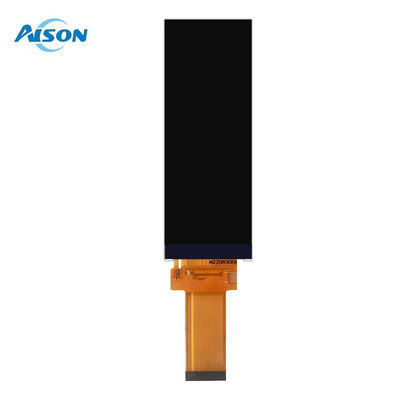

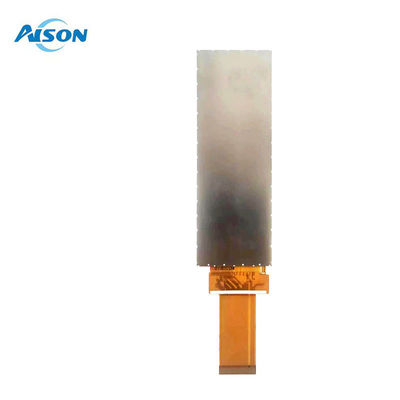

4.6 Inch 320x960 Bar Type TFT LCD Display with MIPI Interface 30 Pin
General Description
Z046HD01 is a portrait mode 4.6 inch stretched bar type TFT LCD with a resolution of 320X960pixels.Its interface is 2 Lane MIPI with a contrast Ratio 1200:1.
The module operates in temperatures ranging from -20℃ to +70℃, and can be stored in temperatures from -30℃ to +80℃. This bar type TFT module is ideal for use in electronic door locks, massage chair control panels, and other devices that require a stretched display screen.
General Data
| Model Name | 4.6 inch Stretched Bar LCD Display |
| Resolution | 320x960 |
| Model Size (W*H*T)mm | 41.57*118.8*2.5 mm |
| Display Area (W*H)mm | 36.768 x 110.304 mm |
| Interface | MIPI |
| Display Mode | Normally Black,Transmissive |
| Viewing | IPS |
| Brightness | 300 cd/m2 |
| Pin number | 30 pin |
|
Contrast Ratio
|
1200:1 |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications:
The module operates in temperatures ranging from -20℃ to +70℃, and can be stored in temperatures from -30℃ to +80℃. With the demand for custom projects going up every day, the bar type TFT market is growing correspondingly. And our bar type TFT solution can be perfectly used in many applications like industrial, automotive, medical, home appliance and maritime, etc. This bar type TFT module is ideal for use in electronic door locks, massage chair control panels, and other devices that require a stretched display screen.
