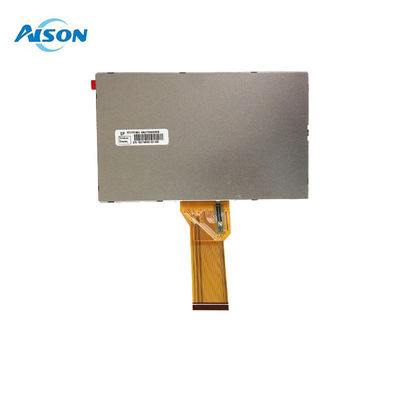

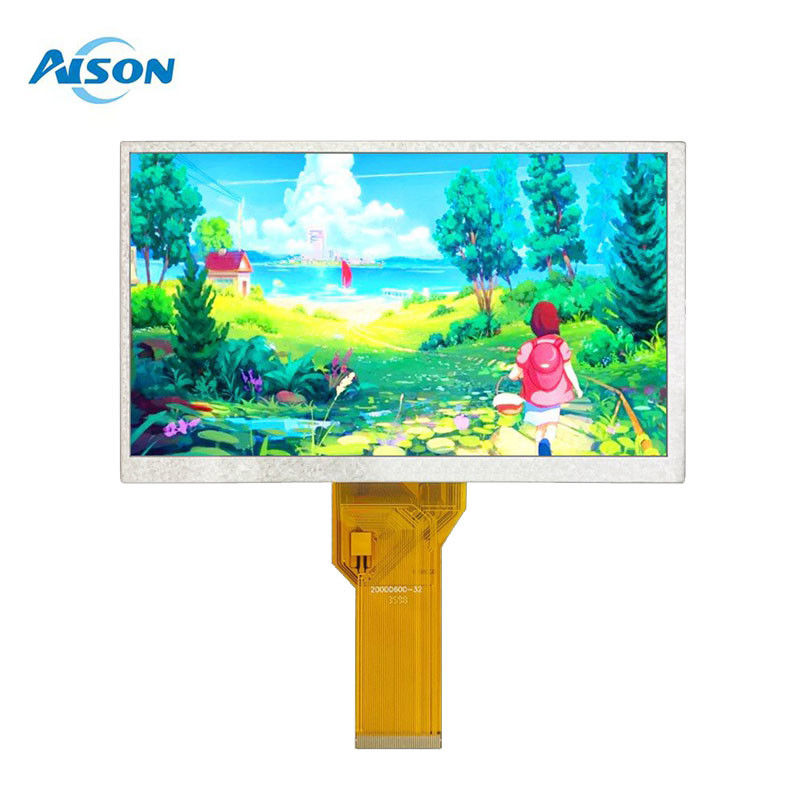

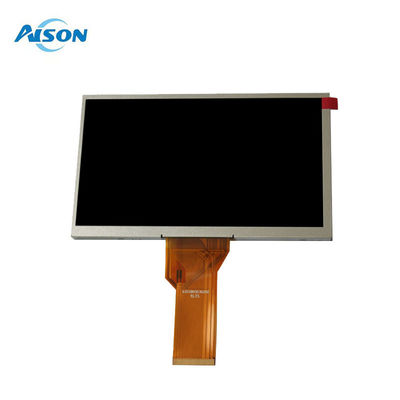

7 Inch Innolux Original TFT Display Module AT070TN94 RGB 50 Pin Interface

Large Image : 7 Inch Innolux Original TFT Display Module AT070TN94 RGB 50 Pin Interface

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	AISON
Certification:	ISO9001 / ISO14000/ROHS
Model Number:	AT070TN94

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable based on quantity
Packaging Details:	Carton/Blister Package
Delivery Time:	7 working days
Payment Terms:	T/T, Western Union, MoneyGram,Paypal
Supply Ability:	200k/month

Contact Now

7 Inch Innolux Original TFT Display Module AT070TN94 RGB 50 Pin Interface

Description

Item:	7 Inch Innolux Original LCD Display	Resolution:	800x480
Outline Dimension:	164.9(H)×100(V)×6(D) Mm	Active Area:	154.08(W)×85.92(H) Mm
Interface Type:	24 Bit RGB	Luminance:	400 Cd/m2
Operating Mode:	TN, Normally White, Transmissive	View Direction:	6 O'clock
Working Temperature:	-30 ~ 85 °C	Storage Temperature:	-30 ~ 85 °C
Highlight:	7 Inch Original LCD Display , Original LCD Display 400 Cd/M2 , High Resolution LCD Display 800X480

7 Inch Innolux Original TFT Display Module AT070TN94 RGB 50 Pin Interface

General Description

Innolux AT070TN94 is a 7.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -30 ~ 85°C , a storage temperature range of -30 ~ 85°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized in the following: Wide Temperature, WLED Backlight, U/D,L/R Reverse,6/8 bit, Matte , 80.15mm length FPC. Based on its features, recommend that this model be applied to Automotive Display etc.

High-Resolution Display: The Innolux 7-inch display boasts an 800x480 resolution, providing crisp and clear visuals for various applications, including Automotive.
Wide Viewing Angles: With a 6 o'clock viewing angle, this display ensures that the image remains clear and vibrant from multiple perspectives, ideal for use in various environments.
Compact Design: Measuring 164.9x100.0 x 5.7mm, this display is compact and suitable for use in a variety of devices, including Automotive applications.
High Brightness: Featuring a luminance of 400 cd/m^2, this display is suitable for use in bright environments, making it ideal for applications such as outdoor use or in well-lit spaces.
Customizable for User Needs: As a manufacturer/factory supplier, the Innolux brand can accommodate custom orders, allowing users to tailor the display to their specific requirements, including the option to mention "user input" for customizations.

General Data

Model Name	Innolux 7 inch TFT Display
Resolution	800(RGB)480
Model Size (WHT)mm	164.9(H)×100(V)×6(D) mm
Display Area (W*H)mm	154.08(W)×85.92(H) mm
Interface	RGB
Display Mode	Normally White TN,Transmissive
Viewing Direction	12:00 o'clock
Brightness	400 cd/m2
Pin number	50
Viewing Angle	70/70/50/70
Operating temperatures	-30 ~ 85 °C
Storage temperatures	-30 ~ 85 °C

Drawing

7 Inch Innolux Original TFT Display Module AT070TN94 RGB 50 Pin Interface 0

Product Details

7 Inch Innolux Original TFT Display Module AT070TN94 RGB 50 Pin Interface 1

TFT Applications

This 7 inch tft displays are widely used for Industrial, Smart home,Medical, Automotive ,Intelligent and other applications.

7 Inch Innolux Original TFT Display Module AT070TN94 RGB 50 Pin Interface 3
