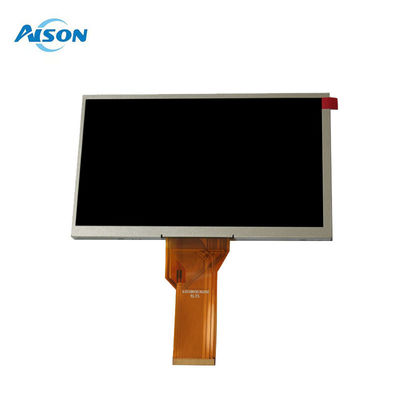

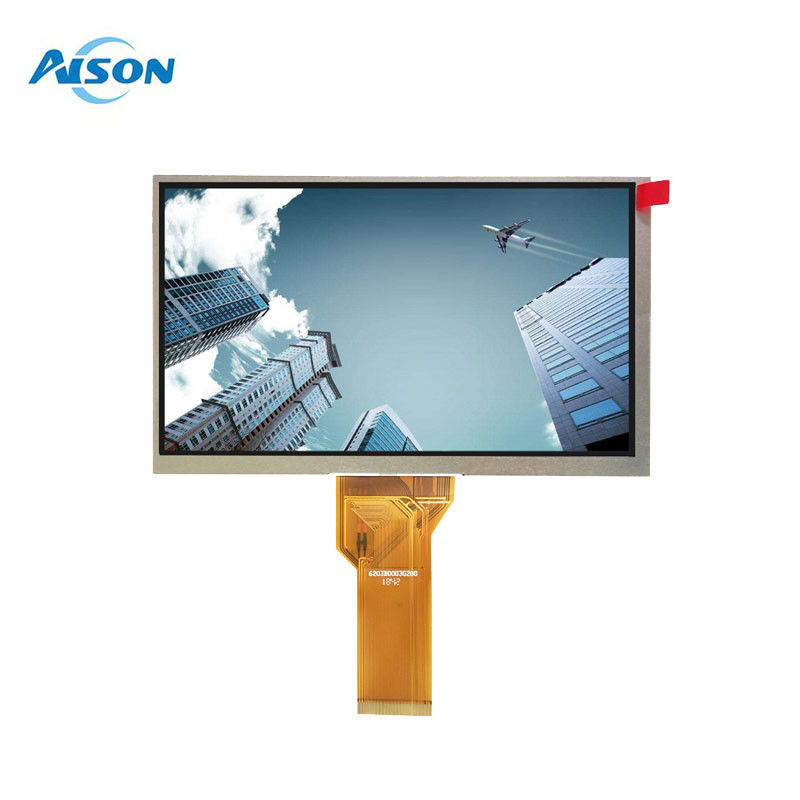

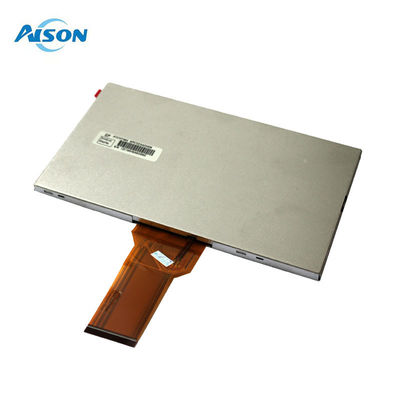

Innolux 7 inch 800X480 TFT LCD Display AT070TN92 RGB 50 Pin

Innolux 7 inch 800X480 TFT LCD Display AT070TN92 RGB 50 Pin
Innolux 7 inch 800X480 TFT LCD Display AT070TN92 RGB 50 Pin Innolux 7 inch 800X480 TFT LCD Display AT070TN92 RGB 50 Pin Innolux 7 inch 800X480 TFT LCD Display AT070TN92 RGB 50 Pin

Large Image :  Innolux 7 inch 800X480 TFT LCD Display AT070TN92 RGB 50 Pin

Product Details:
Place of Origin: Guangdong,China
Brand Name: AISON
Certification: ISO9001 / ISO14000/ROHS
Model Number: AT070TN92
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable based on quantity
Packaging Details: Carton/Blister Package
Delivery Time: 7 working days
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 200k/month
Contact Now

Innolux 7 inch 800X480 TFT LCD Display AT070TN92 RGB 50 Pin

Description
Name: Innolux 7 Inch TFT LCD Display Resolution: 800x480
Outline Dimension: 164.9(W)×100(H) ×6(D) Mm Active Area: 154.08(W)×85.92(H) Mm
Interface: 24 Bit RGB Brightness: 250 Cd/m2
Operating Mode: TN, Normally White, Transmissive View Direction: 6 O'clock
Operating Temperature: -20 ~ 70 °C Storage Temperature: -30 ~ 80 °C
Highlight:

800X480 Original LCD Display

,

Original LCD Display 7 Inch

,

Car LCD Display 50 Pin

7 inch Original TFT LCD Display AT070TN92 800X480 RGB 50 Pin Interface



General Description

  • High-Quality Display: The AT070TN92 boasts a 7-inch 800x480 TFT LCD display, offering a vibrant 16.7 million color palette for a rich visual experience.
  • Optimized for Digital Applications: This display is suitable for digital applications, making it an ideal choice for user input (e.g., "a digital signage project").
  • Wide Viewing Angle: Enjoy a wide viewing angle of 70/70/50/70 (typ.) with a contrast ratio of 500:1, ensuring a clear display from multiple perspectives.
  • Flexible Interface Options: The display features multiple interface options, including parallel RGB (1 ch, 8-bit), FPC, and 50-pin, providing users with flexibility in integration (e.g., "for a custom PCB design").
  • Compact and Reliable: With a compact 7-inch design and a reliable brand like YJ, this display is perfect for applications such as automotive, digital signage, and more.



General Data

Model Name Innolux 7 inch TFT Display
Resolution 800*(RGB)*480
Model Size (W*H*T)mm 164.9(H)×100(V)×6(D) mm
Display Area (W*H)mm 154.08(W)×85.92(H) mm
Interface RGB
Display Mode Normally White TN,Transmissive
Viewing Direction 12:00 o'clock
Brightness 250 cd/m2
Pin number 50
Viewing Angle 70/70/50/70
Operating temperatures -20 ~ 70 °C
Storage temperatures -30 ~ 80 °C





Drawing



Innolux 7 inch 800X480 TFT LCD Display AT070TN92 RGB 50 Pin 0



Product Details



Innolux 7 inch 800X480 TFT LCD Display AT070TN92 RGB 50 Pin 1Innolux 7 inch 800X480 TFT LCD Display AT070TN92 RGB 50 Pin 2



TFT Applications



This 7 inch tft displays are widely used for Industrial, Smart home,Medical, Automotive ,Intelligent and other applications.





Innolux 7 inch 800X480 TFT LCD Display AT070TN92 RGB 50 Pin 3



Innolux 2025 Industrial control lcd modules



Innolux 2025 Industrial control lcd modules
Size Part # Resolution Screen ratio Brightness Operating temp B/L Lifetime Other Specs
7 G070ACE-L01 800*480 15:9 500 -30~85 50K 800:1, LVDS,72%,Outline:170(H)x110(V)x6(T)mm
G070ACE-LH1 15:9 1000 -30~85 50K 800:1, LVDS,58%
10.1 G101ICE-LH1 1280*800 16:10 500 -30~80 50K 800:1, LVDS,72%,Vin 5V,Reverse scan
10.4 G104ACE-LH1 800*600 4:3 400 -30~85 50K 1000:1, LVDS,72%,Vin 5V,Reverse scan
G104XCE-L01 1024*768 4:3 500 -30~85 50K 1000:1, LVDS,72%,Reverse scan
12.1 G121ACE-LH2 800*600 4:3 600 -30~85 50K 1000:1, LVDS,72%,Reverse scan
G121ACE-PH1 4:3   -30~85   1000:1, LVDS(PCBI),72%,Reverse scan,Opencell
G121XCE-L01 1024*768 4:3 600 -30~85 50K 1000:1, LVDS,72%,Reverse scan
G121XCE-P01 4:3   -30~85 50K 1000:1, LVDS(PCBI),72%,Reverse scan,Opencell
G121XCE-LH1 4:3 1300 -30~80 50K 1000:1, LVDS,72%,Reverse scan
G121ICE-L01 1280*800 16:10 600 -30~80 50K 1000:1, LVDS,72%
G121ICE-L02 16:10 400 -20~70 30K 1000:1, LVDS,72%
G121ICE-P01 16:10   -30~80   1000:1, LVDS(PCBI),72%,Opencell
15 G150XNE-L01 1024*768 4:3 500 -30~80 50K 2500:1, LVDS,72%,Reverse scan
G150XNE-L02 4:3 350 -30~70 50K 2500:1, LVDS,72%,Reverse scan
G150XNE-L03 4:3 300 -20~70 50K 2500:1, LVDS,72%,Reverse scan
G150XJE-P01 4:3   -30~80   2500:1, LVDS(PCBI),72%,Reverse scan,Opencell
15.6 G156HCE-E01 1920*1080 16:9 450 0~60 50K 1000:1, eDP,72%
G156HCE-L01 16:9 450 -30~85 50K 800:1, LVDS,72%,Reverse scan
N156HCE-P01 16:9   -30~85   800:1, LVDS(PCBI),72%,Reverse scan
G156HCE-LN1 16:9 350 -20~70 50K 800:1, LVDS,72%
18.5 G185BCE-L01 1366*768 16:9 400 0~60 50K 1000:1, LVDS,72%
23.8 G238HCJ-L01 1920*1080 16:9 350 0~50 30K 1000:1, LVDS,w/o CNV,72%
