Product Details:
|
| Name: | BOE 18.5 Inch TFT Display | Resolution: | 1366x768 |
|---|---|---|---|
| Outline Dimension: | 430.4 X254.6 X11.4 Mm | Active Area: | 409.8x230.4mm |
| Interface: | LVDS 30PIN | Viewing Angle: | 89/89/89/89 |
| Brightness: | 250 Cd/m2 | Display Mode: | Normally Black |
| Viewing Direction: | ALL/IPS | Operating Temperatures: | 0 To 50 Degree |
| Storage Temperatures: | -20 To 60 Degree | ||
| Highlight: | 18.5 Inch LCD Panel,LCD Panel 1366x768,Color TFT LCD Screen 250 cd/m2 |
||

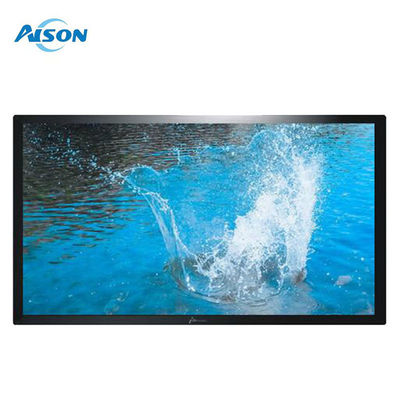

BOE 18.5 Inch LCD Panel 1366x768 Color TFT LCD Dispaly 250 cd/m2 for Industrial LVDS or EDP Interface
1.1 Introduction
DV185WHM-NM1 is a color active matrix TFT LCD module using amorphous siliconTFT's (Thin Film Transistors) as an active switching devices. This module has a 18.5 inch diagonally measured active area with WXGA resolutions (1366 horizontal by 768 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display 16.7M colors. The TFT-LCD panel used for this module is adapted for a low reflection and higher color type.
1.2 Features
1, LVDS Interface with 1 pixel / clock
2, High-speed response
3, Low power consumption
4, 6-bit (Hi-FRC) color depth, display 16. 7M colors
5, Incorporated edge type back-light (One Light Bar)
6, High luminance and contrast ratio, low reflection and normal viewing angle
7, DE (Data Enable) only
8, RoHSES compliant
General Data
| Model Name | BOE 18.5 inch TFT Display |
| Resolution | 1366x768 |
| Model Size (W*H*T) | 430.4 x254.6 x11.4 mm |
| Display Area (W*H) | 409.8x230.4mm |
| Interface | LVDS |
| Display Mode | Normally Black,Transmissive |
| Viewing | IPS |
| Brightness | 250 cd/m2 |
| Pin number | 30 pin |
| Contrast Ratio | 1000:1 |
| Operating temperatures | 0 to 50 degree |
| Storage temperatures | -20 to 60 degree |
Drawing
Product Details
TFT Applications:
Desktop Type of PC & Workstation Use
Slim-Size Display for Stand-alone Monitor
Display Terminals for Control System
Monitors for Process Controller
