Product Details:
|
| Name: | Bar Type LCD Display | Interface: | RGB |
|---|---|---|---|
| Contrast Ratio: | 1000:1 | Size: | 3.38 Inch |
| Active Area: | 23.22*82.56 Mm | Resolution: | 180*640 Pixels |
| Highlight: | 3.38 Inch Bar Type LCD Display,Bar Type LCD Display 180*640,Color LCD Display Module 3.38 Inch |
||

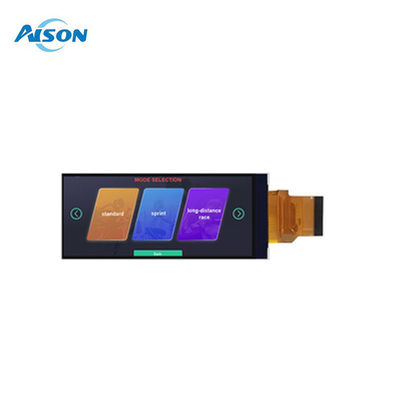

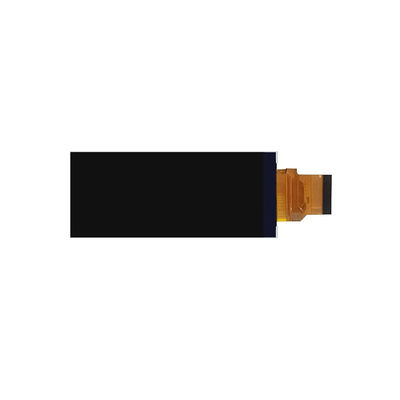

Ultra wide 3.38 inch bar LCD display 180*640 for smart home, IoT
1. General Specifications
Z0338VG01 is a diagonal 3.38" color active LCD module with LED backlight with RGB interface. This module is a transmissive type display operating in the normally white mode. It supports 180*640 resolutions and can display up to 16.7M colors (8-bit). Each pixel is divided into Red, Green and Blue sub-pixels which are arranged in vertical stripe.
|
Item |
Contents |
|
PN |
Z0338VG01 |
|
Size |
3.38 inch |
|
Outline Size |
25.72*83.83*2.1 mm |
|
Active Area |
23.22*82.56 mm |
|
Resolution |
180*640 Pixels |
|
Aspect Ratio |
9:32 |
|
Viewing direction |
IPS, All |
|
Brightness |
300 cd/m² |
|
Contrast ratio |
1000:1 |
|
Interface |
RGB |
|
Operation temperature |
-20 to 70°C |
|
Storage temperature |
-30 to 80°C |
2. Optical Specifications
3. Drawing picture
4. Application
Consumer electronics/automotive/telecoms and data transfer/medical instruments/security management/signs and display/point of sale, EPOS/energy controls/amusement machines/white goods/ Home appliance
