Product Details:
|
| Product Name: | 3.99 Inch Bar Type LCD Display | Resolution: | 400x960 |
|---|---|---|---|
| Module Size: | M | Active Area: | 39.18 X 94.032mm |
| Interface: | 3SPI+18BIT RGB | Luminance: | 350 Cd/m2 |
| View Direction: | ALL/IPS | Working Temperatures: | -20 To 70 Degree |
| Storage Temperatures: | -30 To 80 Degree | ||
| Highlight: | 400x960 Bar Type LCD Display,Bar Type LCD Display 4 Inch,SPI LCD Display 350 Cd/M2 |
||

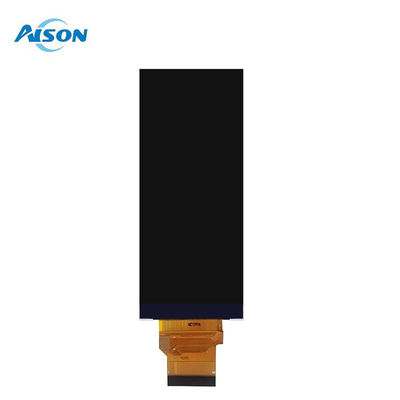

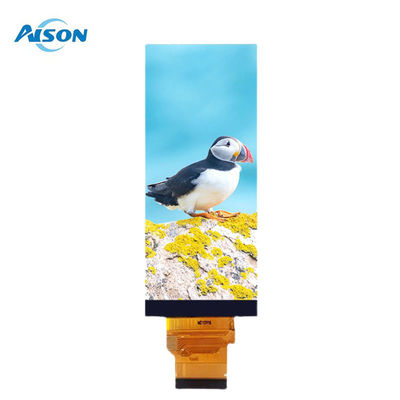

4 inch Bar Type TFT LCD 400x960 Resolution RGB Interface
General Description
Z0399HD01 is a portrait mode 4 inch stretched bar type TFT LCD with a resolution of 400X960pixels.Its interface is 3SPI+18 Bit RGB 40Pin with a contrast Ratio 1500:1.
The module operates in temperatures ranging from -20℃ to +70℃, and can be stored in temperatures from -30℃ to +80℃. This bar type TFT module is ideal for use in electronic door locks, massage chair control panels, and other devices that require a stretched display screen.
General Data
| Model Name | 4 inch Stretched Bar LCD Display |
| Resolution | 400x960 |
| Model Size (W*H*T)mm | 42.9*102.08*2.25 |
| Display Area (W*H)mm | 39.18 x 94.032 |
| Interface | 3SPI+18 Bit RGB |
| Display Mode | Normally Black,Transmissive |
| Viewing | IPS |
| Brightness | 350 cd/m2 |
| Pin number | 40 pin |
| Driver IC | ST7701S |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications:
The module operates in temperatures ranging from -20℃ to +70℃, and can be stored in temperatures from -30℃ to +80℃. This bar type TFT module is ideal for use in electronic door locks, massage chair control panels, and other devices that require a stretched display screen.
