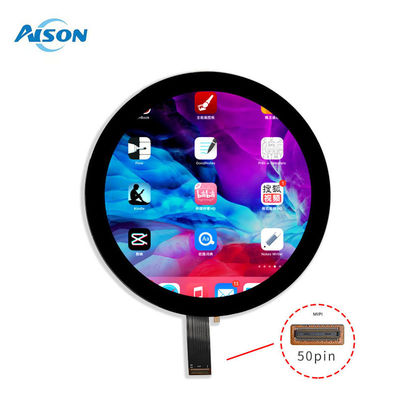

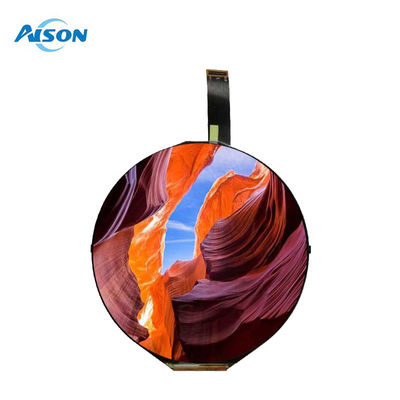

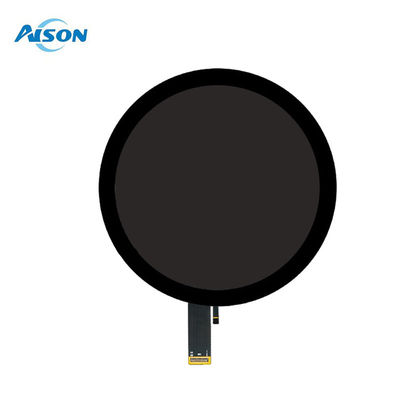

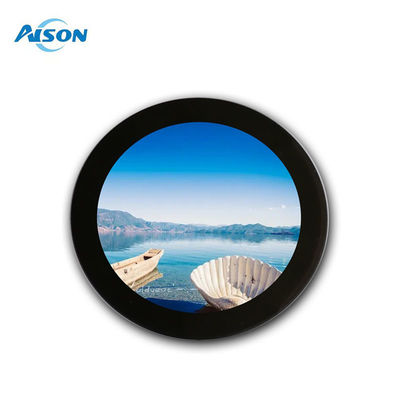

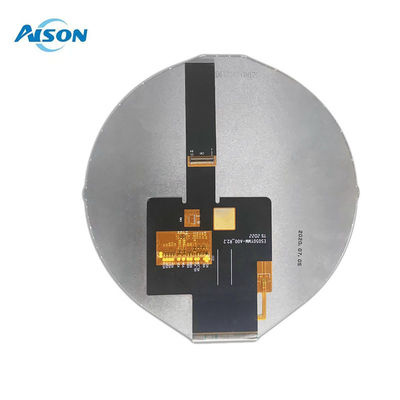

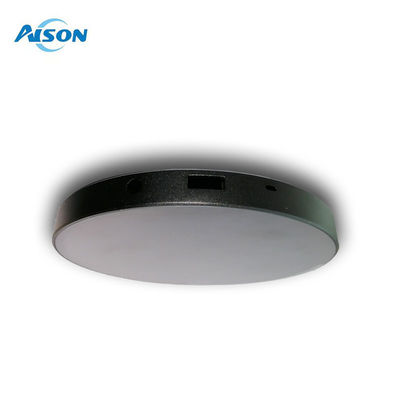

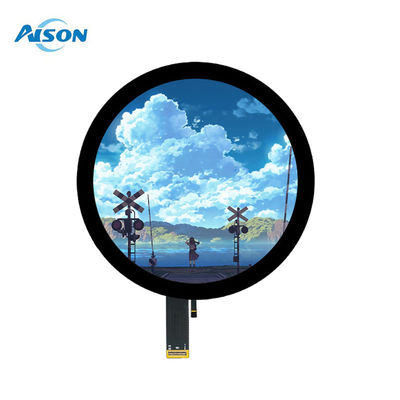

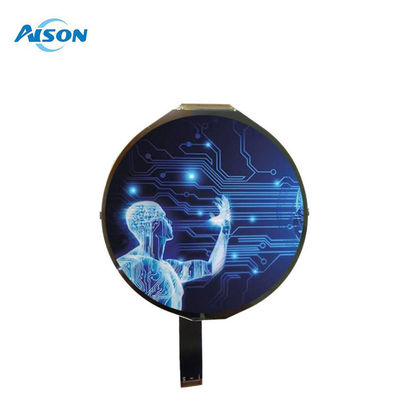

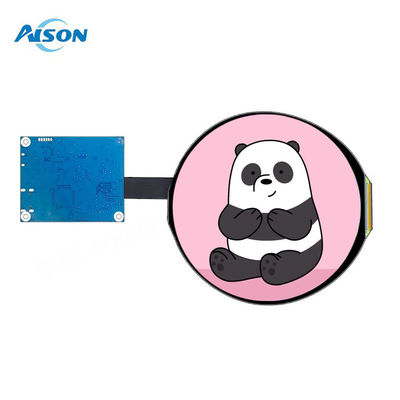

5 inch 1080X1080 Round TFT Display 5'' Circular Monitor Screen With MIPI Interface

5 inch 1080X1080 Round TFT Display 5'' Circular Monitor Screen With MIPI Interface
5 inch 1080X1080 Round TFT Display 5'' Circular Monitor Screen With MIPI Interface
5 inch 1080X1080 Round TFT Display 5'' Circular Monitor Screen With MIPI Interface 5 inch 1080X1080 Round TFT Display 5'' Circular Monitor Screen With MIPI Interface 5 inch 1080X1080 Round TFT Display 5'' Circular Monitor Screen With MIPI Interface 5 inch 1080X1080 Round TFT Display 5'' Circular Monitor Screen With MIPI Interface 5 inch 1080X1080 Round TFT Display 5'' Circular Monitor Screen With MIPI Interface 5 inch 1080X1080 Round TFT Display 5'' Circular Monitor Screen With MIPI Interface 5 inch 1080X1080 Round TFT Display 5'' Circular Monitor Screen With MIPI Interface 5 inch 1080X1080 Round TFT Display 5'' Circular Monitor Screen With MIPI Interface 5 inch 1080X1080 Round TFT Display 5'' Circular Monitor Screen With MIPI Interface 5 inch 1080X1080 Round TFT Display 5'' Circular Monitor Screen With MIPI Interface

Large Image :  5 inch 1080X1080 Round TFT Display 5'' Circular Monitor Screen With MIPI Interface

Product Details:
Place of Origin: Guangdong,China
Brand Name: AISON
Certification: ISO9001 / ISO14000/ROHS
Model Number: Z050YMM-J40-68P0
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Blister Package/Carton
Delivery Time: 7 working days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 100k/month
Contact Now

5 inch 1080X1080 Round TFT Display 5'' Circular Monitor Screen With MIPI Interface

Description
Name: 5 Inch Round TFT Display Resolution: 1080x1080
Outline Dimension: 136.531*132.208*1.98mm Active Area: 127.008 (H) *127.008 (V)mm
Interface: MIPI Viewing Angle: 80/80/80/80
Brightness: 350cd/m2 Operating Temperatures: -20 To 70 Degree
Highlight:

1080X1080 Round TFT Display

,

Round TFT Display 350 Cd/M2

,

Circular Monitor Screen 5 Inch

5 inch BOE Round TFT Display1080X1080 with MIPI Interface 350cd/m2



General Description
1.1 Introduction
ZS050YMM-N40 is a color active matrix TFT-LCD Panel using LTPS TFT's (Thin Film Transistors) as an active switching devices. This model is composed of a TFT-LCD Panel, a driving circuit and a back light system. It is a transmissive type display operating in the normal black. This TFT-LCD has a 5.0 inch diagonally measured active area with FHD resolutions (1080 horizontal by 1080 vertical pixel array). Each pixel is divided into Red,Green, Blue dots which are arranged in 1pixel 2 domain and this panel can display 16.7M colors.

1.2 Features
0.2t Glass (Single)
High contrast ratio and wide viewing angle
Module Design
RoHS Compliant


General Data

Product Name 5 inch round TFT Display
Number of Pixel 1080x1080
Interface MIPI
Luminance(cd/m2) 350cd/m2
Active area 127.008 (H) *127.008 (V)mm
LCM (W x H x D) 136.531*132.208*1.98mm
Viewing Direction(eye) ALL/IPS
Operating temperatures -20 to 70 degree
Storage temperatures -30 to 80 degree


Drawing
5 inch 1080X1080 Round TFT Display 5'' Circular Monitor Screen With MIPI Interface 0
5 inch 1080X1080 Round TFT Display 5'' Circular Monitor Screen With MIPI Interface 1

Product Details
5 inch 1080X1080 Round TFT Display 5'' Circular Monitor Screen With MIPI Interface 25 inch 1080X1080 Round TFT Display 5'' Circular Monitor Screen With MIPI Interface 3
