Product Details:
|
| Name: | 3.99 Inch Bar Type LCD Display | Resolution: | 400x960 |
|---|---|---|---|
| Outline Dimension: | 50.5x108.58x3.2mm | Active Area: | 39.18 X 94.032mm |
| Interface: | 3SPI+18 Bit RGB | Brightness: | 300 Cd/m2 |
| Display Mode: | Normally Black | Operating Temperatures: | -20 To 70 Degree |
| Storage Temperatures: | -30 To 80 Degree | Touch: | PCAP Touch |
| Highlight: | 3.99 Inch Bar Type LCD Display,Bar Type LCD Display 400x960,PCAP Touch Screen 40 pin |
||

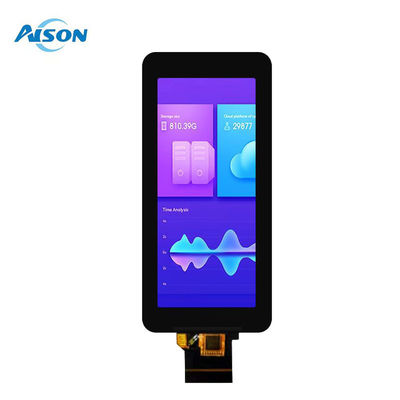

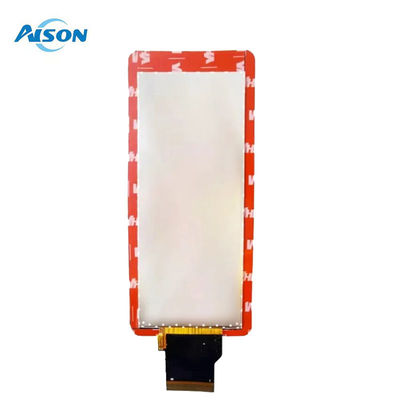

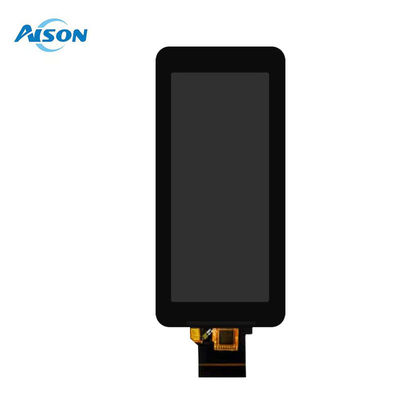

3.99 inch Stretched Bar LCD Display 400x960 with Capacitive Touch
General Description
General Data
| Model Name | 3.99 inch Stretched Bar Display |
| Resolution | 400x960 |
| Model Size (W*H*T) |
50.5x108.58x3.2mm
|
| Display Area (W*H) | 39.18 x 94.032 mm |
| Interface | 3SPI+18 Bit RGB |
| Display Mode | Normally Black,Transmissive |
| Viewing | IPS |
| Brightness | 300 cd/m2 |
| Pin number | 40 pin |
| Driver IC | ST7701S |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications:
The module operates in temperatures ranging from -20℃ to +70℃, and can be stored in temperatures from -30℃ to +80℃. This bar type TFT module is ideal for use in electronic door locks, massage chair control panels, and other devices that require a stretched display screen.
