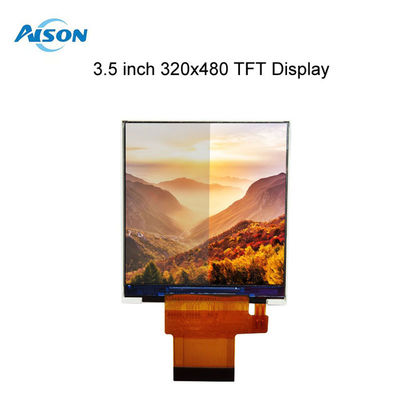

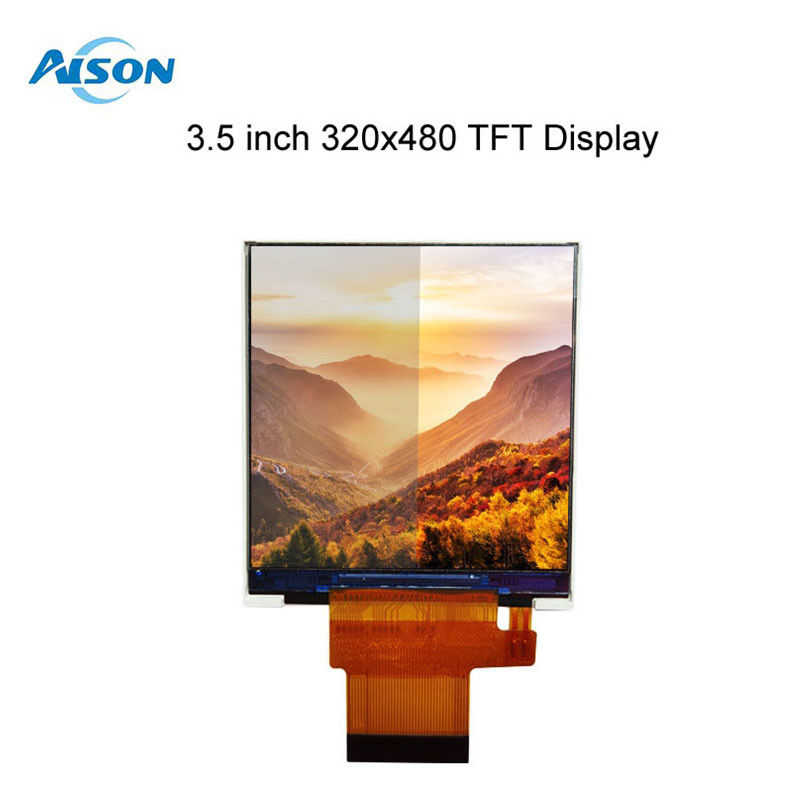

3.5 Inch 320x480 Portrait TN TFT LCD Display SPI Interface

Large Image : 3.5 Inch 320x480 Portrait TN TFT LCD Display SPI Interface

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	AISON
Certification:	ISO9001 / ISO14000/ROHS
Model Number:	Z035HV16

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Carton/Blister
Delivery Time:	7 working days
Payment Terms:	T/T, Western Union, MoneyGram,Paypal
Supply Ability:	200k/month

Contact Now

3.5 Inch 320x480 Portrait TN TFT LCD Display SPI Interface

Description

Name:	3.5 Inch Portrait TFT Module	Resolution:	320x480
Outline Dimension:	54.86（W）* 83.43（H） * 2.35(T)	Active Area:	48.96* 73.44mm
Interface:	SPI	Brightness:	300 Cd/m2
Display Mode:	TFT,Normally White	Operating Temperatures:	-20 To 70 Degree
Storage:	-30 To 80 Degree	Driver IC:	ST7365P
Backlight:	6 LEDs
Highlight:	3.5 inch TFT LCD display SPI , 320x480 portrait TFT LCD , TN TFT LCD display module

3.5 Inch 320x480 Portrait TN TFT LCD Display SPI Interface

Display General Description

Z035HV16 is a 3.5-inch TFT LCD module with an TN panel. This module supports MIPI interfaces. This portrait display features a resolution of 320×480 dots and a brightness of 200 nits (typical value) with PCAP touch screen.

The 3.5 inch portrait tft display is 12 o'clock viewing direction, can operate at temperatures from -20℃ to +70℃, and its storage temperatures range from -30℃ to +80℃. .

General Data

Product Name	3.5 inch TFT Display
Number of Pixel	320x480
Interface	SPI
Luminance(cd/m2)	300 cd/m2
Active area	48.96* 73.44mm
LCM (W x H x D)	54.86(W)* 83.43(H) * 2.35(T)
Viewing Direction(eye)	12 O'clock
Operating temperatures	-20 to 70 degree
Storage temperatures	-30 to 80 degree

Drawing
3.5 Inch 320x480 Portrait TN TFT LCD Display SPI Interface 0

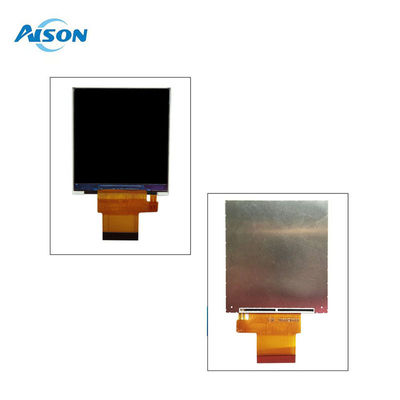

Product Details

3.5 Inch 320x480 Portrait TN TFT LCD Display SPI Interface 1

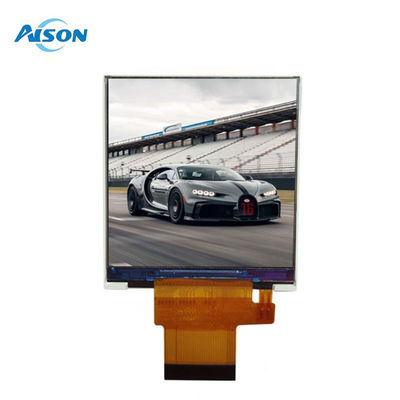

TFT Applications

Overall, Z035HV14 is a versatile and high-performance display screen that is suitable for a wide range of applications, including industrial control systems, home automation, and portable electronics.

3.5 Inch 320x480 Portrait TN TFT LCD Display SPI Interface 3
