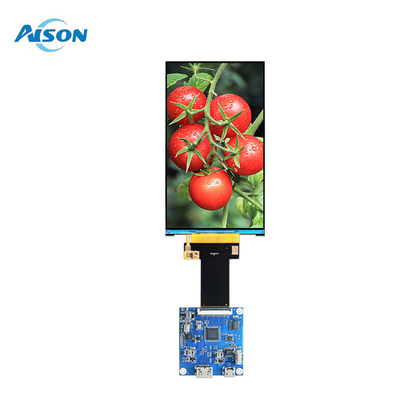

5.5 Inch IPS LCD TFT Touch Screen 720*1280 HD LCD Dipslay 3SPI+RGB18BIT Interface

Large Image : 5.5 Inch IPS LCD TFT Touch Screen 720*1280 HD LCD Dipslay 3SPI+RGB18BIT Interface

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	AISON
Certification:	ISO9001 / ISO14000/ROHS
Model Number:	ZHD55015C40

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	10~20usd/pc
Packaging Details:	Blister Package/Carton
Delivery Time:	7 working days
Payment Terms:	T/T, Western Union, MoneyGram,Paypal
Supply Ability:	200k/month

Contact Now

5.5 Inch IPS LCD TFT Touch Screen 720*1280 HD LCD Dipslay 3SPI+RGB18BIT Interface

Description

LCM Name:	5.5 Inch 720x1280 LCD Module	Number Of Dots:	720x1280
LCM Outline Size:	71.04x129.56x1.72mm	Active Area:	68.04 (H) X 120.96 (V)mm
Interface:	3SPI+RGB18BIT	Brightness:	300 Cd/m2
Display Mode:	TFT, Normally Black, Transmissive	Viewing Direction:	ALL/IPS
Operating Temperatures:	-20 To 70 ℃	Storage Temperatures:	-30 To 80 ℃
Driver IC:	NV3052CGRB
Highlight:	5.5 inch IPS LCD touch screen , 720*1280 HD TFT display , 3SPI+RGB18BIT LCD interface

5.5 Inch IPS LCD TFT Touch Screen 720*1280 HD LCD Dipslay 3SPI+RGB18BIT Interface

Display General Description

1) Size: 5.5 Inch
2) Resolution: 720X1280
3) Display Mode: TFT
4) Interface Mode: RGB 40 PIN
5) Brightness: 300cd/㎡
6) View Angle: All O’clock
7) Driver IC: NV3052CGRB
8) Operation Temperature: -20~70℃
9) Storage Temperature: -30~80℃

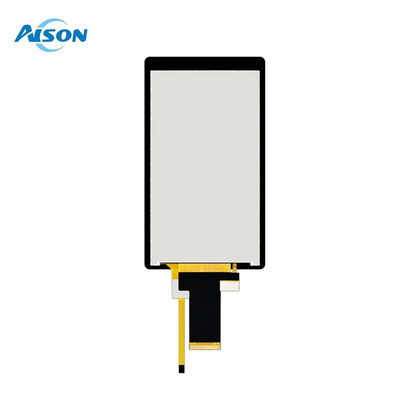

This 5.5-inch IPS TFT display has a resolution up to 720X1280, is equipped with a MIPI interface, and has a brightness 300cd/m². The effective display area is 68.04 (H) x 120.96 (W) mm, and the overall size is 71.04x129.56x1.72mm. It is equipped with a capacitive touch screen (CTP), the operating temperature range is -20°C to +70°C, and the storage temperature range is -30°C to +80°C. It is suitable for special applications in industrial scenarios and supports glove touch and harsh environments.

General Data

Item	5 inch 720x1280 LCD Module
Resolution	720*1280
Brightness	300 cd/m2
Operating Temperature	-20~70C
Display Type	IPS
Mounting Type	Socket
Communication interface	3SPI+RGB18BIT
Driver Ic	NV3052CGRB
Outline Dimension	71.04x129.56x1.72mm
Active Area	68.04 (H) x 120.96 (V)
Touch panel	Touch Panel Optional
Viewing Angle	ALL

Drawing

5.5 Inch IPS LCD TFT Touch Screen 720*1280 HD LCD Dipslay 3SPI+RGB18BIT Interface 0

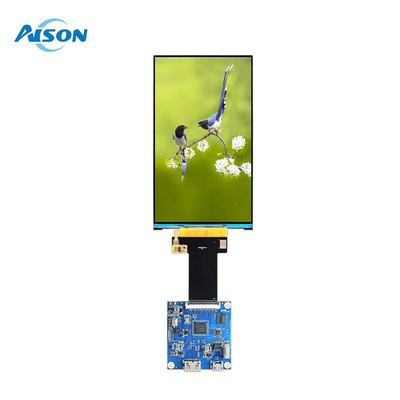

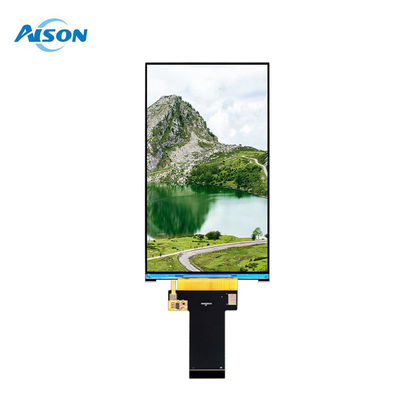

Product Details

5.5 Inch IPS LCD TFT Touch Screen 720*1280 HD LCD Dipslay 3SPI+RGB18BIT Interface 2

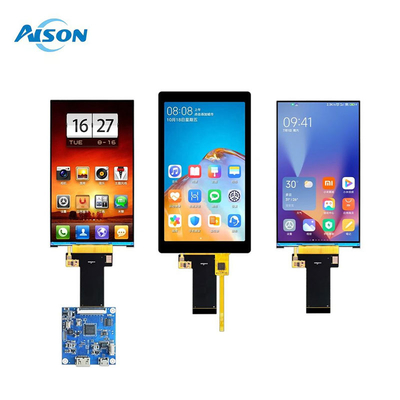

TFT Applications

The 5.5 inch 720x1280 HD TFT Displays are widely used for Industrial, Smart home,Medical, Automotive ,Intelligent and other applications.

5.5 Inch IPS LCD TFT Touch Screen 720*1280 HD LCD Dipslay 3SPI+RGB18BIT Interface 5
