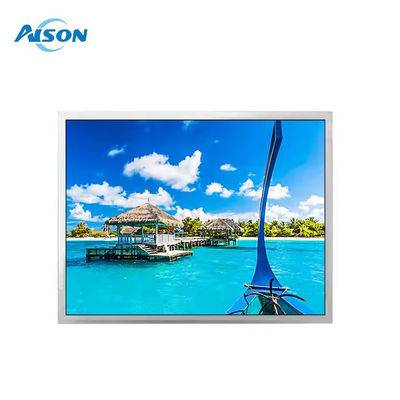

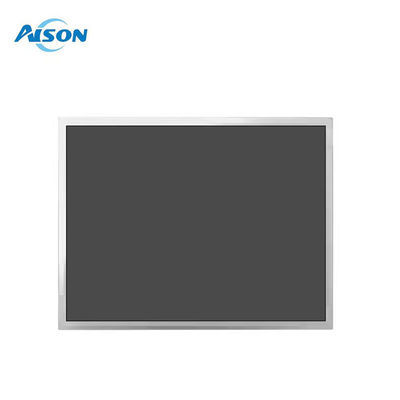

15 inch 1024x768 Innolux G150XNE-L01 TFT LCD Display LVDS Interface Industrial Automotive Display

Large Image : 15 inch 1024x768 Innolux G150XNE-L01 TFT LCD Display LVDS Interface Industrial Automotive Display

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	AISON
Certification:	ISO9001 / ISO14000/ROHS
Model Number:	G150XNE-L01

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Blister Package/Carton
Delivery Time:	7 working days
Payment Terms:	T/T, Western Union, MoneyGram,Paypal
Supply Ability:	300k/month

Contact Now

15 inch 1024x768 Innolux G150XNE-L01 TFT LCD Display LVDS Interface Industrial Automotive Display

Description

LCM:	15 Inch Innolux G150XNE-L01 LCD Display	Resolution:	1024X768
LCM Outline:	326.5(W)×253.5(H)×9.6(D) Mm	Active Area:	304.128(W)x228.096(H) Mm
Signal Interface:	LVDS 20 Pin	Luminance:	500cd/m2
Display Mode:	TFT,Normally Black	Viewing Direction:	ALL/IPS
Operating Temp:	-30 ~ 80 °C	Storage Temp:	-40 ~ 85 °C
Application:	Industrial Automotive Display
Highlight:	G150XNE-L01 TFT LCD Display , Industrial Automotive LCD Display , LVDS Interface LCD Display

15 inch 1024x768 Innolux G150XNE-L01 TFT LCD Display LVDS Interface Industrial Automotive Display

General Description

G150XNE-L01 is a 15.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -30 ~ 80°C , a storage temperature range of -40 ~ 85°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized in the following: Wide Temperature, WLED Backlight, Life ≥ 70K hours, With LED Driver, Upside I/F, 180° Reverse, 6/8 bit, Matte , PSWG. Based on its features, it is recommend that this model be applied to Industrial, Automotive Display etc.

General Data

Diagonal Size	15.0"	Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)×768, XGA 85PPI	Pixel Format	RGBW Vertical Stripe
Active Area	304.128(W)×228.096(H) mm	Bezel Opening	307.4(W)×231.3(H) mm
Outline(mm)	326.5(W)×253.5(H)×9.6(D) mm	Treatment	Antiglare, Hard coating (3H)
Brightness	500 cd/m² (Typ.)	Contrast Ratio	2500:1 (Typ.) (TM)
Viewing Angle	88/88/88/88 (Typ.)(CR≥10)	Response Time	13/5 (Typ.)(Tr/Td)
Best View on	Symmetry	Operating Mode	NPVA, Normally Black, Transmissive
Display Colors	262K/16.7M 72% NTSC	Light Source	WLED , 70K hours , With LED Driver
Panel Weight	0.97/1.00Kgs (Typ./Max.)	Touch screen	Without
Frame Rate	60Hz	Voltage Supply	3.3V (Typ.)
Interface Type	LVDS (1 ch, 6/8-bit) 20 pins Connector
Environment	Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -40 ~ 85 °C

Product Details

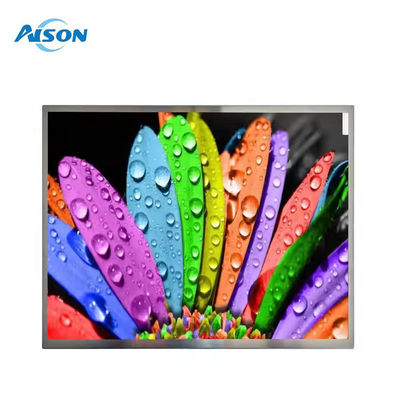

15 inch 1024x768 Innolux G150XNE-L01 TFT LCD Display LVDS Interface Industrial Automotive Display 0

TFT Applications:

The 15 inch Innolux TFT LCD displays are suitable for Industrial, Automotive Display etc.

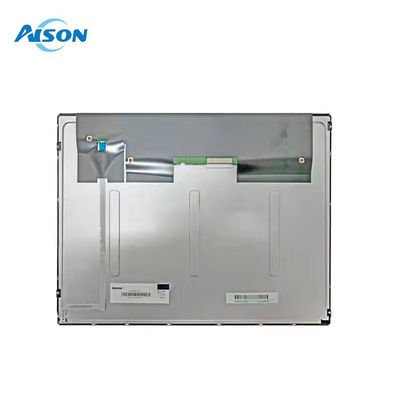

15 inch 1024x768 Innolux G150XNE-L01 TFT LCD Display LVDS Interface Industrial Automotive Display 2

Innolux 2025 Industrial control lcd modules
Size	Part #	Resolution	Screen ratio	Brightness	Operating temp	B/L Lifetime	Other Specs
7	G070ACE-L01	800*480	15:9	500	-30~85	50K	800:1, LVDS,72%,Outline:170(H)x110(V)x6(T)mm
7	G070ACE-LH1	800*480	15:9	1000	-30~85	50K	800:1, LVDS,58%
10.1	G101ICE-LH1	1280*800	16:10	500	-30~80	50K	800:1, LVDS,72%,Vin 5V,Reverse scan
10.4	G104ACE-LH1	800*600	4:3	400	-30~85	50K	1000:1, LVDS,72%,Vin 5V,Reverse scan
10.4	G104XCE-L01	1024*768	4:3	500	-30~85	50K	1000:1, LVDS,72%,Reverse scan
12.1	G121ACE-LH2	800*600	4:3	600	-30~85	50K	1000:1, LVDS,72%,Reverse scan
	G121ACE-PH1	800*600	4:3		-30~85		1000:1, LVDS(PCBI),72%,Reverse scan,Opencell
	G121XCE-L01	1024*768	4:3	600	-30~85	50K	1000:1, LVDS,72%,Reverse scan
	G121XCE-P01		4:3		-30~85	50K	1000:1, LVDS(PCBI),72%,Reverse scan,Opencell
	G121XCE-LH1		4:3	1300	-30~80	50K	1000:1, LVDS,72%,Reverse scan
	G121ICE-L01	1280*800	16:10	600	-30~80	50K	1000:1, LVDS,72%
	G121ICE-L02		16:10	400	-20~70	30K	1000:1, LVDS,72%
	G121ICE-P01		16:10		-30~80		1000:1, LVDS(PCBI),72%,Opencell
15	G150XNE-L01	1024*768	4:3	500	-30~80	50K	2500:1, LVDS,72%,Reverse scan
	G150XNE-L02		4:3	350	-30~70	50K	2500:1, LVDS,72%,Reverse scan
	G150XNE-L03		4:3	300	-20~70	50K	2500:1, LVDS,72%,Reverse scan
	G150XJE-P01		4:3		-30~80		2500:1, LVDS(PCBI),72%,Reverse scan,Opencell
15.6	G156HCE-E01	1920*1080	16:9	450	0~60	50K	1000:1, eDP,72%
	G156HCE-L01		16:9	450	-30~85	50K	800:1, LVDS,72%,Reverse scan
	N156HCE-P01		16:9		-30~85		800:1, LVDS(PCBI),72%,Reverse scan
	G156HCE-LN1		16:9	350	-20~70	50K	800:1, LVDS,72%
18.5	G185BCE-L01	1366*768	16:9	400	0~60	50K	1000:1, LVDS,72%
23.8	G238HCJ-L01	1920*1080	16:9	350	0~50	30K	1000:1, LVDS,w/o CNV,72%
