Innolux LCD Panel G150XNE-L01 G150XNE-L02 G150XNE-L03 15.0 Inch 1024x768 LVDS Industrial Automotive Display

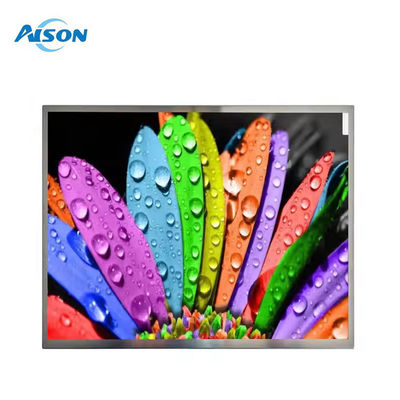

Large Image : Innolux LCD Panel G150XNE-L01 G150XNE-L02 G150XNE-L03 15.0 Inch 1024x768 LVDS Industrial Automotive Display

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	AISON
Certification:	ISO9001 / ISO14000/ROHS
Model Number:	G150XNE-L01

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Blister Package/Carton
Delivery Time:	7 working days
Payment Terms:	T/T, Western Union, MoneyGram,Paypal
Supply Ability:	300k/month

Contact Now

Innolux LCD Panel G150XNE-L01 G150XNE-L02 G150XNE-L03 15.0 Inch 1024x768 LVDS Industrial Automotive Display

Description

LCM:	Innolux 15 Inch LCD Panel G150XNE-L01	Resolution:	1024X768
Outline Size:	326.5(W)×253.5(H)×9.6(D) Mm	Active Area:	304.128(W)x228.096(H) Mm
Interface:	LVDS 20 Pin	Viewing Angle:	88/88/88/88 (Typ.)
Brightness:	500cd/m2	Display Mode:	Normally Black
Viewing Direction:	ALL/IPS	Operating Temp:	-30 ~ 80 °C
Storage Temp:	-40 ~ 85 °C
Highlight:	LVDS LCD Panel G150XNE-L01 , G150XNE-L01 LCD Panel , Industrial LCD Panel G150XNE-L01

Innolux LCD Panel G150XNE-L0115.0 Inch 1024x768 LVDS Industrial Automotive Display

General Description

G150XNE-L01 is a 15.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -30 ~ 80°C , a storage temperature range of -40 ~ 85°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized in the following: Wide Temperature, WLED Backlight, Life ≥ 70K hours, With LED Driver, Upside I/F, 180° Reverse, 6/8 bit, Matte , PSWG. Based on its features, it is recommend that this model be applied to Industrial, Automotive Display etc.

General Data

Brand Name

Chimei Innolux

Resolution

1024(RGB)x768, XGA 85PPI

Active Area

304.128(W)x228.096(H) mm

Outline Dimension

326.5(W)x253.5(H)x9.6(D) mm

Brightness

500 cd/m² (Typ.)

Viewing Angle

88/88/88/88 (Typ.)(CR≥10)

Interface Type

LVDS (1 ch, 6/8-bit) , 20 pins Connector

Contrast Ratio

2500:1 (Typ.) (TM)

Display mode

NPVA, Normally Black, Transmissive

Operating Temperature

-30 ~ 80 °C

Storage Temperature

-40 ~ 85 °C

Product Details

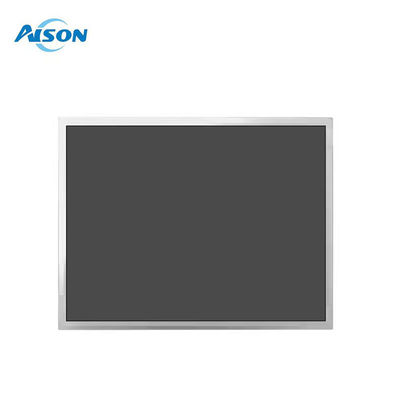

Innolux LCD Panel G150XNE-L01 G150XNE-L02 G150XNE-L03 15.0 Inch 1024x768 LVDS Industrial Automotive Display 0

TFT Applications:

The 15 inch Innolux TFT LCD displays are suitable for Industrial, Automotive Display etc.

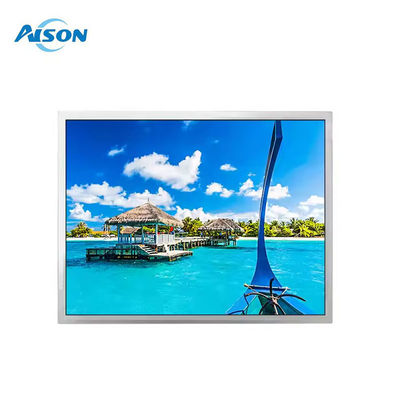

Innolux LCD Panel G150XNE-L01 G150XNE-L02 G150XNE-L03 15.0 Inch 1024x768 LVDS Industrial Automotive Display 2

Innolux 2025 Industrial control lcd modules
Size	Part #	Resolution	Screen ratio	Brightness	Operating temp	B/L Lifetime	Other Specs
7	G070ACE-L01	800*480	15:9	500	-30~85	50K	800:1, LVDS,72%,Outline:170(H)x110(V)x6(T)mm
7	G070ACE-LH1	800*480	15:9	1000	-30~85	50K	800:1, LVDS,58%
10.1	G101ICE-LH1	1280*800	16:10	500	-30~80	50K	800:1, LVDS,72%,Vin 5V,Reverse scan
10.4	G104ACE-LH1	800*600	4:3	400	-30~85	50K	1000:1, LVDS,72%,Vin 5V,Reverse scan
10.4	G104XCE-L01	1024*768	4:3	500	-30~85	50K	1000:1, LVDS,72%,Reverse scan
12.1	G121ACE-LH2	800*600	4:3	600	-30~85	50K	1000:1, LVDS,72%,Reverse scan
	G121ACE-PH1	800*600	4:3		-30~85		1000:1, LVDS(PCBI),72%,Reverse scan,Opencell
	G121XCE-L01	1024*768	4:3	600	-30~85	50K	1000:1, LVDS,72%,Reverse scan
	G121XCE-P01		4:3		-30~85	50K	1000:1, LVDS(PCBI),72%,Reverse scan,Opencell
	G121XCE-LH1		4:3	1300	-30~80	50K	1000:1, LVDS,72%,Reverse scan
	G121ICE-L01	1280*800	16:10	600	-30~80	50K	1000:1, LVDS,72%
	G121ICE-L02		16:10	400	-20~70	30K	1000:1, LVDS,72%
	G121ICE-P01		16:10		-30~80		1000:1, LVDS(PCBI),72%,Opencell
15	G150XNE-L01	1024*768	4:3	500	-30~80	50K	2500:1, LVDS,72%,Reverse scan
	G150XNE-L02		4:3	350	-30~70	50K	2500:1, LVDS,72%,Reverse scan
	G150XNE-L03		4:3	300	-20~70	50K	2500:1, LVDS,72%,Reverse scan
	G150XJE-P01		4:3		-30~80		2500:1, LVDS(PCBI),72%,Reverse scan,Opencell
15.6	G156HCE-E01	1920*1080	16:9	450	0~60	50K	1000:1, eDP,72%
	G156HCE-L01		16:9	450	-30~85	50K	800:1, LVDS,72%,Reverse scan
	N156HCE-P01		16:9		-30~85		800:1, LVDS(PCBI),72%,Reverse scan
	G156HCE-LN1		16:9	350	-20~70	50K	800:1, LVDS,72%
18.5	G185BCE-L01	1366*768	16:9	400	0~60	50K	1000:1, LVDS,72%
23.8	G238HCJ-L01	1920*1080	16:9	350	0~50	30K	1000:1, LVDS,w/o CNV,72%
