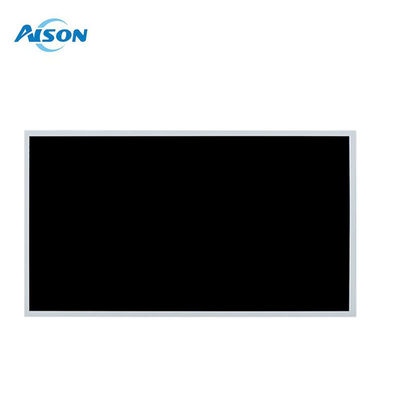

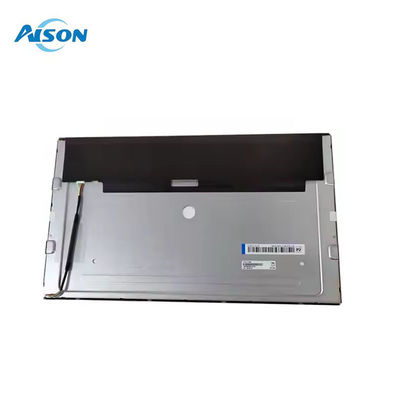

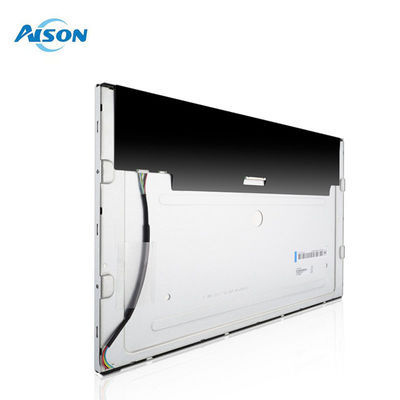

18.5 inch TFT LCD with LVDS Interface 30PIN High Resolution 1920x1080 Pixel 1200 nits Storage temperatures -30 80 °C

Large Image : 18.5 inch TFT LCD with LVDS Interface 30PIN High Resolution 1920x1080 Pixel 1200 nits Storage temperatures -30 80 °C

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	AISON
Certification:	ISO9001 / ISO14000/ROHS
Model Number:	Z185BMN181-H4801

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Blister Package/Carton
Delivery Time:	7 working days
Payment Terms:	T/T, Western Union, MoneyGram,Paypal
Supply Ability:	300k/month

Contact Now

18.5 inch TFT LCD with LVDS Interface 30PIN High Resolution 1920x1080 Pixel 1200 nits Storage temperatures -30 80 °C

Description

LCM:	BOE 18.5 Inch FHD LCD Display	Number Of Pixels:	1920x1080
Dimensional Outline:	430.37(H)254.6(V)11.2(D)	Active Area:	408.96 (H) × 230.04(V)mm
Interface:	LVDS 30PIN	Viewing Angle:	85/85/85/85
Brightness:	350 Cd/m2 Or Custom	Display Mode:	Normally Black
Viewing Direction:	ALL/IPS	Operating Temperatures:	-30 ~ 80 °C
Storage Temperatures:	-30 ~ 80 °C
Highlight:	30PIN TFT LCD , 1200 nits TFT LCD , LVDS Interface TFT LCD

BOE 18.5 inch FHD 1920X1080 TFT Display GV185FHM-N10-3M30 LVDS 30 Pin -30 ~ 80 Degree

General Description

1.1 Introduction

1.0.1 Introduction

Z185BMN181-H4801 is a color active matrix TFT LCD module using amorphous silicon FT's (Thin Film Transistors) as an active switching devices. This module has a 18.5 inch diago ally measured active area with FHD resolutions (1920 horizontal by 1080 vertical pixel array).Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display 16.7 M colors.

1.2 Features

LED back-light

LVDS interface

RoHS Compliant

16.7M color depth

FHD1920X1080

Wide Temperature

General Data

Model Name	18.5 inch TFT Display Module
Resolution	1920(RGB)×1080, FHD
Model Size (WHT)	430.37(H)254.6(V)11.2(D)
Display Area (W*H)	408.96(W)×230.04(H) mm
Interface	LVDS
Display Mode	Normally Black,Transmissive
Viewing	IPS
Brightness	120 cd/m2
Pin number	30 pin
Contrast Ratio	1200:1
Operating temperatures	-30 ~ 80 °C
Storage temperatures	-30 ~ 80 °C

Drawing

18.5 inch TFT LCD with LVDS Interface 30PIN High Resolution 1920x1080 Pixel 1200 nits Storage temperatures -30 80 °C 0

Product Details

18.5 inch TFT LCD with LVDS Interface 30PIN High Resolution 1920x1080 Pixel 1200 nits Storage temperatures -30 80 °C 1

TFT Applications:

The 18.5 inch FHD TFT display modules are suitable for many varied applications including industrial process control, factory automation, in-vehicle systems, instrumentation, point-of-sale systems, digital signage, and medical equipment.

18.5 inch TFT LCD with LVDS Interface 30PIN High Resolution 1920x1080 Pixel 1200 nits Storage temperatures -30 80 °C 4
