12.1 Inch 1280x800 Innolux G121ICE-L01 IPS Industrial LCD Module Display LVDS 30 Pin 600cd/m2

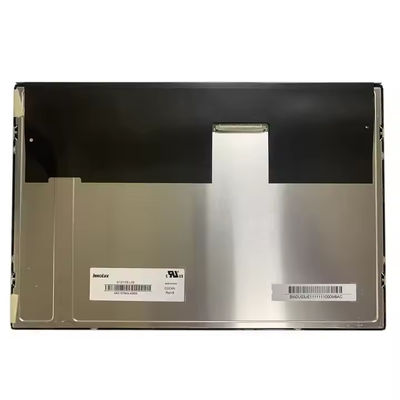

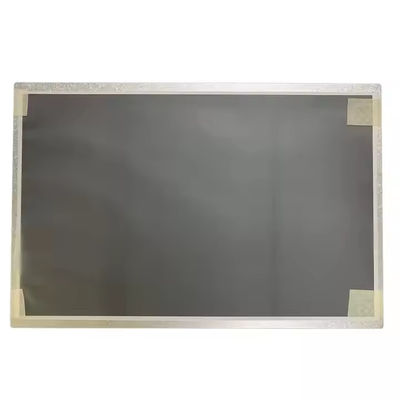

Large Image : 12.1 Inch 1280x800 Innolux G121ICE-L01 IPS Industrial LCD Module Display LVDS 30 Pin 600cd/m2

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	AISON
Certification:	ISO9001 / ISO14000/ROHS
Model Number:	G121ICE-L01

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Blister Package/Carton
Delivery Time:	7 working days
Payment Terms:	T/T, Western Union, MoneyGram,Paypal
Supply Ability:	300k/month

Contact Now

12.1 Inch 1280x800 Innolux G121ICE-L01 IPS Industrial LCD Module Display LVDS 30 Pin 600cd/m2

Description

Name:	12.1 Inch Innolux IPS Industrial TFT LCD Display	Resolution:	1280x800
Outline Size:	278(H)×184(V) ×10.5(D) Mm	Active Area:	261.12(W)×163.2(H) Mm
Interface:	LVDS 30PIN	Viewing Angle:	89/89/89/89
Brightness:	600cd/m2	Display Mode:	Normally Black
Viewing Direction:	ALL/IPS	Operating Temp:	-30 ~ 80 °C
Storage Temp:	-30 ~ 85 °C
Highlight:	12.1 Inch Industrial LCD , Industrial LCD Module Display , Innolux G121ICE-L01

12.1 Inch 1280x800 Innolux G121ICE-L01 IPS Industrial LCD Module Display LVDS 30 Pin 600cd/m2

General Description

Innolux Corporation (hereafter called Innolux) G121ICE-L01 is a 12.1 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -30 ~ 80°C , a storage temperature range of -30 ~ 85°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized in the following: Wide Temperature, Hight Brightness, WLED Backlight, Life ≥ 50K hours, With LED Driver, 6/8 bit, Matte . Based on its features, Panelook recommend that this model be applied to Industrial etc.

General Data

Model Name	Innolux 12.1 inch TFT Display G121ICE-L01
Resolution	1280x800
Model Size (WHT)	278(W)×184(H)×10.5(D) mm
Display Area (W*H)	261.12(W)×163.2(H) mm
Interface	LVDS
Display Mode	Normally Black,Transmissive
Viewing	IPS
Brightness	400 cd/m2
Pin number	30 pin
Contrast Ratio	1000:1
Operating temperatures	-20 ~ 70 °C
Storage temperatures	-20 ~ 70 °C

Product Details

12.1 Inch 1280x800 Innolux G121ICE-L01 IPS Industrial LCD Module Display LVDS 30 Pin 600cd/m2 0

TFT Applications:

The 12.1 inch Innolux displays G121ICE-L01 G121ICE-L02 are suitable for Industrial application.

12.1 Inch 1280x800 Innolux G121ICE-L01 IPS Industrial LCD Module Display LVDS 30 Pin 600cd/m2 2
