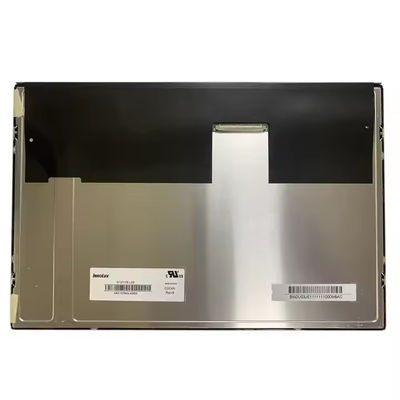

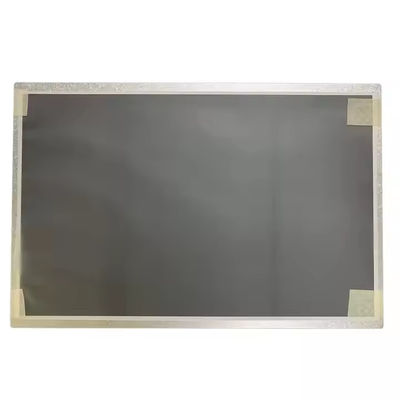

12.1 Inch 1280x800 Innolux IPS Industrial TFT LCD Display LVDS Interface G121ICE-L01 G121ICE-L02

Large Image : 12.1 Inch 1280x800 Innolux IPS Industrial TFT LCD Display LVDS Interface G121ICE-L01 G121ICE-L02

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	AISON
Certification:	ISO9001 / ISO14000/ROHS
Model Number:	G121ICE-L02

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Blister Package/Carton
Delivery Time:	7 working days
Payment Terms:	T/T, Western Union, MoneyGram,Paypal
Supply Ability:	300k/month

Contact Now

12.1 Inch 1280x800 Innolux IPS Industrial TFT LCD Display LVDS Interface G121ICE-L01 G121ICE-L02

Description

Name:	12.1 Inch Innolux IPS Industrial TFT LCD Display	Resolution:	1280x800
Outline Size:	278(W)×184(H)×10.5(D) Mm	Active Area:	261.12(W)×163.2(H) Mm
Interface:	LVDS 30PIN	Viewing Angle:	89/89/89/89
Brightness:	400cd/m2	Display Mode:	Normally Black
Viewing Direction:	ALL/IPS	Operating Temp:	-20 ~ 70 °C
Storage Temp:	-20 ~ 70 °C
Highlight:	G121ICE-L01 Industrial TFT LCD Display , LVDS Interface Industrial TFT LCD Display , 1280x800 Innolux Industrial TFT LCD Display

12.1 Inch 1280x800 Innolux IPS Industrial TFT LCD Display LVDS Interface G121ICE-L01

G121ICE-L02

General Description

The G121ICE-L02 is a 12.1 inch diagonal a-Si TFT-LCD display panel product from Innolux Corporation (hereafter called Innolux), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -20 ~ 70°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized in the following: WLED Backlight, With LED Driver, 6/8 bit, Matte , Digitizer applicable. Based on its features, Panelook recommend that this model be applied to Industrial etc.

General Data

Model Name	Innolux 12.1 inch TFT Display G121ICE-L02
Resolution	1280x800
Model Size (WHT)	278(W)×184(H)×10.5(D) mm
Display Area (W*H)	261.12(W)×163.2(H) mm
Interface	LVDS
Display Mode	Normally Black,Transmissive
Viewing	IPS
Brightness	400 cd/m2
Pin number	30 pin
Contrast Ratio	1000:1
Operating temperatures	-20 ~ 70 °C
Storage temperatures	-20 ~ 70 °C

Product Details

12.1 Inch 1280x800 Innolux IPS Industrial TFT LCD Display LVDS Interface G121ICE-L01 G121ICE-L02 0

TFT Applications:

The 12.1 inch Innolux displays G121ICE-L01 G121ICE-L02 are suitable for Industrial application.

12.1 Inch 1280x800 Innolux IPS Industrial TFT LCD Display LVDS Interface G121ICE-L01 G121ICE-L02 2

Innolux 2025 Industrial control lcd modules
Size	Part #	Resolution	Screen ratio	Brightness	Operating temp	B/L Lifetime	Other Specs
7	G070ACE-L01	800*480	15:9	500	-30~85	50K	800:1, LVDS,72%,Outline:170(H)x110(V)x6(T)mm
7	G070ACE-LH1	800*480	15:9	1000	-30~85	50K	800:1, LVDS,58%
10.1	G101ICE-LH1	1280*800	16:10	500	-30~80	50K	800:1, LVDS,72%,Vin 5V,Reverse scan
10.4	G104ACE-LH1	800*600	4:3	400	-30~85	50K	1000:1, LVDS,72%,Vin 5V,Reverse scan
10.4	G104XCE-L01	1024*768	4:3	500	-30~85	50K	1000:1, LVDS,72%,Reverse scan
12.1	G121ACE-LH2	800*600	4:3	600	-30~85	50K	1000:1, LVDS,72%,Reverse scan
	G121ACE-PH1	800*600	4:3		-30~85		1000:1, LVDS(PCBI),72%,Reverse scan,Opencell
	G121XCE-L01	1024*768	4:3	600	-30~85	50K	1000:1, LVDS,72%,Reverse scan
	G121XCE-P01		4:3		-30~85	50K	1000:1, LVDS(PCBI),72%,Reverse scan,Opencell
	G121XCE-LH1		4:3	1300	-30~80	50K	1000:1, LVDS,72%,Reverse scan
	G121ICE-L01	1280*800	16:10	600	-30~80	50K	1000:1, LVDS,72%
	G121ICE-L02		16:10	400	-20~70	30K	1000:1, LVDS,72%
	G121ICE-P01		16:10		-30~80		1000:1, LVDS(PCBI),72%,Opencell
15	G150XNE-L01	1024*768	4:3	500	-30~80	50K	2500:1, LVDS,72%,Reverse scan
	G150XNE-L02		4:3	350	-30~70	50K	2500:1, LVDS,72%,Reverse scan
	G150XNE-L03		4:3	300	-20~70	50K	2500:1, LVDS,72%,Reverse scan
	G150XJE-P01		4:3		-30~80		2500:1, LVDS(PCBI),72%,Reverse scan,Opencell
15.6	G156HCE-E01	1920*1080	16:9	450	0~60	50K	1000:1, eDP,72%
	G156HCE-L01		16:9	450	-30~85	50K	800:1, LVDS,72%,Reverse scan
	N156HCE-P01		16:9		-30~85		800:1, LVDS(PCBI),72%,Reverse scan
	G156HCE-LN1		16:9	350	-20~70	50K	800:1, LVDS,72%
18.5	G185BCE-L01	1366*768	16:9	400	0~60	50K	1000:1, LVDS,72%
23.8	G238HCJ-L01	1920*1080	16:9	350	0~50	30K	1000:1, LVDS,w/o CNV,72%
