Product Details:
|
| LCM Name: | 8.8 Inch Strip Bar Type TFT Display | Pixels: | 1280x320 |
|---|---|---|---|
| Outline Dimension: | 231.8*76.2*6.5mm | AA Size: | 216.96 X 54.24mm |
| Interface Type: | MIPI | Brightness: | 1000cd/m2 |
| Display Mode: | Normally Black | 1: | 1 |
| Storage Temperatures: | -30 To 80 Degree |

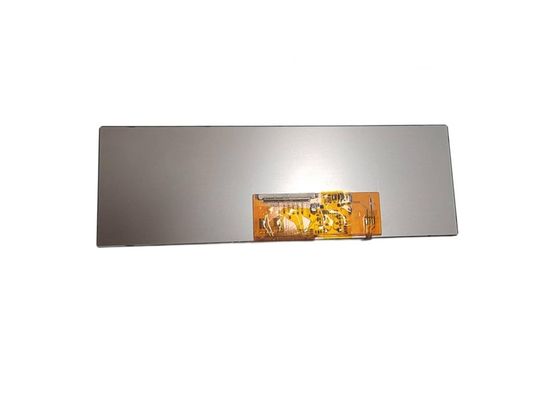

8.8 Inch 1280x320 Strip Bar Type TFT Display MIPI Interface
General Description
The Z088WU03 V1 is an advanced 8.8-inch bar TFT LCD display featuring an IPS panel that delivers exceptional color accuracy and wide viewing angles. With a high resolution of 1280x320 pixels , this ultra-wide 8.8-inch screen is ideal for applications requiring a narrow, elongated display format. With a brightness of 1000 cd/m² and a contrast ratio of 800:1, this display guarantees superior visibility and clarity in diverse lighting conditions.
General Data
| Model Name | 8.8 inch bar type TFT display |
| Resolution | 1280x320 |
| Model Size (W*H*T) | 231.8*76.2*6.5mm |
| Display Area (W*H) | 216.96 x 54.24mm |
| Interface | MIPI |
| Display Mode | Normally Black,Transmissive |
| View Direction |
ALL
|
| Brightness | 1000 cd/m2 |
| Pin number | 30 pin |
|
Contrast Ratio
|
800:1 |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications:
The 8.8 inch bar type lcd module operates in temperatures ranging from -20℃ to +70℃, and can be stored in temperatures from -30℃ to +80℃. This 8.8-inch bar display is particularly ideal for applications such as small-scale digital signage, transportation systems, control panels, and smart devices, where space is limited and a wide, narrow screen is essential. Its ultra-wide aspect ratio makes it well-suited for use in interactive kiosks, point-of-sale systems, status indicators in public spaces, advertising displays, and medical equipment.
