Product Details:
|
| Model: | 2.8 Inch SPI TFT MSP2806 | Resolution: | 240X320 |
|---|---|---|---|
| Module PCB Size: | 50.0x86.0(mm) | LCD Active Area: | 43.2x57.6(mm) |
| LCD Interface: | SPI 4-line | Display Mode: | Normally White |
| Driver Controller: | ILI9341 | Touch Panel: | Without Touch |

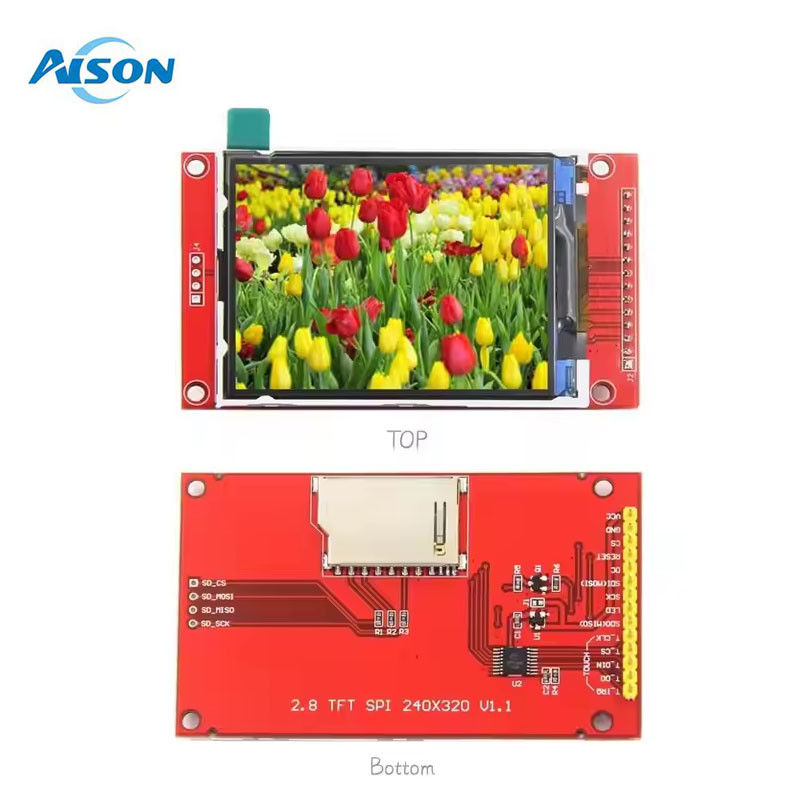

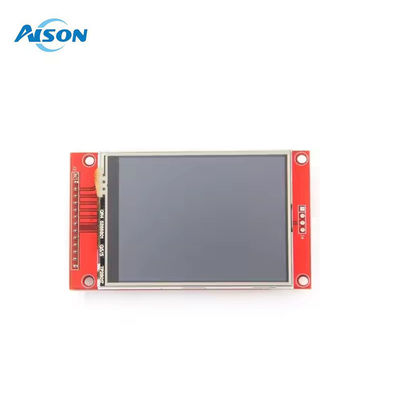

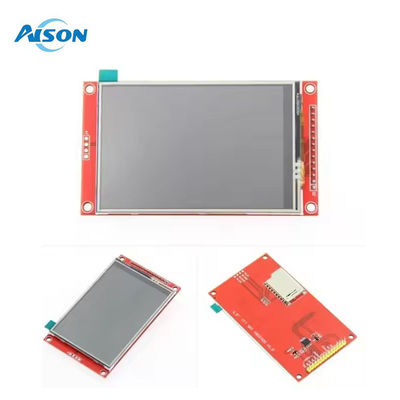

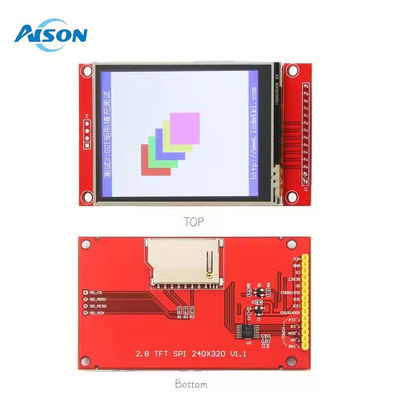

2.8 inch SPI TFT LCD Module 240*320 ILI9341 with PCB Board
Options:
2.2 inch SPI LCD Module without touch;2.2 inch SPI Module display with RTP
2.4 inch SPI LCD Module without touch;2.4 inch SPI Module display with RTP
2.8 inch SPI LCD Module without touch;2.8 inch SPI Module display with RTP
3.2 inch SPI LCD Module without touch;3.2 inch SPI Module display with RTP
3.5 inch SPI LCD Module without touch;3.5 inch SPI Module display with RTP
4.0 inch SPI LCD Module without touch;4.0 inch SPI Module display with RTP
| Name | Parameter |
| Display Color | RGB 65K color |
| SKU | have touch screen: MSP2807 |
| have no touch screen: MSP2806 | |
| Screen Size | 2.8(inch) |
| Type | TFT |
| Driver IC | ILI9341 |
| Resolution | 320*240 (Pixel) |
| Module Interface | 4-wire SPI interface |
| Active Area (AA area) | 43.2x57.6(mm) |
| Module PCB Size | 50.0x86.0(mm) |
| Operating Temperature | -20℃~60℃ |
| Storage Temperature | -30℃~70℃ |
| VCC power voltage | 3.3V~5V |
| Logic IO port voltage | 3.3V(TTL) |
| Power Consumption | TBD |
| Rough Weight(Package containing) | No touch: 34(g) / With touch: 43(g) |
Interface Definition
| Number | Pin Label | Description |
| 1 | VCC | 5V/3.3V power input |
| 2 | GND | Ground |
| 3 | CS | LCD chip select signal, low level enable |
| 4 | RESET | LCD reset signal, low level reset |
| 5 | DC/RS | LCD register / data selection signal,
high level: register, low level: data |
| 6 | SDI(MOSI) | SPI bus write data signal |
| 7 | SCK | SPI bus clock signal |
| 8 | LED | Backlight control, high level lighting,
if not controlled, connect 3.3V always bright |
| 9 | SDO(MISO) | SPI bus read data signal, if you do not need to the read function, you can not connect it |
| (The following is the touch screen signal line wiring, if you do not need to touch function or the module itself does not have touch function, you can not connect them) | ||
| 10 | T_CLK | Touch SPI bus clock signal |
| 11 | T_CS | Touch screen chip select signal, low level enable |
| 12 | T_DIN | Touch SPI bus input |
| 13 | T_DO | Touch SPI bus output |
| 14 | T_IRQ | Touch SPI bus output |
