Product Details:
|
| Item: | 3.5 Inch SPI Resistive Touch Screen | Display Resolution: | 480x320 |
|---|---|---|---|
| PCB Size: | 56.34x98 Mm | LCD Active Area: | 48.96x73.44 Mm |
| LCD Interface: | SPI 4-line | View Angle: | 55/65/65/65 |
| Display Type: | TFT,Normally White | Operating Temperatures: | -20 To 70 Degree |

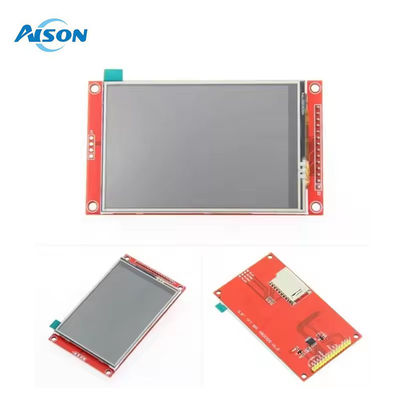

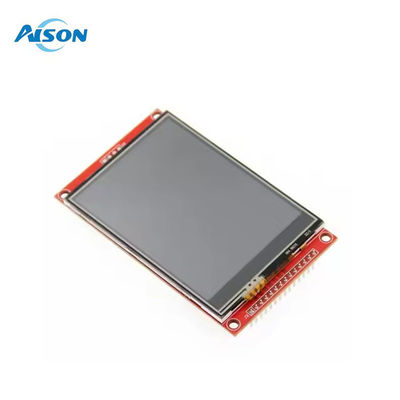

3.5 Inch 480x320 SPI TFT display ILI9488 Driver 4 Wire SPI Resistive Touch Screen Module
Options:
2.2 inch SPI LCD Module without touch;2.2 inch SPI Module display with RTP
2.4 inch SPI LCD Module without touch;2.4 inch SPI Module display with RTP
2.8 inch SPI LCD Module without touch;2.8 inch SPI Module display with RTP
3.2 inch SPI LCD Module without touch;3.2 inch SPI Module display with RTP
3.5 inch SPI LCD Module without touch;3.5 inch SPI Module display with RTP
4.0 inch SPI LCD Module without touch;4.0 inch SPI Module display with RTP
Feature

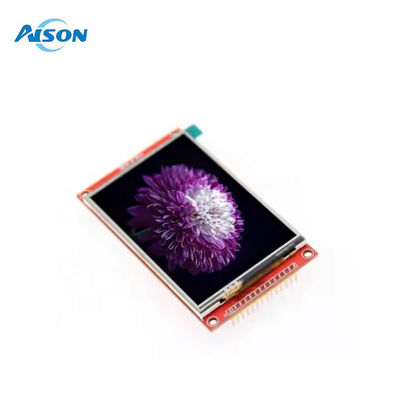

• 3.5-inch color screen,support 65K color display,display rich colors, 480X320 resolution
• Using the SPI serial bus, it only takes a few IOs to illuminate the display
• Easy to expand the experiment with an SD card slot
• Provide a rich sample program
• Military-grade process standards, long-term stable work
• Provide underlying driver technical support
| Name | Parameter |
| Display Color | RGB 65K color |
| SKU | have touch screen: MSP3520 |
| have no touch screen: MSP3521 | |
| Screen Size | 3.5(inch) |
| Type | TFT |
| Driver IC | ILI9488 |
| Resolution | 480*320 (Pixel) |
| Module Interface | 4-wire SPI interface |
| Active Area (AA area) | 48.96x73.44(mm) |
| Module PCB Size | 56.34x98(mm) |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| VCC power voltage | 3.3V~5V |
| Logic IO port voltage | 3.3V(TTL) |
| Power Consumption | About 90mA |

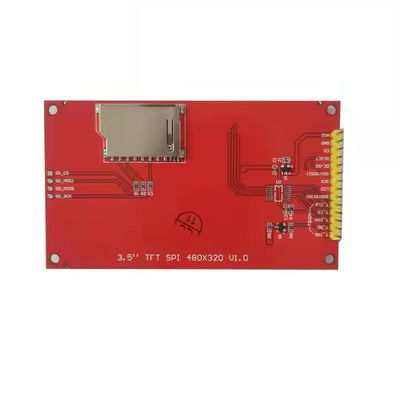

3.5 inch SPI TFT Display Interface Definition
| Number | Pin Label | Description |
| 1 | VCC | 5V/3.3V power input |
| 2 | GND | Ground |
| 3 | CS | LCD chip select signal, low level enable |
| 4 | RESET | LCD reset signal, low level reset |
| 5 | DC/RS | high level: register, low level: data |
| 6 | SDI(MOSI) | SPI bus write data signal |
| 7 | SCK | SPI bus clock signal |
| 8 | LED | if not controlled, connect 3.3V always bright |
| 9 | SDO(MISO) | SPI bus read data signal, if you do not need to the read function, you can not connect it |
| (The following is the touch screen signal line wiring, if you do not need to touch function or the module itself does not have touch function, you can not connect them) | ||
| 10 | T_CLK | Touch SPI bus clock signal |
| 11 | T_CS | Touch screen chip select signal, low level enable |
| 12 | T_DIN | Touch SPI bus input |
| 13 | T_DO | Touch SPI bus output |
| 14 | T_IRQ | Touch screen interrupt signal, low level when touch is detected |
