Product Details:
|
| Name: | 8 Inch IPS TFT LCD Module | Resolution: | 800x600 |
|---|---|---|---|
| Module Dimensions: | 182.9*141*5.5mm | Active Area: | 162*121.5mm |
| Interface: | 24 Bit RGB | Display Type: | IPS |
| Brightness: | 1000cd/m2 | Operating Temperatures: | -20 To 70 Degree |
| Storage Temperatures: | -30 To 80 Degree | Display Mode: | Transmissive |

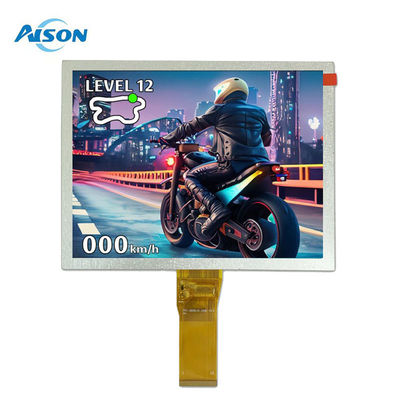

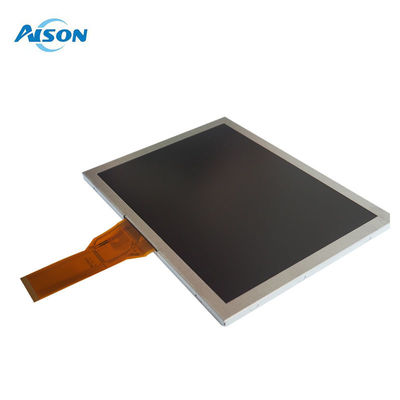

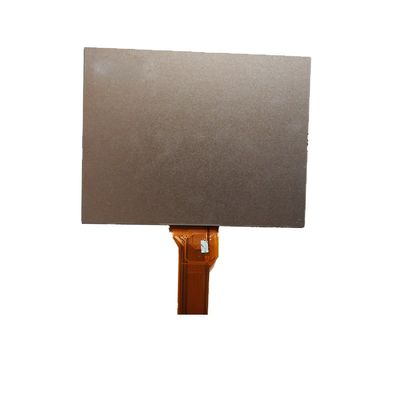

8 inch IPS TFT LCD module 800×600 RGB 24 Bit 50 Pin 1000cd/m2 for Industrial TFT Display
General Description
The 8 inch IPS TFT LCD module, designed to deliver vivid visuals and outstanding 1000 cd/m² brightness.
ZT080WS04 is an 8 inch TFT LCD display module with a resolution of 800x600 pixels, an aspect ratio of 4:3, a high brightness of 1000 nits (typical value), and a contrast ratio of 800:1. The lcd module has an active area size of 183x141 mm and an outline dimension of 182.9*141*5.5mm.
The 8 inch 800x600 IPS lcd module can be operating at temperatures from -20℃ to +70℃ and storage temperatures from -30℃ to +80℃. This 8 inch tft module is built to withstand diverse environmental conditions. The ZT080WS04 is a high-quality TFT LCD display module that offers excellent display performance and durability, making it an ideal choice for a wide range of applications, including embedded systems,car,mp4,gps,industrial device,security and hand-held equipment which requires display in high quality and colorful image.It supports rgb interface. FPC with zif connector is easily to assemble or remove.
General Data
| Model Name | 8 inch IPS TFT Display |
| Resolution | 800X600 |
| Model Size (W*H*T)mm |
182.9*141*5.5 mm
|
| Display Area (W*H)mm |
183x141x6mm
|
| Interface | 24 Bit RGB |
| Display Mode | Normally Black,Transmissive |
| Contrast Ratio | 800:1 |
| Brightness | 1000 cd/m2 |
|
Driver IC |
JD9165A-A3 |
| Viewing Angle | 80/80/80/80 |
| BACKLIGHT TYPE | 27 WHITE LED |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications:
This 8 inch 4:3 TFT LCD module is versatile and suitable for a wide range of applications:
Including embedded systems, industrial devices, security systems, medical equipment, consumer electronics, and handheld devices. Its adaptability and compatibility make it an excellent choice for a wide range of projects.
