Product Details:
|
| Name: | 3.5 Inch Portrait MIPI TFT LCD Module | Resolution: | 320x480 |
|---|---|---|---|
| Outline Dimension: | 54.86*83.43*4.1mm | Active Area: | 48.96 X 73.44mm |
| Interface: | MIPI | Brightness: | 200 Cd/m2 |
| Display Mode: | TFT,Normally White | Driver IC: | ST7365P |
| Operating Temperatures: | -20 To 70 Degree | Storage Temperatures: | -30 To 80 Degree |

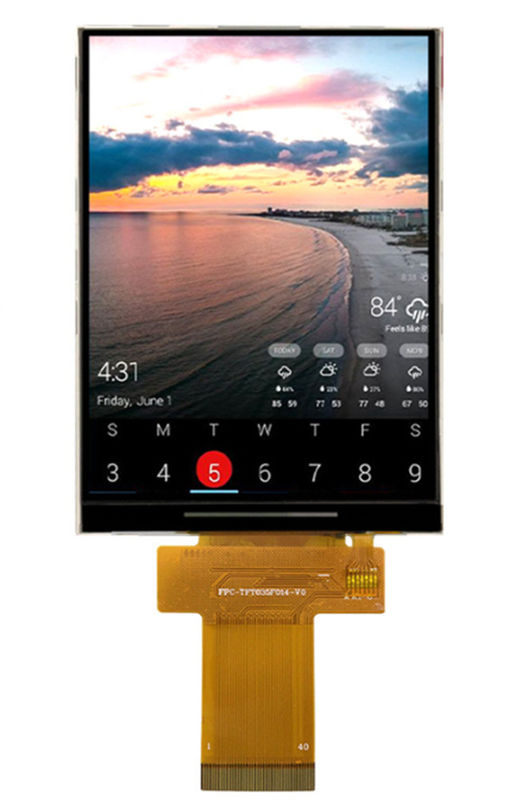

3.5 inch Portrait 320x480 IPS TFT LCD Module MCU/RGB Interface
Z035HV19-CT is a 3.5-inch TFT LCD module with an TN panel with Capacitive touch screen. This module is integrated with the ST7365P driver IC, supporting MIPI interfaces,with a typical brightness of 200 nits and a contrast ratio of 500:1.
This 3.5 inch 320x480 display MIPI TFT LCD, providing a clear and crisp visual experience for various applications.
The 3.5'' IPS panel is with a typical range of Left: 65°, Right: 55°, Up: 65°, and Down: 65°,IPS viewing is optional. The Z035HV19-CT can operate in temperatures ranging from -20℃ to +70℃, and its storage temperature range is from -30℃ to +80℃.
General Data
| Product Name | 3.5 inch Portrait LCD Module |
| Number of Pixel | 320x480 |
| Interface | MIPI |
| Luminance(cd/m2) | 200 cd/m2 |
| Active area | 48.96 x 73.44mm |
| LCM (W x H x D) | 54.86*83.43*4.1mm |
| Viewing Direction(eye) | 12 o'clock |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
TFT Applications
Overall, Z035HV19-CT is a versatile and high-performance display screen that is suitable for a wide range of applications, including industrial control systems, home automation, and portable electronics.
