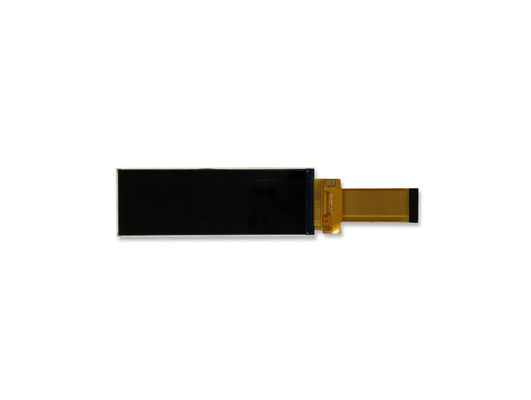

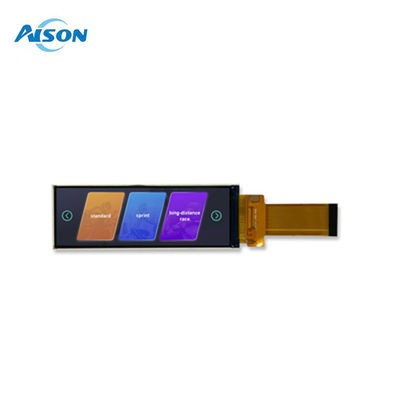

Bar Type LCD TFT Display 180x640 with 25.72*83.83*2.1mm Outline Dimension and MCU 8 Bit Interface

Bar Type LCD TFT Display 180x640 with 25.72*83.83*2.1mm Outline Dimension and MCU 8 Bit Interface
Bar Type LCD TFT Display 180x640 with 25.72*83.83*2.1mm Outline Dimension and MCU 8 Bit Interface Bar Type LCD TFT Display 180x640 with 25.72*83.83*2.1mm Outline Dimension and MCU 8 Bit Interface

Large Image :  Bar Type LCD TFT Display 180x640 with 25.72*83.83*2.1mm Outline Dimension and MCU 8 Bit Interface

Product Details:
Place of Origin: Guangdong,China
Brand Name: AISON
Certification: ISO9001 / ISO14000/ROHS
Model Number: Z0338VG01
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Blister Package/Carton
Delivery Time: 7 working days
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 100k/month
Contact Now

Bar Type LCD TFT Display 180x640 with 25.72*83.83*2.1mm Outline Dimension and MCU 8 Bit Interface

Description
Name: 3.38 Inch Bar Type TFT Resolution: 180x640
Outline Dimension: 25.72*83.83*2.1mm Active Area: 23.22*82.56mm
Interface: MCU 8 Bit Viewing Angle: 80/80/80/80
Brightness: 300 Cd/m2 Display Mode: Normally Black
Operating Temperatures: -20 To 70 Degree Storage Temperatures: -30 To 80 Degree
Highlight:

180x640 LCD TFT Display

,

Bar Type LCD TFT Display

3.38 inch Bar Type LCD TFT Display 180x640 MCU Interface





General Description

Z0338VG01 is a stretched bar-type 3.38 inch IPS TFT display, featuring a sharp resolution of 180x640 pixels with MCU 8 bit interface. With an impressive contrast ratio of 1000:1, it excels in rendering deep blacks and vibrant colors, ensuring a visually striking experience. The IPS technology allows full viewing angle.



This 3.38 inch stretched bar-type displays operates in temperatures ranging from -20℃ to +70℃, and can be stored in temperatures from -30℃ to +80℃. This bar TFT is perfect for electric vehicle dashboards and coffee machines, where a high-definition display is essential for clear navigation and monitoring.



General Data



1.Size: 3.38 inch
2.Resolution :180(horizontal)*640(Vertical)
3.Interface: MCU 8BIT
4.Connect type :Connector
5.Color Depth: 16.7M
6.Technology type: a-Si
7.Pixel pitch (mm) :0.43x0.129
8.Pixel Configuration: R.G.B. Vertical Stripe
9.Display Mode: Normally Black
10.Luminance:300cd/m2

11.Viewing Direction: ALL
12.LCM (W x H x D) (mm): 25.72*83.83*2.1
13.Active Area(mm): 23.22*82.56
14.LED Numbers 4 LED







Drawing



Bar Type LCD TFT Display 180x640 with 25.72*83.83*2.1mm Outline Dimension and MCU 8 Bit Interface 0





Product Details



Bar Type LCD TFT Display 180x640 with 25.72*83.83*2.1mm Outline Dimension and MCU 8 Bit Interface 1





TFT Applications:

This 3.38 inch Bar Type TFT-LCD displays are perfect for industrial equipment, automotive application, server system, POS system, dynamic information displays and advertising display.

Bar Type LCD TFT Display 180x640 with 25.72*83.83*2.1mm Outline Dimension and MCU 8 Bit Interface 2
