Product Details:
|
| Name: | 3.38 Inch Bar Type TFT | Resolution: | 180x640 |
|---|---|---|---|
| Outline Dimension: | 25.72*83.83*2.1mm | Active Area: | 23.22*82.56mm |
| Interface: | MCU 8 Bit | Viewing Angle: | 80/80/80/80 |
| Brightness: | 300 Cd/m2 | Display Mode: | Normally Black |
| Operating Temperatures: | -20 To 70 Degree | Storage Temperatures: | -30 To 80 Degree |

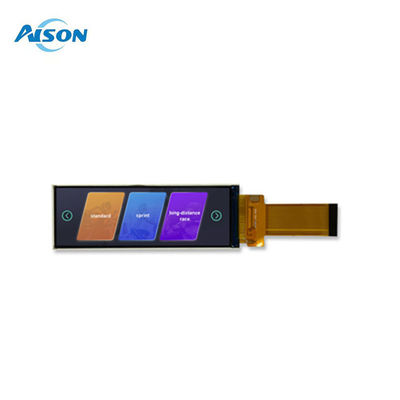

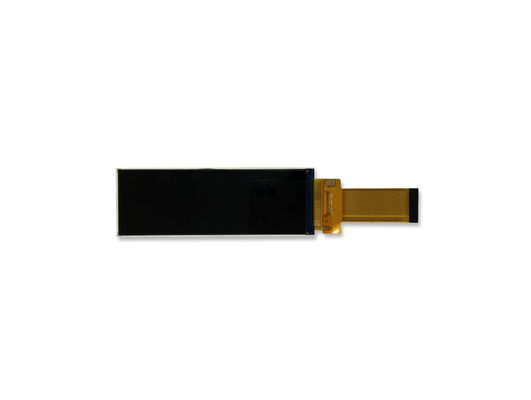

3.38 inch Bar Type LCD TFT Display 180x640 MCU Interface
General Description
Z0338VG01 is a stretched bar-type 3.38 inch IPS TFT display, featuring a sharp resolution of 180x640 pixels with MCU 8 bit interface. With an impressive contrast ratio of 1000:1, it excels in rendering deep blacks and vibrant colors, ensuring a visually striking experience. The IPS technology allows full viewing angle.
This 3.38 inch stretched bar-type displays operates in temperatures ranging from -20℃ to +70℃, and can be stored in temperatures from -30℃ to +80℃. This bar TFT is perfect for electric vehicle dashboards and coffee machines, where a high-definition display is essential for clear navigation and monitoring.
General Data
1.Size: 3.38 inch
2.Resolution :180(horizontal)*640(Vertical)
3.Interface: MCU 8BIT
4.Connect type :Connector
5.Color Depth: 16.7M
6.Technology type: a-Si
7.Pixel pitch (mm) :0.43x0.129
8.Pixel Configuration: R.G.B. Vertical Stripe
9.Display Mode: Normally Black
10.Luminance:300cd/m2
11.Viewing Direction: ALL
12.LCM (W x H x D) (mm): 25.72*83.83*2.1
13.Active Area(mm): 23.22*82.56
14.LED Numbers 4 LED
Drawing
Product Details
TFT Applications:
This 3.38 inch Bar Type TFT-LCD displays are perfect for industrial equipment, automotive application, server system, POS system, dynamic information displays and advertising display.
