Product Details:
|
| Name: | Tianma 10.1 Inch LCD Display | Resolution: | 1280x800 |
|---|---|---|---|
| Module Size: | 230.7(W)×152.55(H)×6.8(D) Mm | Active Area: | 216.96(W)×135.6(H) Mm |
| Interface: | LVDS (1 Ch, 6/8-bit) , 40 Pins | Viewing Angle: | 85/85/85/85 |
| Brightness: | 400cd/m2 | Display Mode: | Normally Black |
| Viewing Direction: | ALL/IPS | Operating Temperatures: | -20 ~ 70 °C |
| Storage Temperatures: | -30 ~ 80 °C | ||
| Highlight: | 10.1 Inch LCD Display Module,Industrial TFT LCD Display Module,TM101JDHG40-00 LCD Display Module |
||

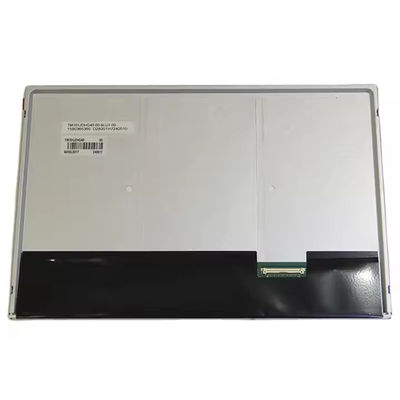

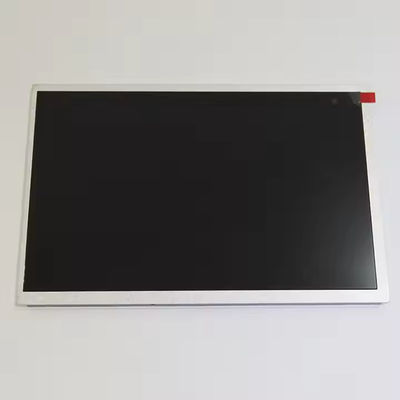

Tianma Original 10.1 Inch TM101JDHG40-00 1280x800 Industrial TFT LCD Display Module
General Data
| Model Name | Tianma 10.1 inch Display Module |
| Resolution | 1280x800 |
| Model Size (W*H*T) | 230.7(W)×152.55(H)×6.8(D) mm |
| Display Area (W*H) | 216.96(W)×135.6(H) mm |
| Interface | LVDS |
| Display Mode | Normally Black,Transmissive |
| Viewing | IPS |
| Brightness | 400 cd/m2 |
| Pin number | 40 pin |
| Contrast Ratio | 800:1 |
| Operating temperatures | -20 ~ 70 °C |
| Storage temperatures | -30 ~ 80 °C |
Drawing
Product Details
TFT Applications:
Tianma TM101JDHG40-00 10.1 inch Wide Industrial TFT Display Screen 1280x800 WXGA Color LCD Module,it is recommend that this model be applied to Industrial, VOIP Phone, Healthcare etc.
